AC Triac RF Dimmer

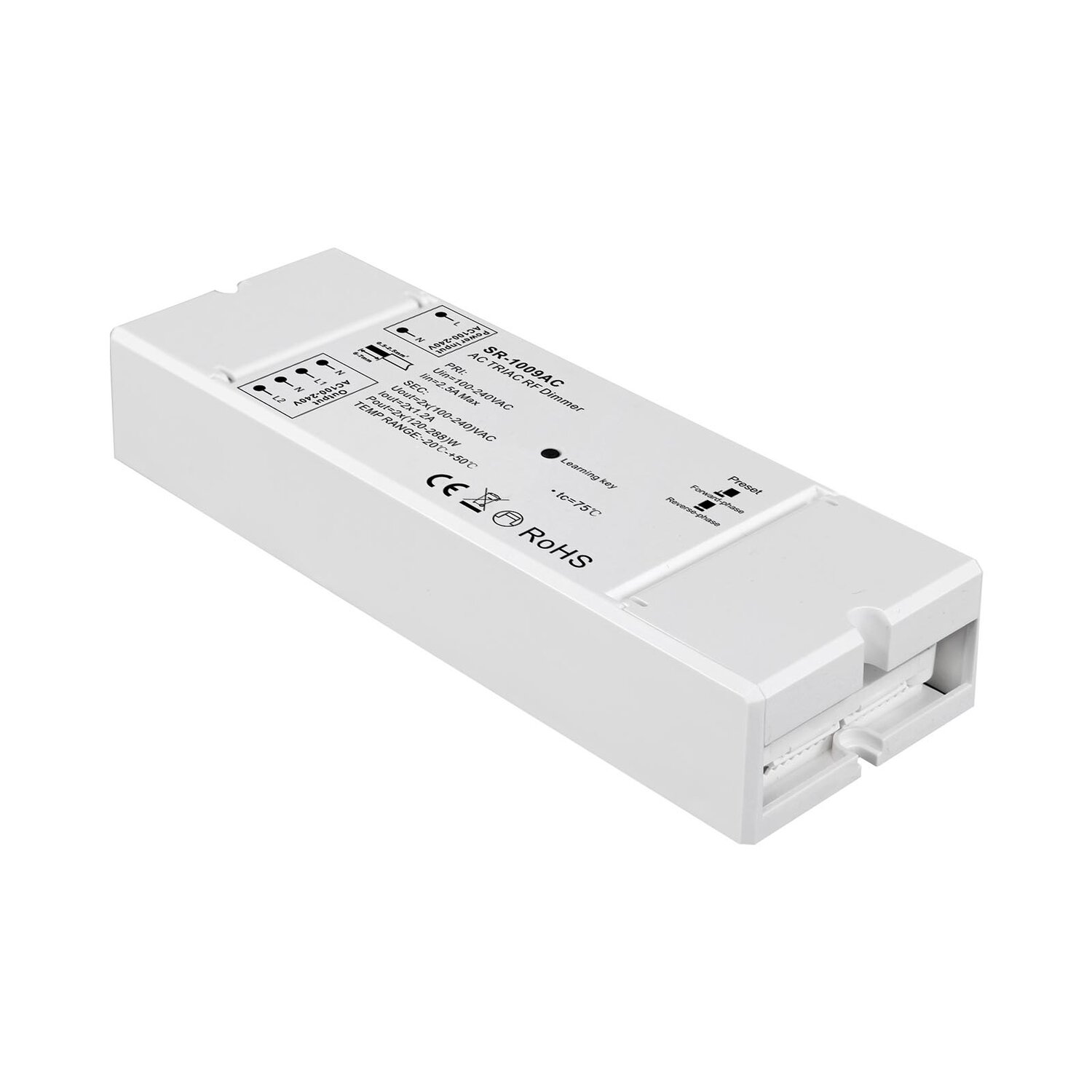

The SR-1009AC is an AC Triac dimmer switch designed with 100-240VAC wide input and output and safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights. The dimmer switch is both triac dimmable and mosfet dimmable and comes with 2 channels and maximum 1.2A per channel output.
The total output power of 2 channels can be up to 576W which enables you to connect enough LED lights. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness.
Also it is easy to delete the minimum brightness. This AC LED dimmer switch adopts popular phase cut dimming technology including both forward phase cut dimming and reverse phase cut dimming.
With built-in RF control interface, this Triac dimmer switch receives RF signal and can be controlled by remote or wall mounted RF senders. It is compatible with a variety of Perfect RF series remote and wall mounted controllers.
While working with a WiFi-RF converter, the AC dimmer can be WiFi controlled via APP installed on Android or IOS mobile devices.
