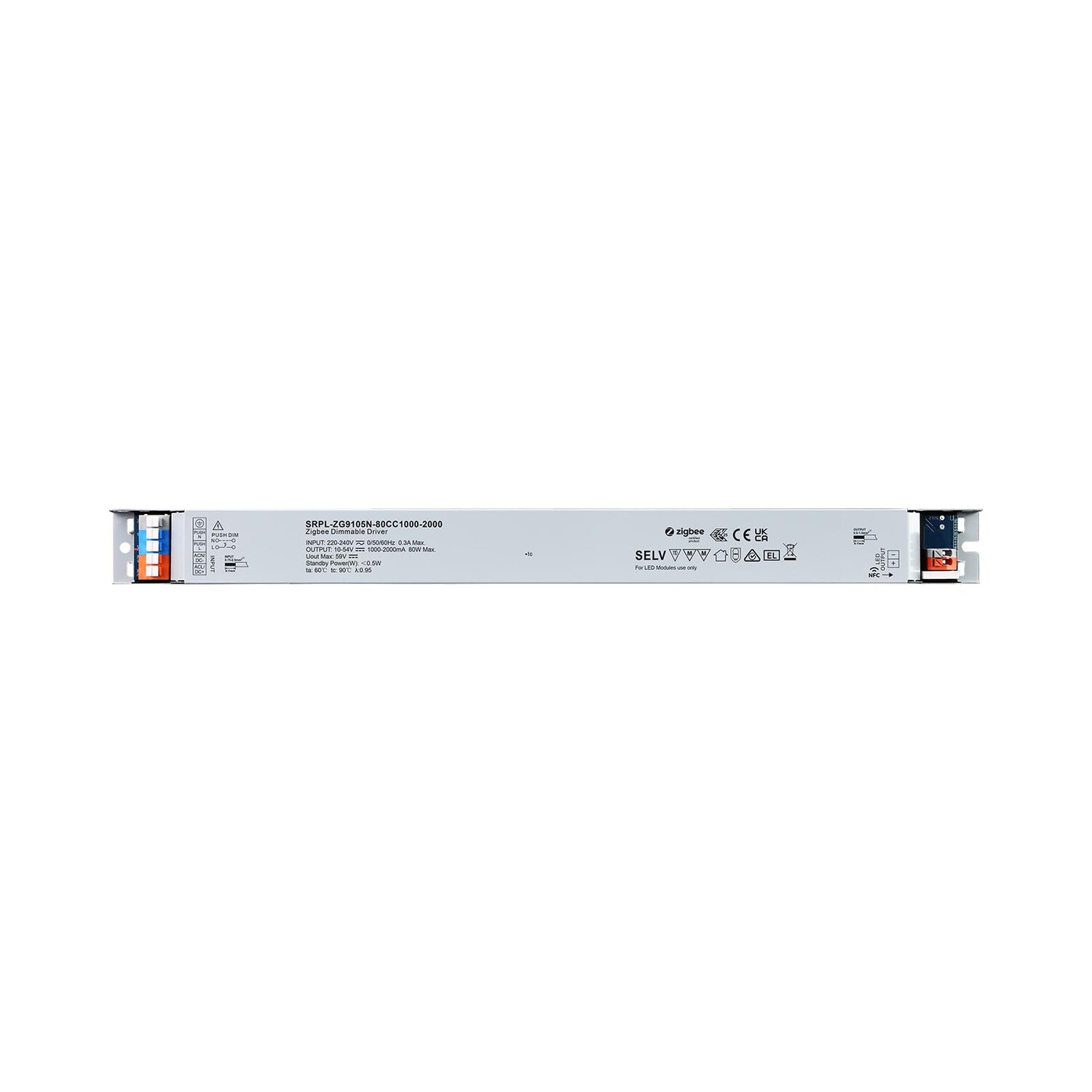

The 80W 1CH Zigbee NFC Enabled LED Driver is a dimmable LED driver that operates based on the Zigbee 3.0 protocol, featuring a linear metal housing and a maximum output power of 80W. It allows current selection between 1000-2000mA via an NFC programming tool, with a minimum current gear adjustment down to 0.1mA. The driver offers dimming curve control, power-on state, soft start, and soft off features through the NFC tool. With a Class II power supply and an isolated design, it ensures high power factor and efficiency. It is designed for switching and dimming LED lighting luminaires, supporting amplitude/CCR dimming for smooth and deep dimming. As a Zigbee end device, it supports Touchlink commissioning and can directly pair with compatible Zigbee remotes via Touchlink. It also supports find and bind mode for Zigbee remote binding and is capable of binding up to 20 Zigbee green power switches. The driver is compatible with universal Zigbee gateway products, making it suitable for indoor LED lighting applications.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 10-54V, Max. 60V |
| Output | Current | 1000-2000mA via NFC setting; Min.current gear lower to 0.1mA,Default 1800mA |
| Output | Current Accuracy | ±3%( ±1%@Certain full load) @ full load |
| Output | Rated Power | Max. 80W |
| Input | Voltage Range | 220-240VAC/ 176-280VDC |
| Input | Frequency Range | 0/50/60Hz |
| Input | Power Factor (Typ.) | > 0.97 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 6% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞88% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.44A Max |
| Input | Inrush Current (Typ.) | Max. 34.4A at 230VAC; 160μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Zigbee |
| Control | Dimming Range | 0.01%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +60℃ |
| Environment | Max. Case Temp | TC=90℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB 19510.1-2009, GB 19510.14-2009 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 355x30x21mm (L*W*H) |
| Others | Warranty | 5 Years |
