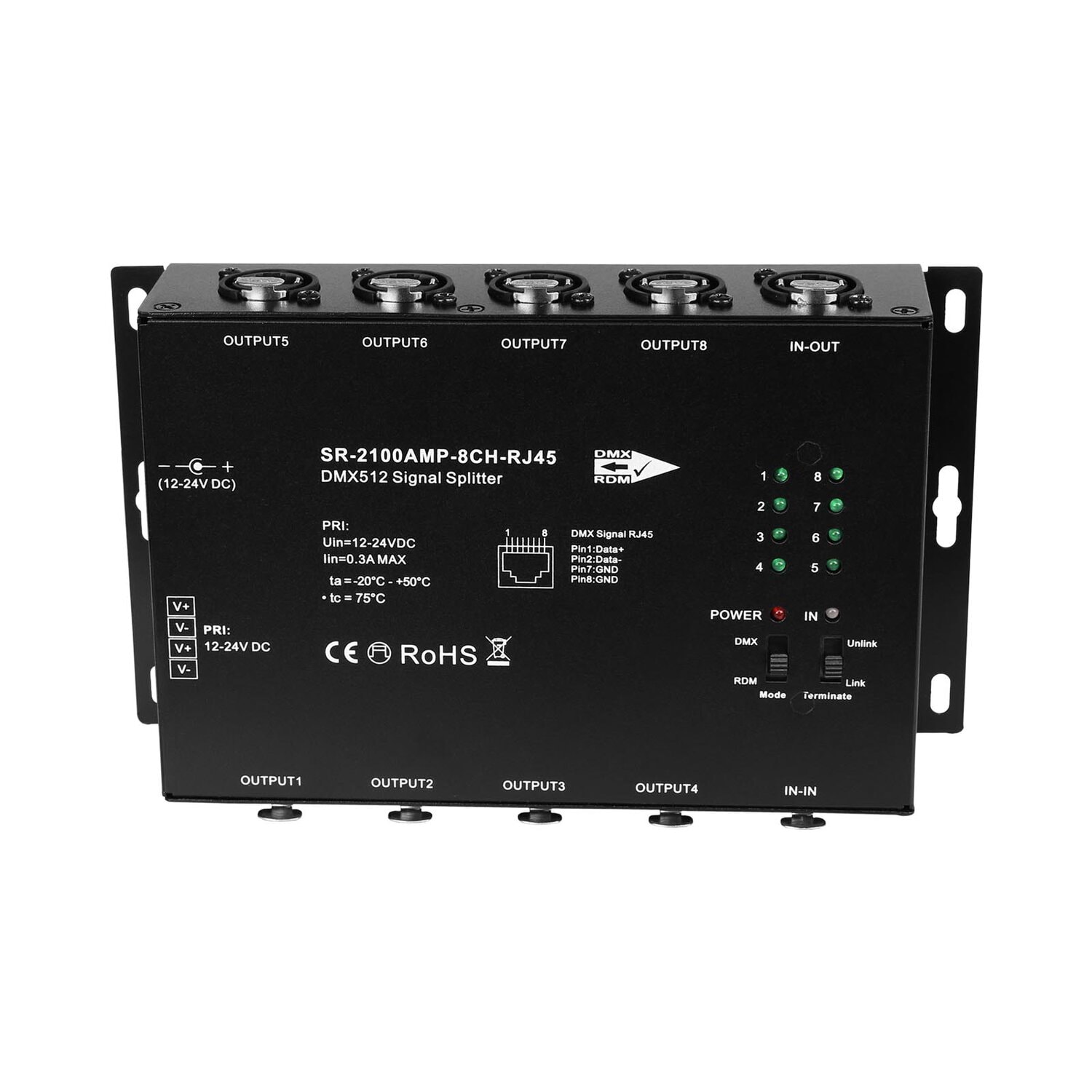

The 8-Way RDM Enabled DMX Splitter is DMX/RDM compatible, with the RDM function being able to be enabled or disabled via a dial switch.
It is RDM enabled and ANSI E1.20 compliant, extending both cable distance (up to 300m) and the number of devices (up to 32 devices per output, with a total of 256 devices). The unit features a plug-and-play design with an RJ45 port DMX input and eight RJ45 port DMX outputs. While the 8 outputs are fully isolated from the input, they are not isolated from each other. Each output provides LED data indicators for full confirmation of proper operation and supports bi-directional communications for discovery, addressing, and DMX control of RDM-enabled devices. A feed-through RJ45 port at the input allows this unit to be placed in the middle of an existing DMX chain.
| No | 1 |
|---|---|
| Input Voltage | 12-24VDC |
| Input Current | Max. 300mA |
| Input Signal | DMX512 |
| DMX512 Connection Ports | Input: (1x) RJ45 Output: (8x) RJ45 |
| DMX Connector Pin Out | Pin1: Data Pin2: Data+ Pin7: Ground Pin8: Ground |
| Size(LxWxH) | 199.4x116x44mm |
| Operation Temperature | -20℃ ~ +50℃ |
