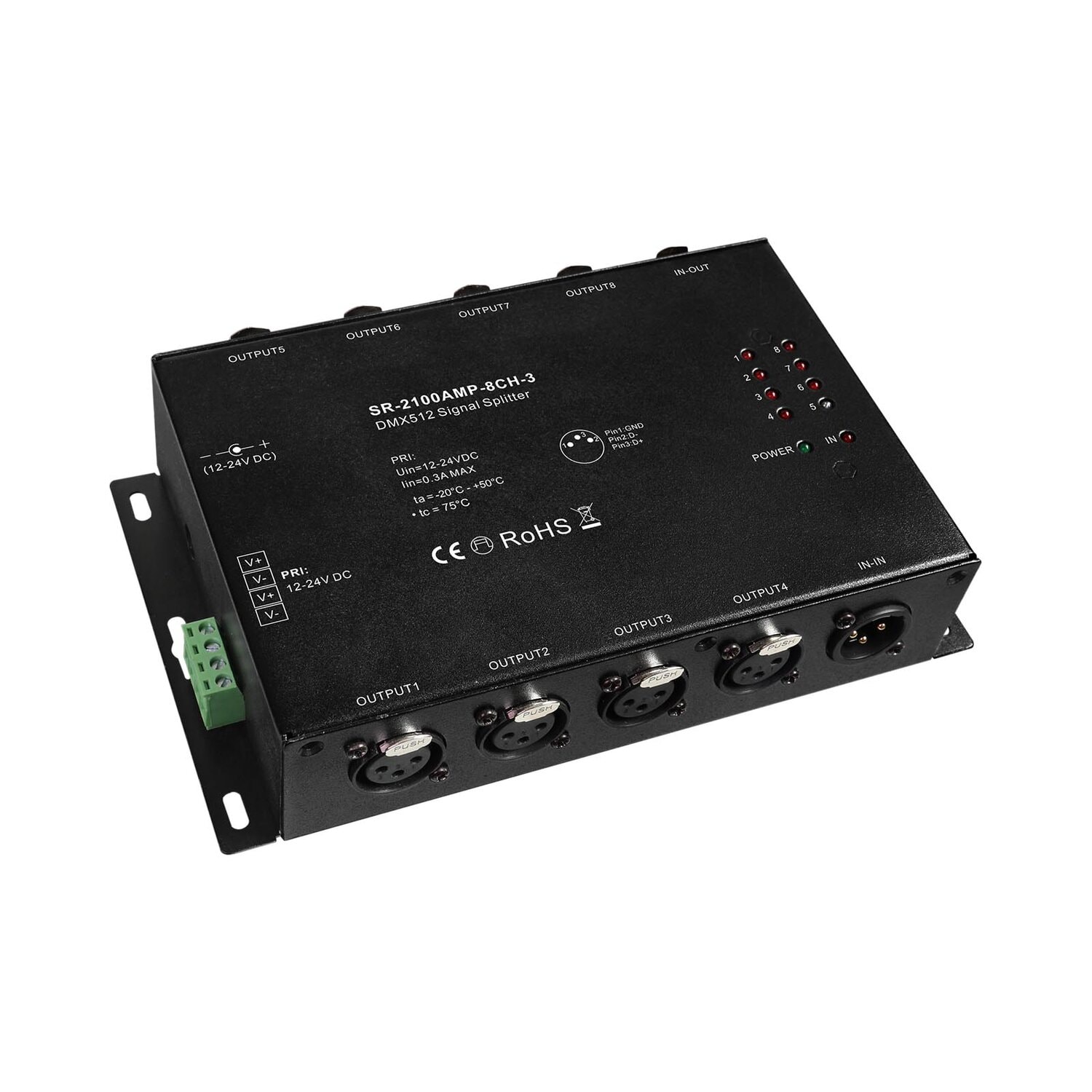

The 8-Way Isolated DMX Splitter is designed to extend both the cable distance (up to 300m) and the number of devices (up to 32 devices per output, with a total of 256 devices). It features plug-and-play functionality with a 3/5-Pin XLR male DMX input and eight XLR female DMX outputs.
Each output is fully isolated from the input and other outputs, ensuring that a fault on one output will not affect the others.
The unit also includes LED data indicators for each output, providing clear confirmation of proper operation, and a feed-through XLR female connector at the input, allowing the unit to be placed in the middle of the setup.
| No | 1 | 2 |
|---|---|---|
| Input Voltage | 12-24VDC | 12-24VDC |
| Input Current | Max. 300mA | Max. 300mA |
| Input Signal | DMX512 | DMX512 |
| DMX512 Connection Ports | Input: (1x) Male 3-Pin xLR Output: (8x) Female 3-Pin xLR |
Input: (1x) Male 5-Pin xLR Output: (8x) Female 5-Pin xLR |
| DMX Connector Pin Out | Pin1: Ground Pin2: Data Pin3: Data+ |
Pin1: Ground Pin2: Data Pin3: Data+ Pin4: NC Pin5: NC |
| Size(LxWxH) | 199x125x44mm | 199x125x44mm |
| Operation Temperature | -20℃ ~ +50℃ | -20℃ ~ +50℃ |
