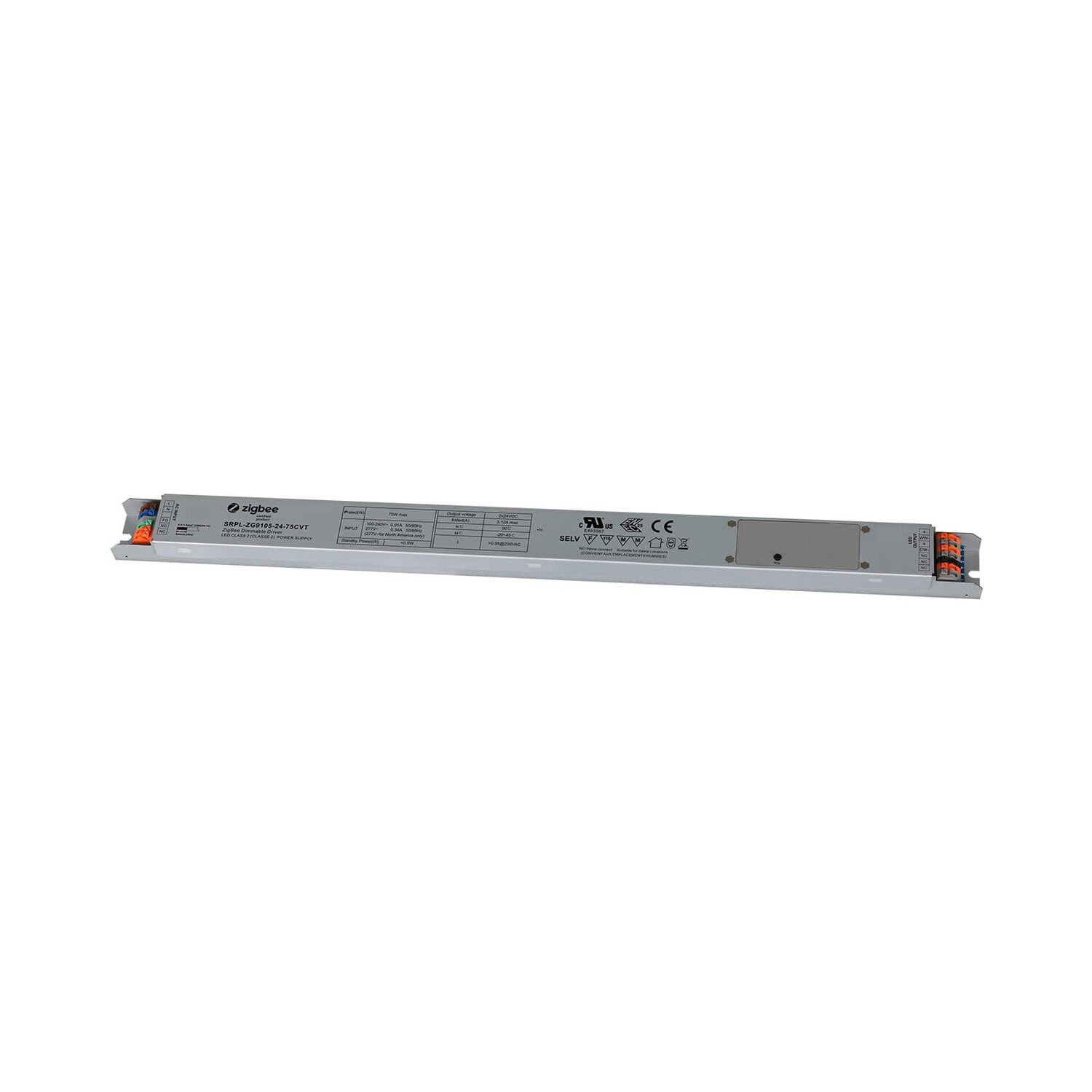

The 75W ZigBee LED Driver is a constant voltage dimmable driver with an ultra-slim design, featuring two 24VDC output channels and a full isolated metal case with built-in active PFC, delivering high performance with power factor over 0.96, efficiency above 86%, and standby power below 0.5W. Based on the Zigbee 3.0 protocol, it enables ON/OFF control, brightness adjustment, and CCT tuning of connected CCT LED lights, supporting deep and smooth dimming down to 0.1%. The driver complies with Safety Extra Low Voltage standards and includes overload and over-temperature protection. It supports Touchlink commissioning, direct pairing with Zigbee remotes without a coordinator, find and bind mode, and can bind with up to 20 Zigbee Green Power remotes, ensuring compatibility with universal Zigbee gateways and CCT remotes.
| Output | LED Channel | 2 |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 3.12A/ch, ch1+ch2=3.12A |
| Output | Voltage Tolerance | ±1% |
| Output | Rated Power | max. 75W |
| Input | Voltage Range | 100-277V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.99 @ 100VAC, > 0.96 @ 230VAC |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | 86% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.9A @ 100VAC, 0.39A @ 230VAC, 0.33A@277VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 2A at 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Input | Standby Power Consumption | < 0.5W |
| Control | Dimming Interface | ZigBee |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 88℃ (Ta=” 45℃ ”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 188700H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
