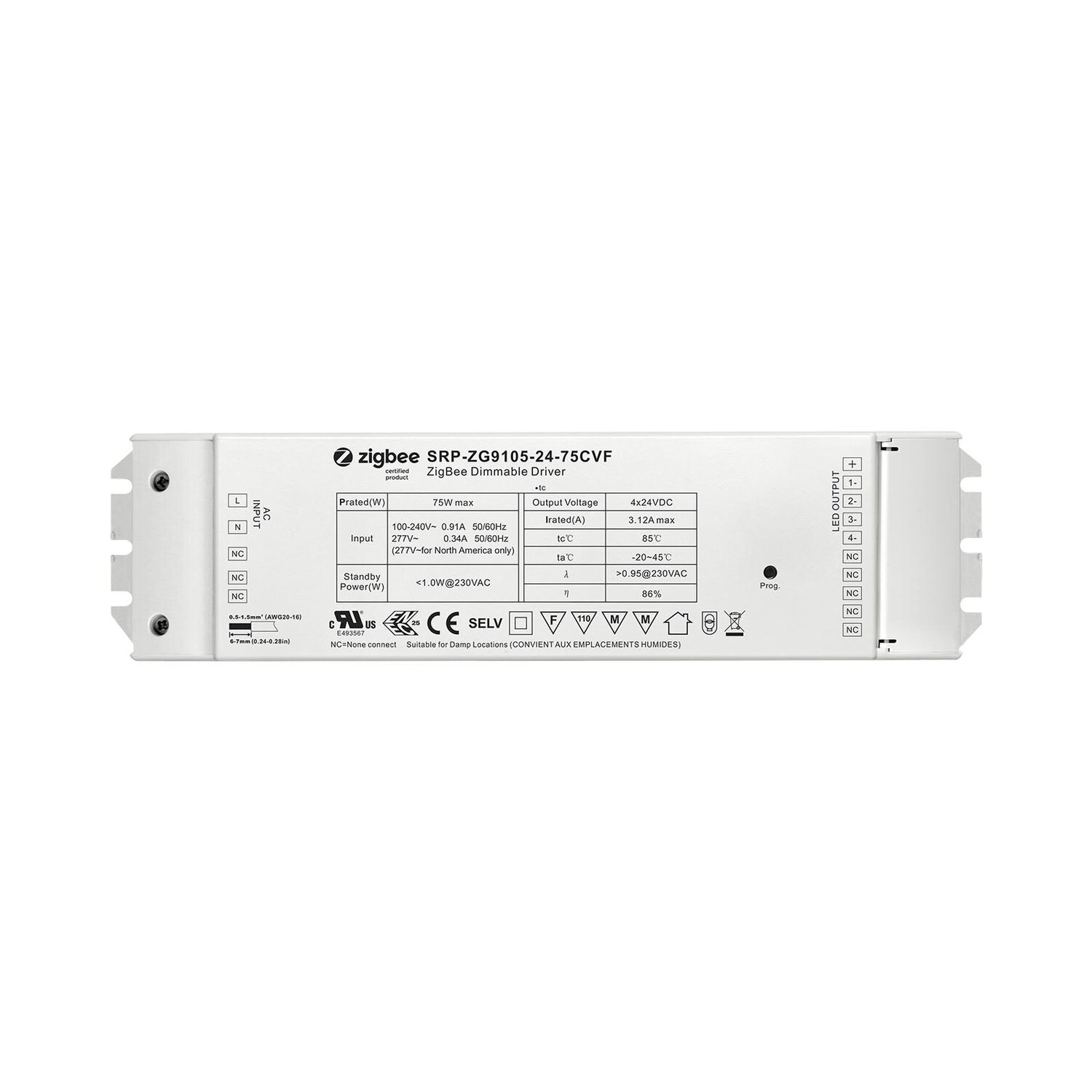

The 75W ZigBee LED Driver is a dimmable LED driver based on the Zigbee 3.0 protocol, featuring four-channel constant voltage output with a total maximum power of 75W at 24VDC. It supports ON/OFF, brightness, and RGB color control, with the white (W) channel operable via the gateway’s color temperature interface or separately through an RGBW Zigbee remote or touch panel’s W button. Housed in a fully isolated Class II plastic case with high power factor and efficiency, it allows direct pairing with compatible Zigbee remotes via Touchlink, supports up to 20 Zigbee green power remotes, and is compatible with universal Zigbee gateway products for indoor LED lighting applications.
| Output | LED Channel | 4 |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 3.12A/ch, ch1+ch2+ch3+ch4=3.12A |
| Output | Voltage Tolerance | ±1% |
| Output | Rated Power | max. 75W |
| Input | Voltage Range | 100-277V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.99 @ 100VAC, > 0.96 @ 230VAC |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | 86% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.9A @ 100VAC, 0.39A @ 230VAC, 0.33A@277VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 2A at 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Input | Standby Power Consumption | < 0.5W |
| Control | Dimming Interface | ZigBee |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 80℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 187900H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
| Others | Dimension | 244*64*32mm (L*W*H) |
