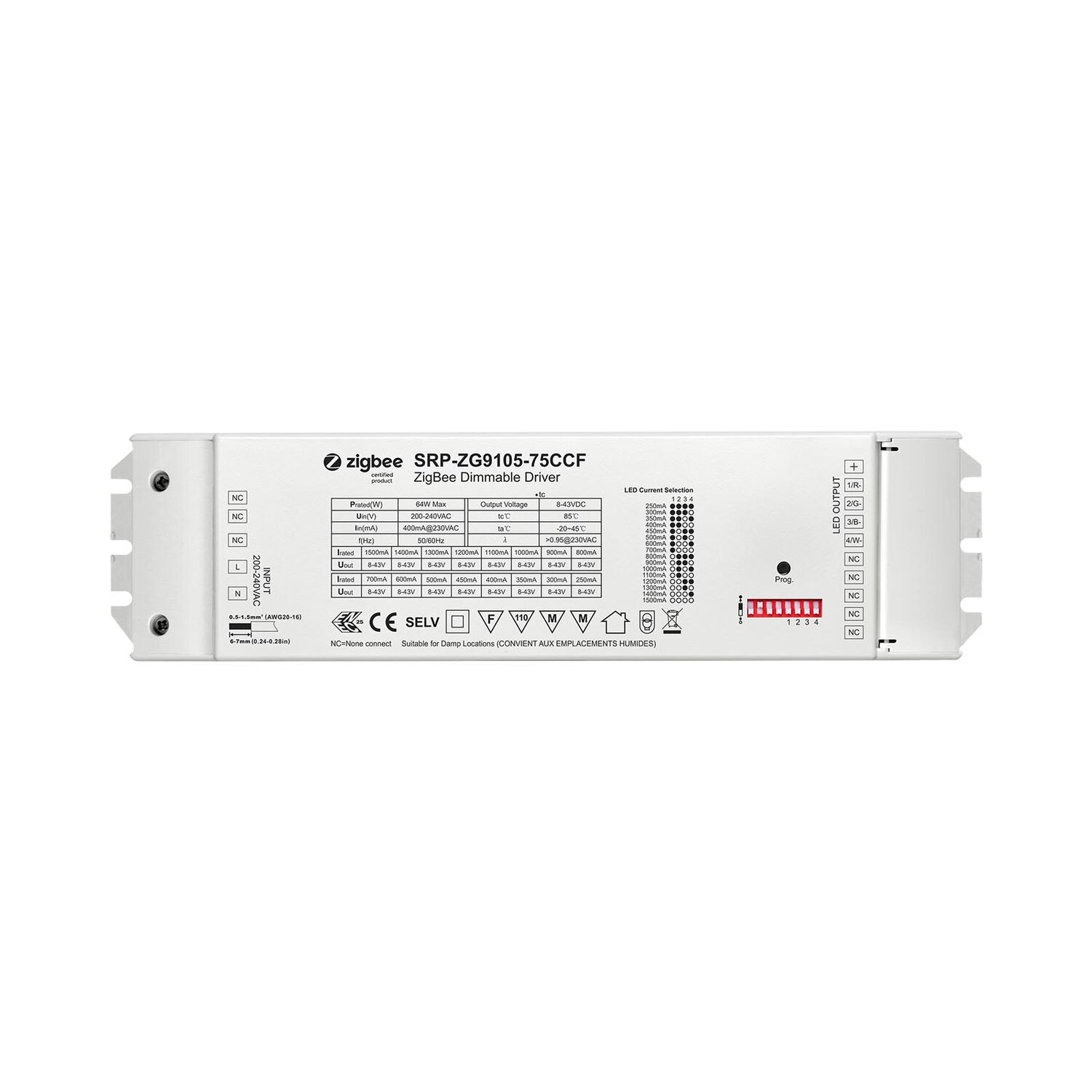

The 64W ZigBee LED Driver is a dimmable LED driver based on the Zigbee 3.0 protocol, featuring a Class power supply with a fully isolated plastic case. With a maximum output power of 75W, it offers four constant current output channels with adjustable current ranging from 300mA to 1500mA, set via dips. The driver ensures high power factor and efficiency, and the W channel can be controlled through the Gateway’s color temperature control interface. Additionally, the W channel can be controlled separately from the RGB channels via an RGBW Zigbee remote or touch panel’s W button. This driver allows control of ON/OFF, light intensity, and RGB color, and can directly pair with a compatible Zigbee remote via Touchlink. It supports Zigbee green power, allowing binding of up to 20 Zigbee green power remotes, and is compatible with universal Zigbee gateway products, making it ideal for indoor LED lighting applications.
| Output | LED Channel | 4 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Output | Selectable Current | 300mA | 350mA | 400mA | 450mA | 500mA | 600mA | 700mA | 800mA |
| Output | DC Voltage Range | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V |
| Output | Selectable Current | 900mA | 1000mA | 1100mA | 1200mA | 1300mA | 1400mA | 1500mA | |
| Output | DC Voltage Range | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | 8-43V | |
| Output | Current Tolerance | ±3% | |||||||
| Output | Rated Power | ≤ Max. 64W/CH, CH1+CH2+CH3+CH4 64W | |||||||
| Input | Voltage Range | 200-240V AC | |||||||
| Input | Frequency Range | 50/60Hz | |||||||
| Input | Power Factor (Typ.) | > 0.9 @ 230VAC | |||||||
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | |||||||
| Input | Efficiency (Typ.) | 87% @ 230VAC full load | |||||||
| Input | AC Current (Typ.) | 400mA @ 230VAC | |||||||
| Input | Inrush Current (Typ.) | COLD START Max. 2A @ 230VAC | |||||||
| Control | Dimming Interface | ZigBee | |||||||
| Control | Dimming Range | 0.1%-100% | |||||||
| Control | Dimming Method | Pulse Width Modulation | |||||||
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed | |||||||
| Protection | Over Voltage | Yes, recovers automatically after fault condition is removed | |||||||
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |||||||
| Environment | Working Temp | -25℃ ~ +45℃ | |||||||
| Environment | Max. Case Temp | 80℃(Ta=”45℃”) | |||||||
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |||||||
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |||||||
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |||||||
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |||||||
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |||||||
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |||||||
| Others | MTBF | 188300H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Others | Dimension | 244*64*32mm (L*W*H) |
