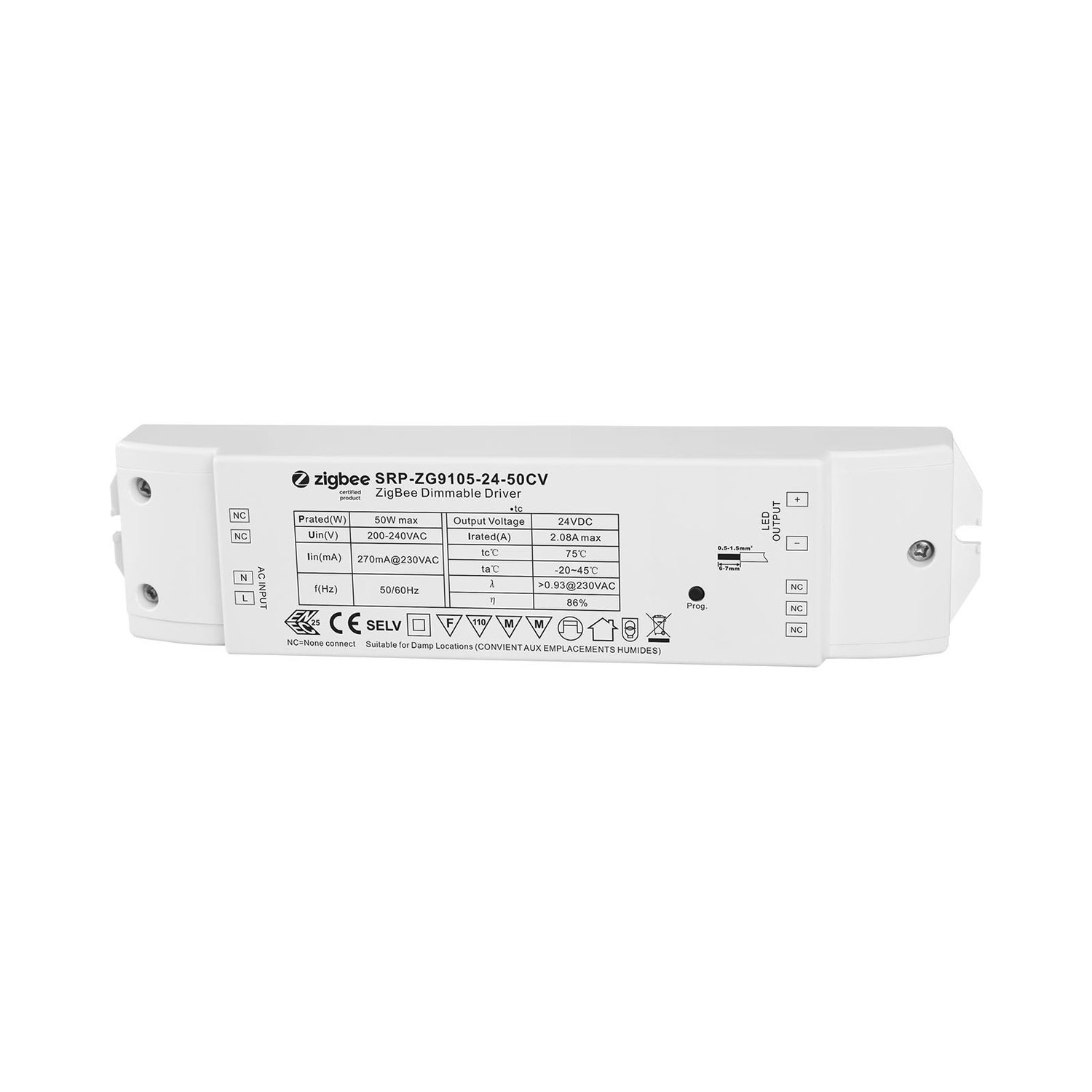

The 50W ZigBee LED Driver is a dimmable constant voltage LED driver based on the Zigbee 3.0 protocol, offering a single-channel 12/24V DC output with a maximum power of 50W. It supports deep, smooth dimming down to 0.1% and allows control of ON/OFF and brightness for connected LED lights. Housed in a fully isolated Class II plastic case with high power factor and efficiency, it functions as a Zigbee end device supporting Touchlink commissioning for direct pairing with compatible remotes, as well as find and bind mode. It also supports Zigbee green power, allowing binding with up to 20 remotes, and is compatible with universal Zigbee gateways and dim remotes.
| Output | DC Voltage | 12V DC | 24V DC |
|---|---|---|---|
| Output | Max. Current | Max. 4.16A | Max. 2.08A |
| Output | Rated Power | max. 50W | |
| Input | Voltage Range | 200-240V AC | |
| Input | Frequency | 50/60Hz | |
| Input | Power Factor (Typ.) | >0.9 | |
| Input | Efficiency (Typ.) | 85% @ 230VAC | 88% @ 230VAC |
| Input | Input Current | 0.27A @ 230VAC | |
| Input | Inrush Current (Typ.) | COLD START Max. 2A @ 230VAC | |
| Protection | Over Current | Yes, auto recovery after fault removed | |
| Protection | Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 190600H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |
| Others | Dimension | 210*50*32mm (L*W*H) |
