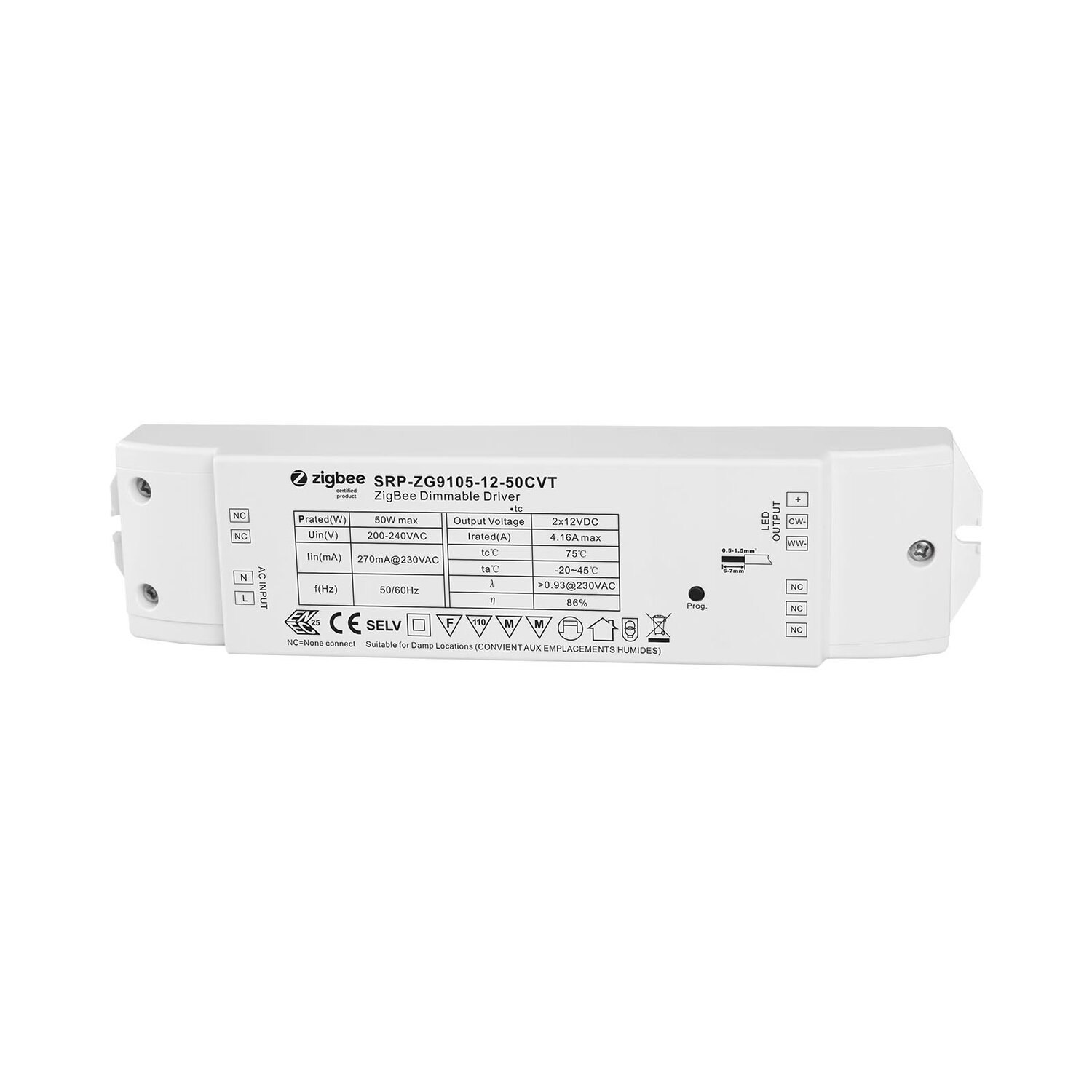

The 50W ZigBee CCT LED Driver is a dimmable constant voltage device based on Zigbee 3.0 protocol, delivering a maximum output power of 50W across two 12/24V DC channels. It enables control of ON/OFF, brightness, and correlated color temperature for connected CCT LED lights, featuring deep and smooth dimming down to 0.1% with high power factor and efficiency. This Class II, fully isolated driver supports Touchlink commissioning for direct pairing with compatible Zigbee remotes, as well as find and bind mode, and can bind up to 20 Zigbee green power remotes. It is compatible with universal Zigbee gateways and CCT Zigbee remotes.
| Output | DC Voltage | 12V DC | 24V DC |
|---|---|---|---|
| Output | Max. Current | Max. 4.16A/ch, ch1+ch2=4.16A | Max. 2.08A/ch, ch1+ch2=2.08A |
| Output | Rated Power | max. 50W | |
| Input | Voltage Range | 200-240V AC | |
| Input | Frequency | 50/60Hz | |
| Input | Power Factor (Typ.) | >0.9 | |
| Input | Efficiency (Typ.) | 85% @ 230VAC | 88% @ 230VAC |
| Input | Input Current | 0.27A @ 230VAC | |
| Input | Inrush Current (Typ.) | COLD START Max. 2A @ 230VAC | |
| Protection | Over Current | Yes, auto recovery after fault removed | |
| Protection | Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 190600H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |
| Others | Dimension | 210*50*32mm (L*W*H) |
