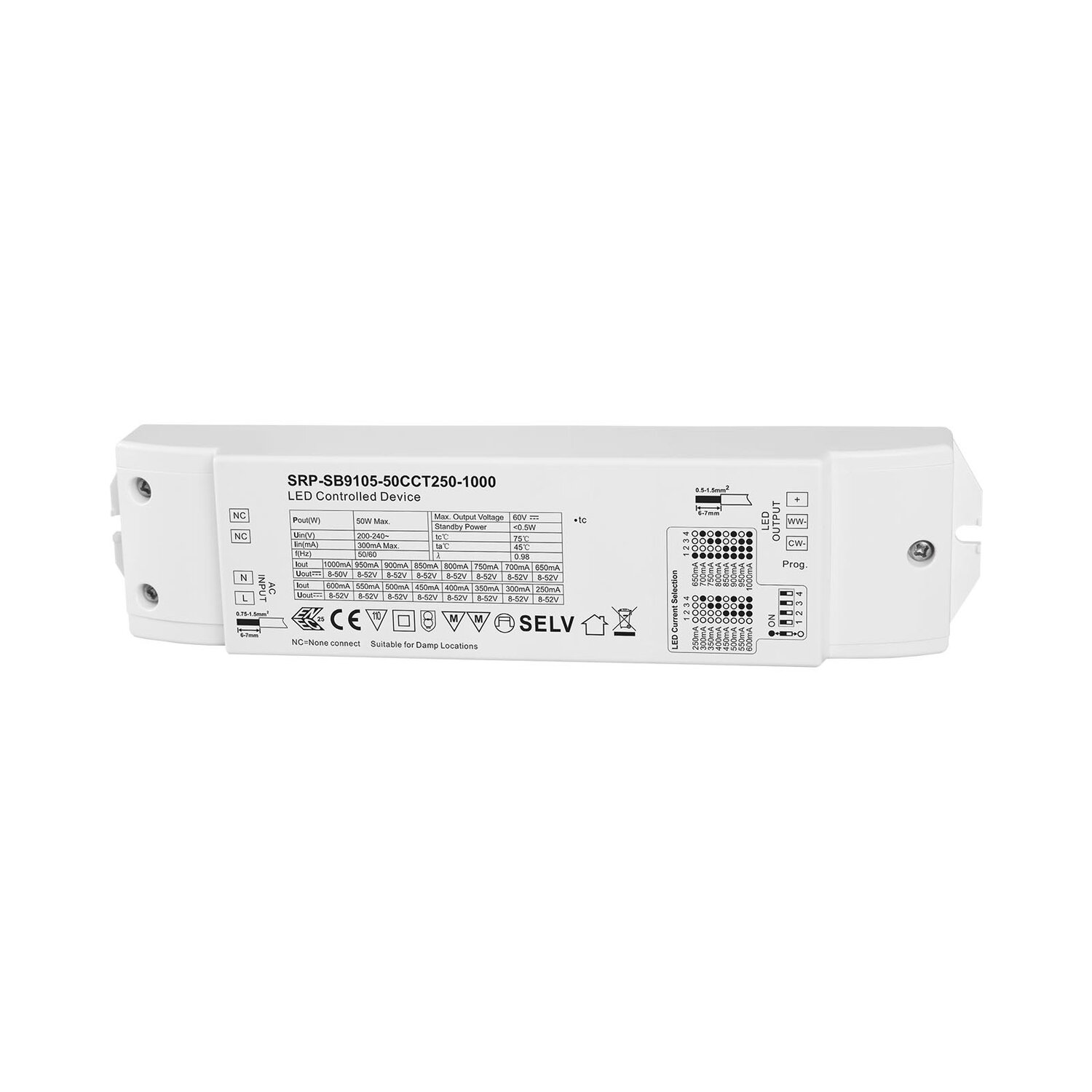

The 50W RF+Bluetooth Dimmable Driver (Constant Current) is an efficient LED driver designed for precise control, offering a dimming range of 0.1%-100% with a maximum output power of 50W. It features two channels with constant current output, and the output current is adjustable from 250-1000mA via dip switches. Equipped with a built-in active PFC function, this driver ensures high power factor and efficiency. It can be controlled through both a smart app and remote controls without requiring a gateway, with a transmission distance of up to 30m between neighboring devices. The encrypted two-way communication provides quick status feedback and secure, reliable data transmission. Compatible with universal RF+Bluetooth remotes, each LED driver can pair with up to 8 remotes, allowing control over the ON/OFF state, light intensity, and color temperature (CCT) of connected CCT LED lights. With a Class 2 power supply and fully isolated plastic case, it is suitable for indoor LED lighting applications.
| Output | LED Channel | 2 | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Output | Selectable Current | 250mA | 300mA | 350mA | 400mA | 450mA | 500mA | 550mA | 600mA |
| Output | DC Voltage Range | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V |
| Output | Selectable Current | 650mA | 700mA | 750mA | 800mA | 850mA | 900mA | 950mA | 1000mA |
| Output | DC Voltage Range | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-52V | 8-50V |
| Output | Current Tolerance | ±5% | |||||||
| Output | Rated Power | Max. 50W | |||||||
| Input | Voltage Range | 200-240V AC | |||||||
| Input | Frequency Range | 50/60Hz | |||||||
| Input | Power Factor (Typ.) | > 0.97 | |||||||
| Input | Total Harmonic Distortion | ≤ THD 8% (@ full load / 230VAC) | |||||||
| Input | Efficiency (Typ.) | 87% @ 230VAC full load | |||||||
| Input | AC Current (Typ.) | 0.27A @ 230VAC | |||||||
| Input | Inrush Current (Typ.) | COLD START Max. 8A at 230VAC | |||||||
| Input | Leakage Current | < 0.5mA /230VAC | |||||||
| Control | Dimming Interface | RF+Bluetooth® | |||||||
| Control | Dimming Range | 0.1%-100% | |||||||
| Control | Dimming Method | Amplitude dimming (PWM dimming under 1%) | |||||||
| Control | Dimming Curve | Logarithmic/ Linear | |||||||
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed | |||||||
| Protection | Over Voltage | Yes, recovers automatically after fault condition is removed | |||||||
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |||||||
| Environment | Working Temp | -20℃ ~ +45℃ | |||||||
| Environment | Max. Case Temp | 75℃(Ta=”45℃”) | |||||||
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |||||||
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |||||||
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |||||||
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |||||||
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |||||||
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11 | |||||||
| Others | MTBF | 191300H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Others | Dimension | 210*50*32mm (L*W*H) |
