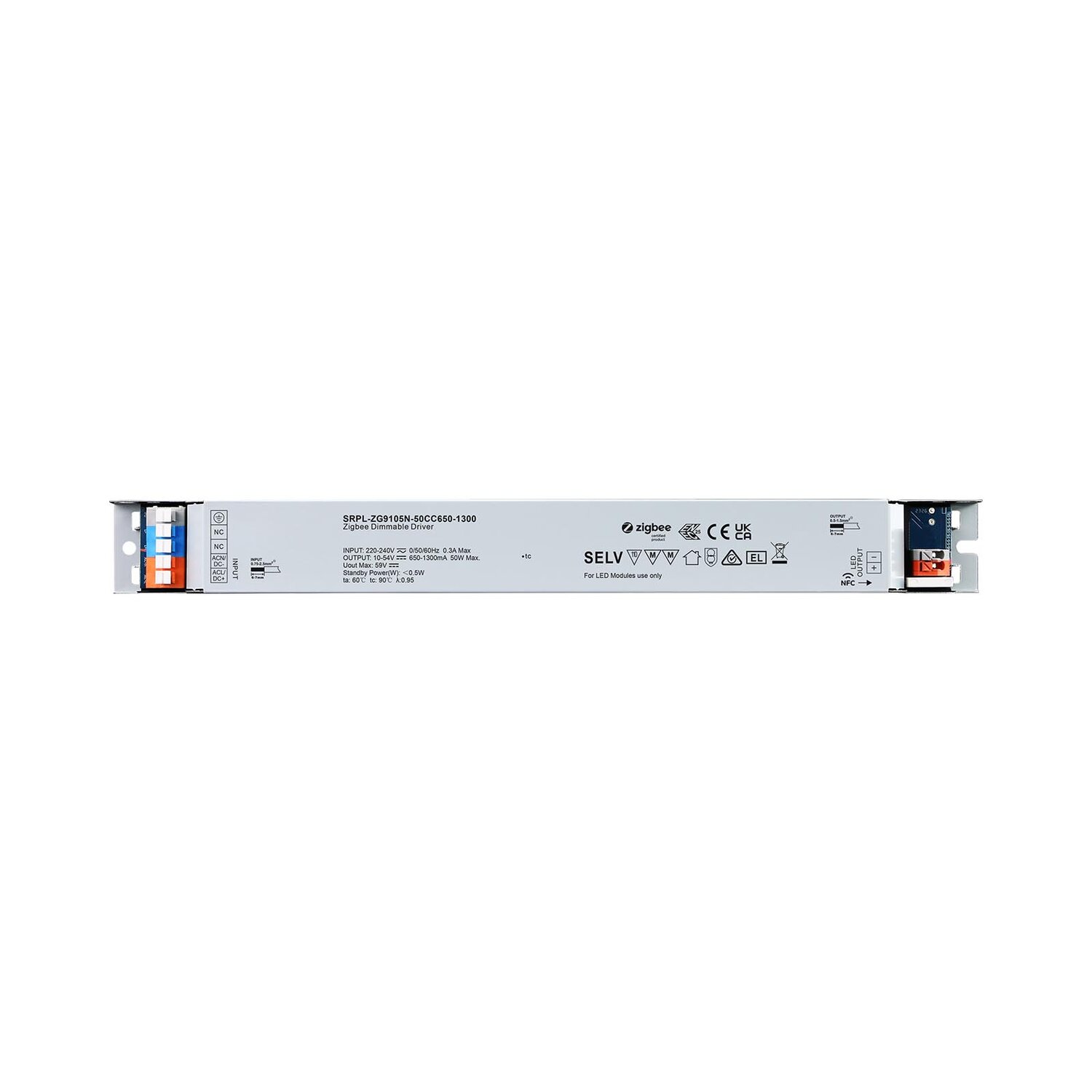

The 50W 1CH Zigbee NFC Enabled LED Driver is a constant current dimmable driver with linear metal housing, delivering up to 50W output with 650–1300mA current selectable via NFC programming, including dimming curve, power-on state, soft start, and soft off settings. Based on the Zigbee 3.0 protocol, it supports ON/OFF control and smooth amplitude/CCR dimming of LED luminaires, functions as a Zigbee end device with Touchlink commissioning, and offers find and bind capability to connect with Zigbee remotes. It also supports Zigbee Green Power and can bind with up to 20 Zigbee Green Power switches, ensuring compatibility with universal Zigbee gateway products.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 10-54V, Max.60V |
| Output | Current | 650-1300mA via NFC setting; Min.current gear lower to 0.1mA,Default 1300mA |
| Output | Current Accuracy | ±3%( ±1%@Certain full load) @ full load |
| Output | Rated Power | Max. 50W |
| Input | Voltage Range | 220-240VAC/ 176-280VDC |
| Input | Frequency Range | 0/50/60Hz |
| Input | Power Factor (Typ.) | > 0.97 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 6% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞88% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.27A Max |
| Input | Inrush Current (Typ.) | Max. 26.6A at 230VAC; 144μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Zigbee |
| Control | Dimming Range | 0.01%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +60℃ |
| Environment | Max. Case Temp | TC=90℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB 19510.1-2009, GB 19510.14-2009 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 285x30x21mm (L*W*H) |
| Others | Warranty | 5 Years |
