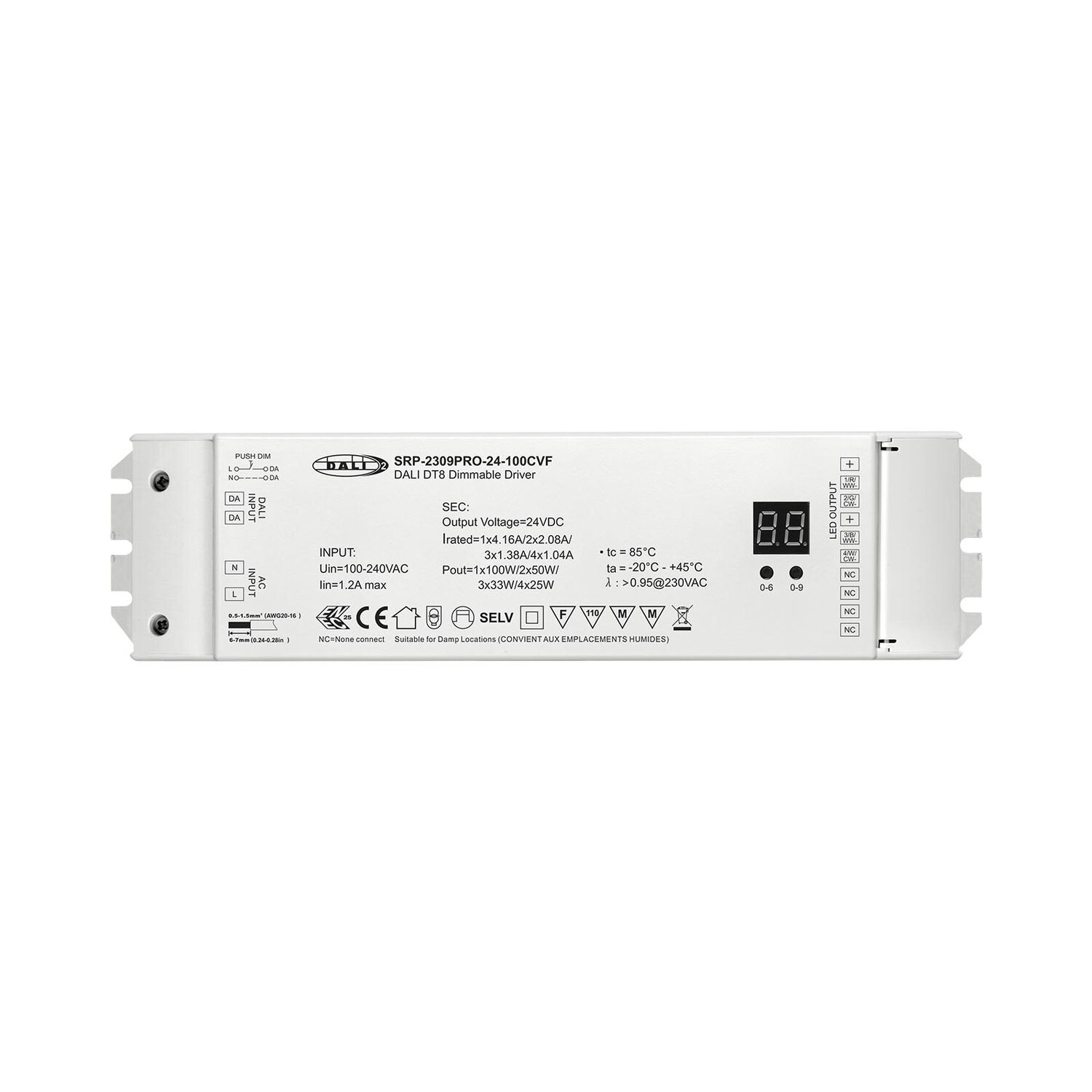

The 4 in 1 100W DALI DT8 LED Driver is a constant voltage dimmable LED driver with four channels of 24V output, compliant with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and IEC 62386-209:2011 standards, featuring a built-in DALI-2 interface as a DALI DT8 device, a class 1 fully isolated power supply, high power factor above 0.95, and efficiency over 90%, supporting four universal device types—primary N, Tc, XY coordinate, and RGBW—that can be selected via manual buttons, enabling control of RGBW or tunable white outputs through a single DALI address with separate control of four PWM outputs in primary N mode, compatible with universal DALI masters and AC push switches, configurable via DALI master USB interface with a numeric digital display for manual DALI address setting, and offering overload and over-temperature protection.
| Output | LED Channel | 4 |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 4.1A/ch, ch1+ch2+ch3+ch4=4.1A |
| Output | Voltage Tolerance | ±1% |
| Output | Rated Power | max. 100W |
| Input | Voltage Range | 100-240V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.90 @ 230VAC |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | 90% @ 230VAC full load |
| Input | AC Current (Typ.) | 1.2A @ 100VAC, 0.5A @ 230VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 50A @ 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Control | Dimming Interface | DALI DT8 (DALI consumption<2mA)/Push |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Control | Dimming Curve | Logarithmic |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed |
| Environment | Working Temp | -20℃ ~ +45℃ |
| Environment | Max. Case Temp | 75℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | TUV EN61347-1, EN61347-2-13 approved |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 192500H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
| Others | Dimension | 244*64*32mm (L*W*H) |
