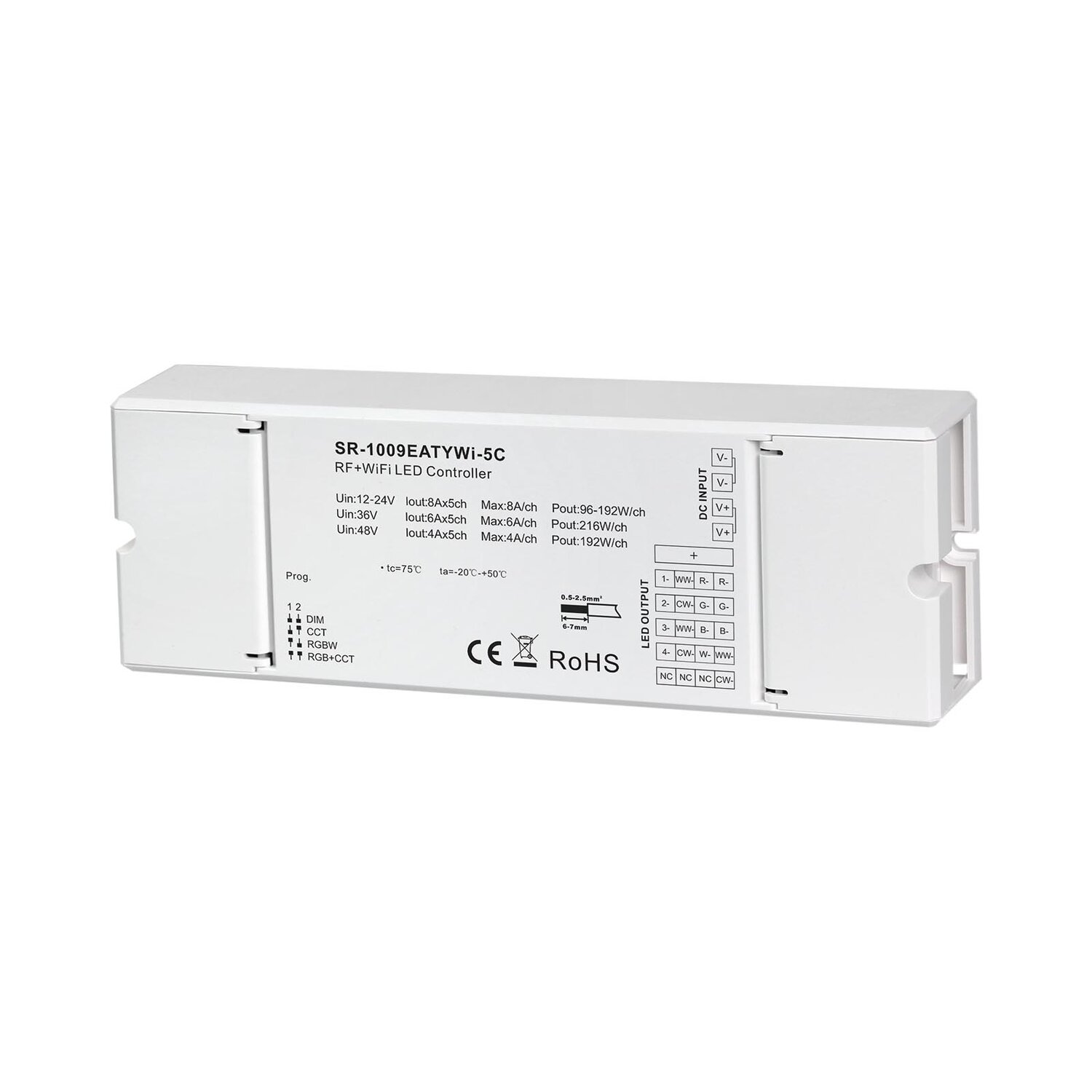

4in 1 RF+WiFi+Push Dim LED Controller

SR-1009EATYWi-5C

Product description

4 in 1 RF+WiFi+Push Dim LED controller
5 channels 12/24V/36V/48V constant voltage output
Max.8Aoutput per channel
Enables to set the device type via DIP switches
4 device types are available for setting: DIM, CCT, RGBW, RGB+CCT
Can be controlled through Tuya smart APP
Cloud control enabled based on Tuya platform
Voice control enabled, can be controlled through Amazon Alexa Google Assistant
Local control available through RF remotes even without WiFi network
Sub-1GHz RF frequency: 434/869.6/916.5MHz
Compatible with universal legacy RF remotes
With push dim function, can be controlled through existing push switches even without WiFi and RF remotes
Waterproof grade: IP20

With 5-channel. 12/24V/36V/48V
constant voltage output and max. 8A output per channel, this RF+WiFi LED controller is compatible with universal legacy RF remotes. Its RF frequency is 434/869.6/916.5MHz, and its waterproof grade is IP20.
Do not install with power applied to device, and do not expose the device to moisture.

Input Voltage	12-48VDC
Output Current	Max. 8A/CH@12V/24V Max. 6A/CH@36V Max. 4A/CH@48V
Output Power	Max. 96W/CH@12V Max. 192W/CH@24V Max. 216W/CH@36V Max. 192W/CH@48V
Connector Current Rating	Max. 20A
Wire Size	0.05-3.3mm² (12-30AWG)
Remarks	Constant voltage
Size(LxWxH)	170x59x29mm
Ambient Temperature	-20℃ +50℃
Max. Casing Temperature	75℃
