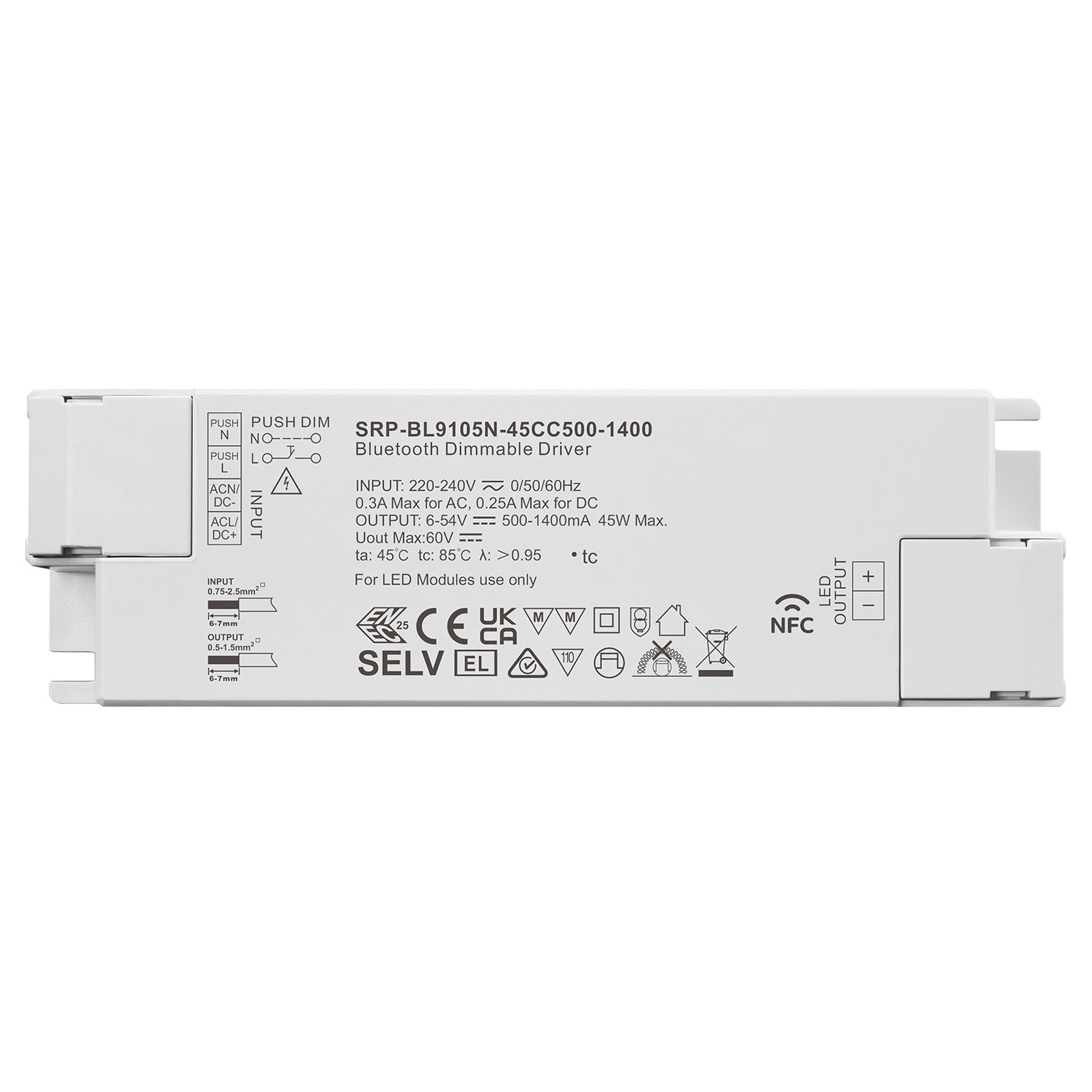

SRP-BL9105N-45CC500-1400 is a Bluetooth NFC dimmable LED driver based on a Bluetooth mesh network, with a maximum output power of 45W. It supports 500–1400mA current selection via NFC programming, with a minimum current as low as 0.1mA. Designed as a Class II fully isolated power supply, it offers high power factor and efficiency and supports PUSH DIM function. The driver enables ON/OFF control and brightness adjustment of LED luminaires, with amplitude/CCR dimming for smooth and deep dimming performance. It supports kinetic energy switches and EnOcean EWSSB and EWSDB switches, with a typical indoor wireless range of 20–25m, and features an on-board antenna, IP20 rating, and a 5-year warranty.
|
Output
|
LED Channel
|
1
|
|
DC Voltage
|
6-54V, Max. 60V |
|
|
Current
|
500-1400mA via NFC setting; Min.current gear lower to 0.1mA, default 900mA |
|
|
Current Accuracy
|
±3%( ±1%@Certain full load) @ full load
|
|
|
Rated Power
|
Max. 45W |
|
|
Input
|
Voltage Range
|
220-240VAC/220-240VDC
|
|
Absolute Voltage Range
|
196-264VAC/196-264VDC
|
|
|
Frequency Range
|
0/50/60Hz
|
|
|
Power Factor (Typ.)
|
> 0.95 @ 230VAC Full load*
|
|
|
Total Harmonic Distortion
|
/THD ≤ 12% (@ full load 230VAC)*
|
|
|
Efficiency (Typ.)
|
＞85% @ 230VAC full load*
|
|
|
AC Current (Typ.)
|
0.3A Max.
|
|
|
Inrush Current (Typ.)
|
Max. 8.56A at 230VAC; 88μs duration |
|
|
Leakage Current
|
< 5mA /230VAC |
|
|
Anti Surge
|
L-N: 2KV
|
|
|
Control
|
Dimming Interface
|
Bluetooth LE 5.x (Mesh 1.1 supported)
|
|
Dimming Range
|
0.01%-100%@ Max current
|
|
|
Dimming Method
|
Amplitude/CCR dimming
|
|
|
Dimming Curve
|
Linear/ Logarithmic optional
|
|
|
Protection
|
Short Circuit |
Yes, remove the fault conditions and re-power the device |
|
Over Current
|
Yes, remove the fault conditions and re-power the device
|
|
|
Over Temperature
|
Yes, remove the fault conditions and re-power the device
|
|
|
Environment
|
Working Temp.
|
-25°C ~ +45°C
|
|
Max. Case Temp.
|
TC=85℃ (Ta=45℃)
|
|
|
Working Humidity
|
10% ~ 95% RH non-condensing
|
|
|
Storage Temp. & Humidity
|
-40°C ~ +80°C, 10% ~ 95% RH
|
|
|
Safety & EMC
|
Safety Standards
|
EN61347-1, EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023
|
|
Withstand Voltage
|
I/P-O/P: 3.75KVAC
|
|
|
Isolation Resistance
|
I/P-O/P: 100M Ohms / 500VDC / 25°C / 70% RH
|
|
|
EMC Emission
|
EN55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021
|
|
|
EMC Immunity
|
EN61547, EN61000-4-2,3,4,5,6,8,11
|
|
|
Others
|
MTBF
|
191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature
|
|
Dimension
|
145x45x28mm (L*W*H) |
|
|
Warranty
|
5 Years
|
