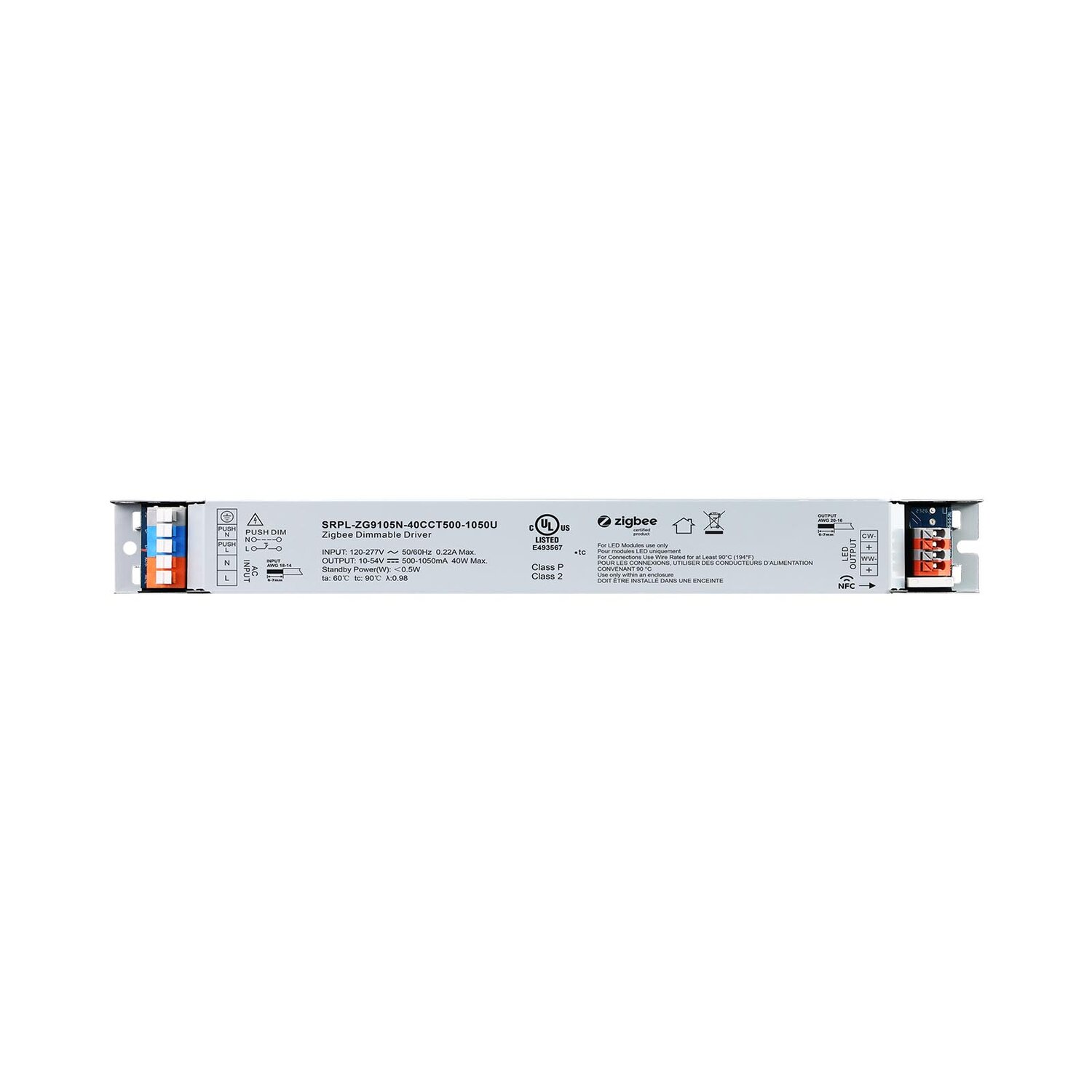

The 40W 2CH Zigbee NFC Enabled LED Driver is a dimmable LED driver based on the Zigbee 3.0 protocol, featuring a linear metal housing with a maximum output power of 40W. It allows current selection between 500-1050mA via the NFC programming tool, with a minimum current gear adjustable to 0.1mA. The driver offers dimming curve, power-on state, soft start, and soft off functions through the NFC tool. It is equipped with a Class II power supply and an isolated design for high power factor and efficiency. This driver is designed to switch and dim LED lighting luminaires and enables tunable white control. With amplitude/CCR dimming, it provides smooth and deep dimming effects. As a Zigbee end device, it supports Touchlink commissioning and can pair directly with compatible Zigbee remotes via Touchlink. Additionally, it supports find and bind mode to link a Zigbee remote and can bind up to 20 Zigbee green power switches. The driver is compatible with universal Zigbee gateway products, making it suitable for indoor LED lighting applications.
| Output | LED Channel | 2 |
|---|---|---|
| Output | DC Voltage | 10-54V, Max.60V |
| Output | Current | 500-1050mA via NFC setting; Min.current gear lower to 0.1mA,Default 1050mA |
| Output | Current Accuracy | ±3%( ±1%@Certain full load) @ full load |
| Output | Rated Power | Max. 40W |
| Input | Voltage Range | 120-277VAC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.98 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 3% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞87% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.22A Max |
| Input | Inrush Current (Typ.) | Max. 5.62A at 230VAC; 60μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Zigbee |
| Control | Dimming Range | 0.01%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +60℃ |
| Environment | Max. Case Temp | TC=90℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB 19510.1-2009, GB 19510.14-2009 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 245x30x21mm (L*W*H) |
| Others | Warranty | 5 Years |
