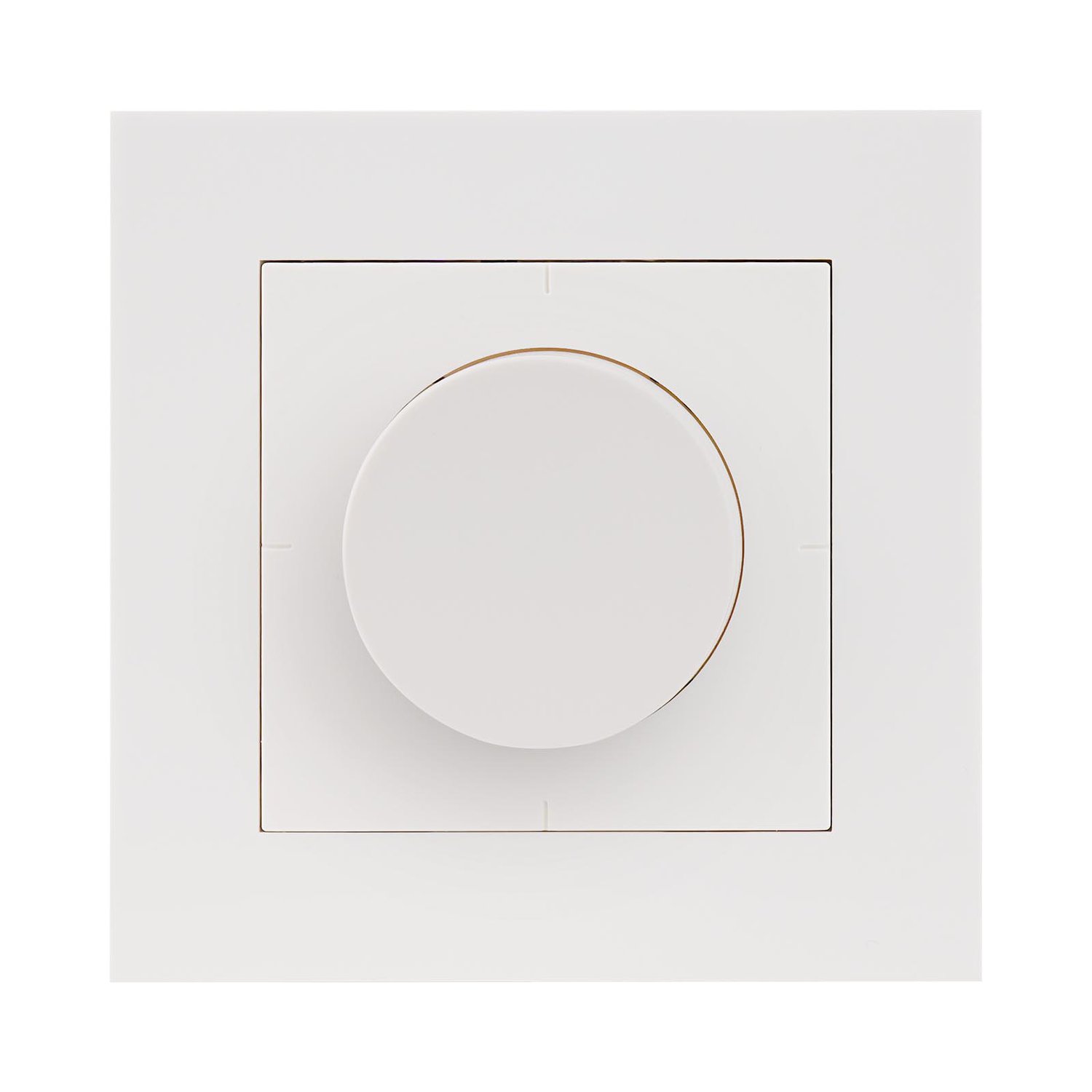

4-Key Zigbee Rotary & Push Button Smart Dimmer

SR-ZG2835RAC-NK4

Product description

Zigbee knob & push button smart dimmer based on latest Zigbee 3.0 protocol
100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
Supports resistive loads, capacitive loads or inductive loads
Enables to set minimum brightness and startup brightness
1 channel output, up to 500W
Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
Enables to control ON/OFF and light intensity of connected light source
Supports energy metering, real time energy consumption can be monitored
Zigbee device that supports Touchlink commissioning
Can be controlled by Zigbee gateway, Zigbee remote and local push buttons
Can directly pair to a compatible Zigbee remote via Touchlink without coordinator
Supports self-forming Zigbee network without coordinator and add other devices to the network
Supports find and bind mode to bind a Zigbee remote
Supports Zigbee green power and can bind max. 20 Zigbee green power remotes
Compatible with universal Zigbee gateway products
With push switch input, can be controlled by universal AC push switches
Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
Radio Frequency: 2.4GHz
Waterproof grade: IP20

The 4-Key Zigbee Rotary & Push Button Smart Dimmer is a Zigbee 3.0-based device designed for 100–240VAC input and output with self-adaptive support for both no-neutral and with-neutral wiring, compatible with resistive, capacitive, or inductive loads, offering one channel output up to 500W and configurable minimum and startup brightness; available in factory-preset leading or trailing edge versions, it enables ON/OFF and dimming control, supports energy metering for real-time consumption monitoring, and can be operated via Zigbee gateway, Zigbee remote, local push buttons, or universal AC push switches; it features Touchlink commissioning, find and bind mode, Zigbee green power support for up to 20 remotes, compatibility with universal Zigbee gateways, and a standard form factor for EU wall boxes and frames.

Input Voltage	100-240VAC
Output Voltage	100-240VAC
Output Current	2.2A max
Minimum Load	7W LED(no neutral without bypass) 3W LED(no neutral with bypass) No minimum load requirement with neutral
Max. Number of Parallel Connected Load
Size(LxWxH)
