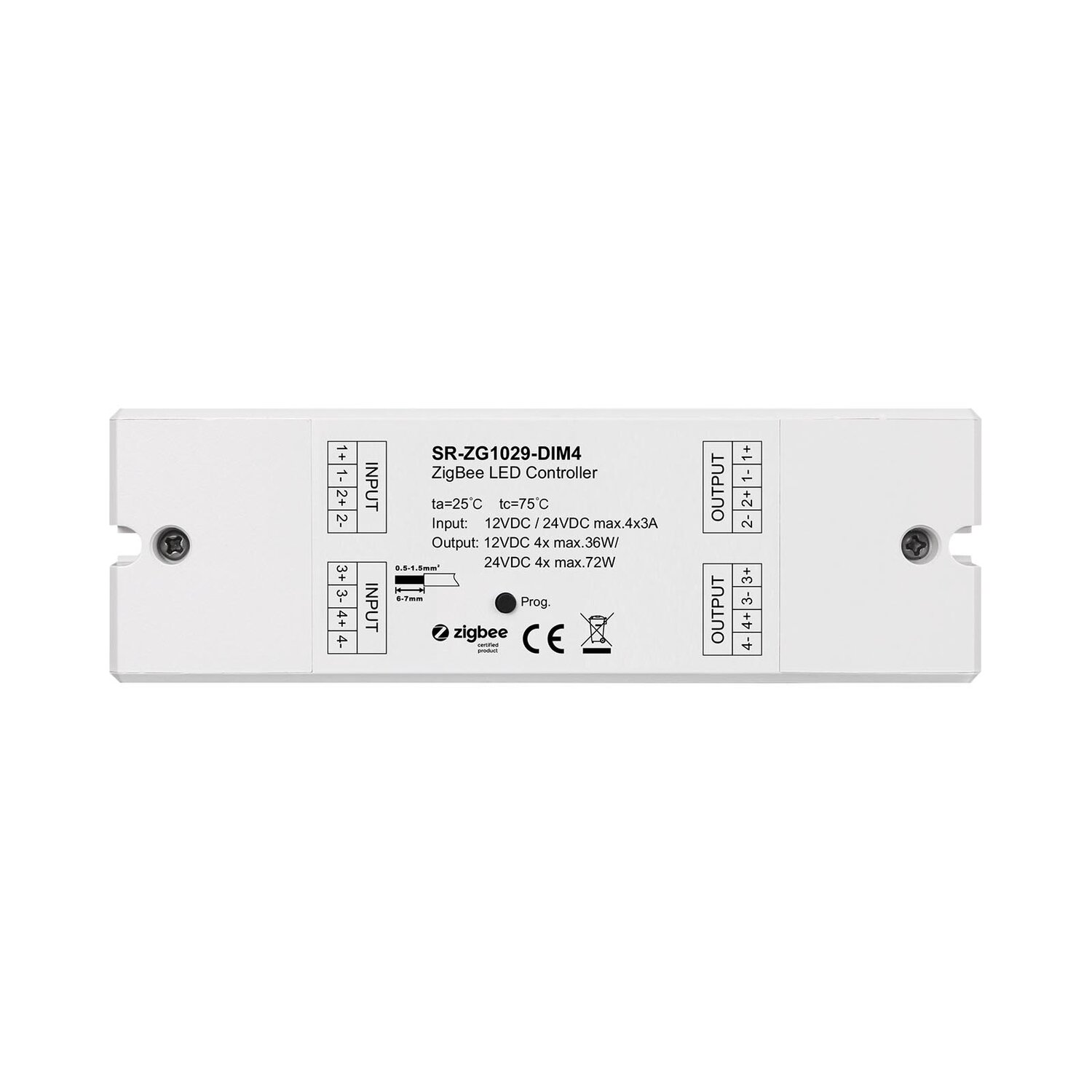

4 Endpoints ZigBee Single Color LED Controller

SR-ZG1029-DIM4
Product description
  • Zigbee single color LED controller based on latest Zigbee 3.0 protocol
  • 4 channels output, 4 Zigbee endpoints, 4 channels can be controlled individually
  • Enables to control ON/OFF, light intensity of connected LED lights
  • Can directly pair to a compatible Zigbee remote via Touchlink
  • Supports self-forming Zigbee network without coordinator
  • Supports find and bind mode to bind a Zigbee remote
  • Supports Zigbee green power features and can learn to max. 20 Zigbee green power switches
  • Compatible with universal Zigbee gateway or hub products that support multi-endpoints light device
  • Compatible with universal Zigbee remotes that support multi-endpoints light device
  • Waterproof grade: IP20

The 4 Endpoints ZigBee Single Color LED Controller is a versatile device designed for controlling single-color LED lights using the latest ZigBee 3.0 protocol. With four output channels and four ZigBee endpoints, each channel can be independently controlled, allowing for precise adjustments in light intensity and on/off status. This controller easily pairs with compatible ZigBee remotes via Touchlink and supports self-forming ZigBee networks without the need for a coordinator. Additionally, it features a find and bind mode for binding to ZigBee remotes and supports ZigBee green power features, allowing it to learn up to 20 ZigBee green power switches. It is compatible with universal ZigBee gateways or hubs that support multi-endpoint light devices, as well as ZigBee remotes that are designed for multi-endpoint control.

Input Voltage 12-24VDC
Output Current Max. 4*3A
Output Power Max. 4*36W @ 12V Max. 4*72W @ 24V
Remarks Constant voltage
Size(LxWxH) 145×46.5x16mm
Ambient Temperature -20℃ +50℃
Max. Casing Temperature 75℃
