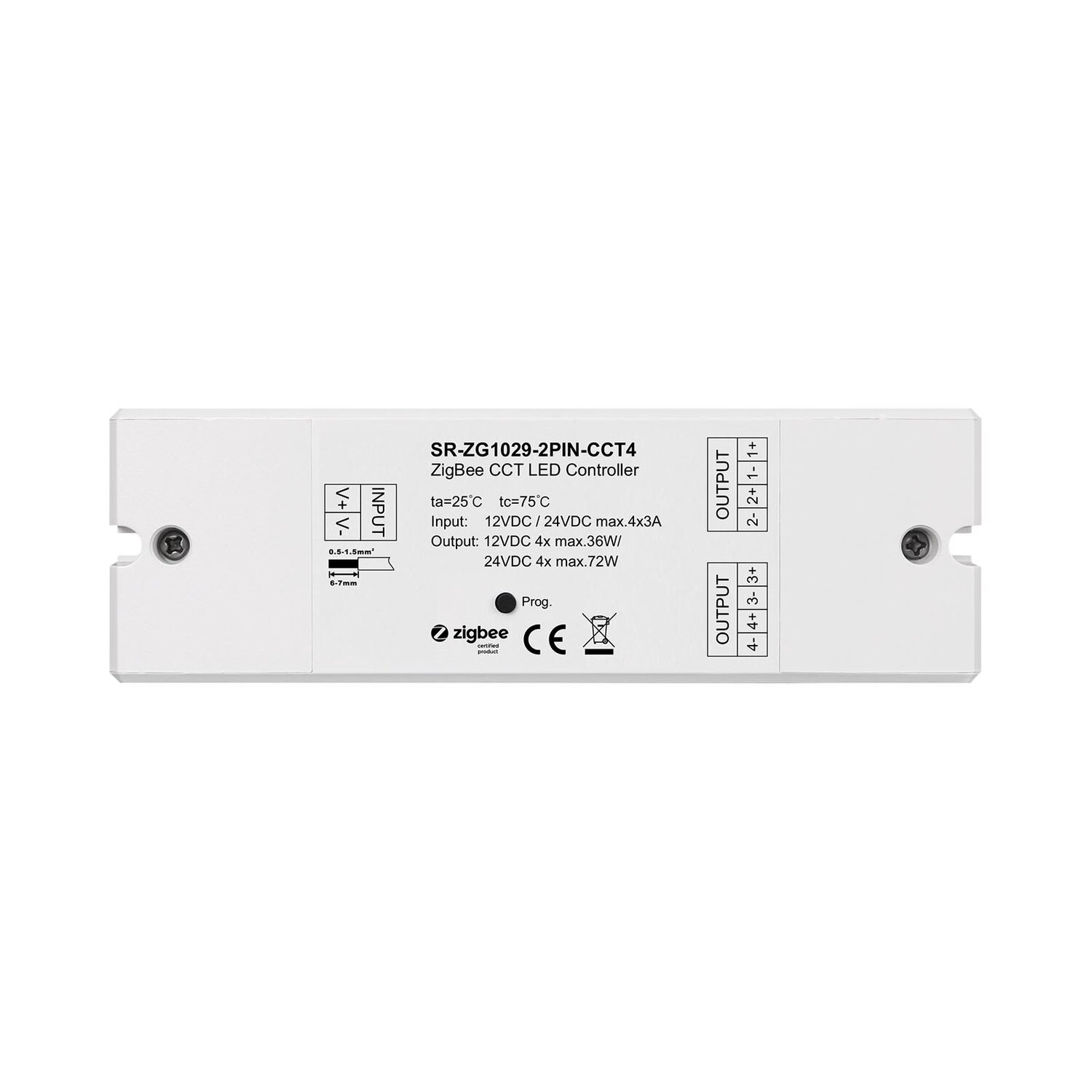

The 4 Endpoints ZigBee 2PIN CCT LED Controller is designed for controlling 2PIN CCT LED lights using the latest ZigBee 3.0 protocol. It offers four output channels and four ZigBee endpoints, allowing individual control of each channel for adjusting ON/OFF, light intensity, and color temperature. The controller can directly pair with a compatible ZigBee remote via Touchlink and supports self-forming ZigBee networks without requiring a coordinator. It also features find and bind mode for binding to ZigBee remotes and supports ZigBee green power features, enabling it to learn up to 20 ZigBee green power switches. Additionally, it is compatible with universal ZigBee gateways or hubs that support multi-endpoint light devices, as well as ZigBee remotes designed for multi-endpoint control.
| Input Voltage | 12-24VDC |
|---|---|
| Output Current | Max. 4*3A |
| Output Power | Max. 4*36W @ 12V Max. 4*72W @ 24V |
| Remarks | Constant voltage |
| Size(LxWxH) | 145×46.5x16mm |
| Ambient Temperature | -20℃ +50℃ |
| Max. Casing Temperature | 75 |
