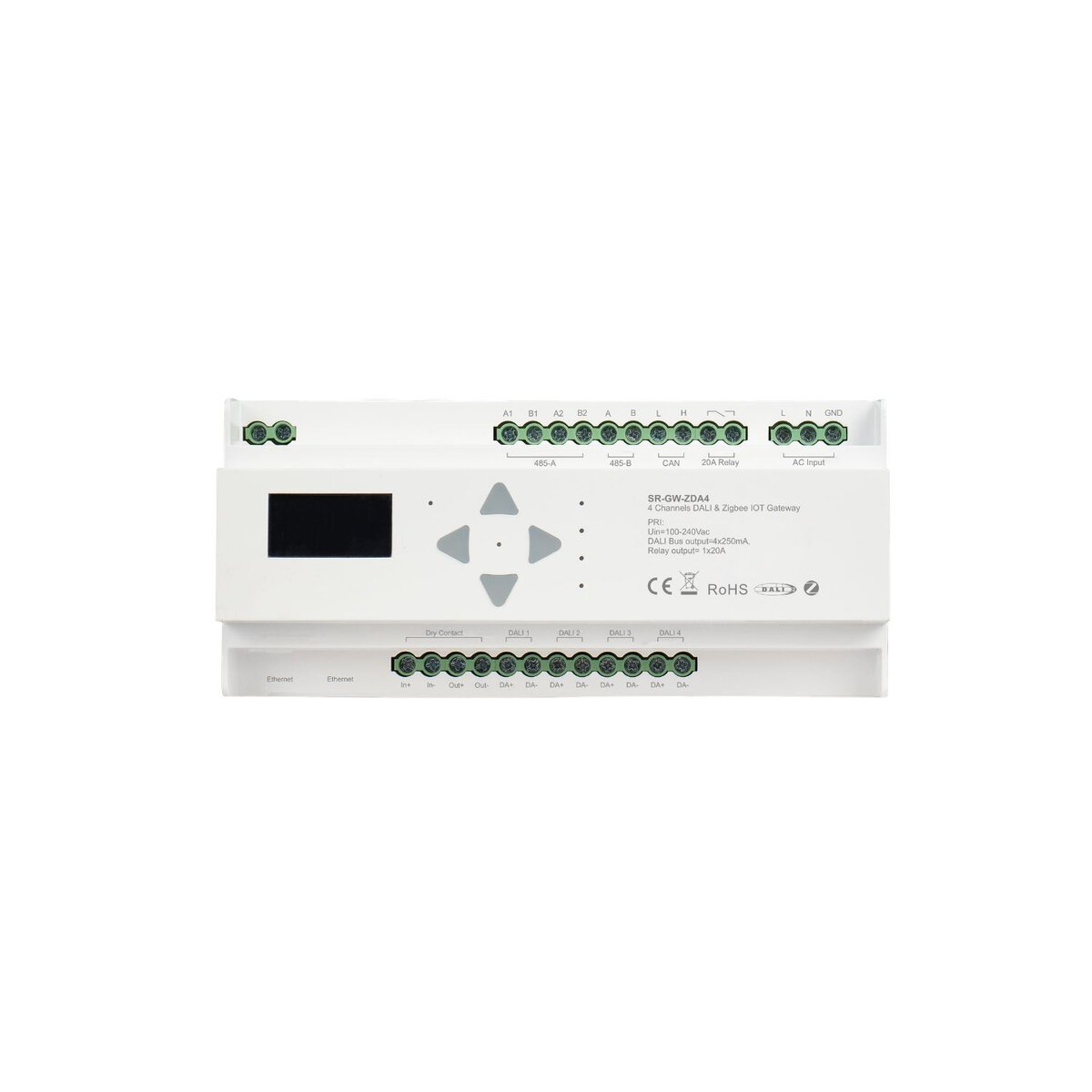

4 Channels DALI & Zigbee IoT Gateway

Name: 4 Channels DALI & Zigbee IoT Gateway - Sunricher
Brand: Sunricher

SR-GW-ZDA4

Product description

• This ZigBee & DALI IoT gateway works with both Zigbee and DALI devices: lighting devices, sensors, heaters, plugs,
remotes, GP switches, etc
• With OLED screen and navigation buttons for menu operations
• Each DALI bus with max. 250mA DALI bus current output, no extra DALI PS required
• Supports 4*64 DALI control gears + 4*64 DALI input devices
• Commissioning via Sunlink platform
• Supports group, scene, and automation
• Supports up to 150 zigbee devices
• 4 channels DALI bus output
• 1 channel CAN bus output
• 2 channels RS485 interface
• 1 channel 20A relay output
• 1 channel dry contact input & 1 channel dry contact output
• DIN rail installation
• DALI interface with Galvanic Isolation
• Waterproof grade: IP20

This 4-channel DALI & Zigbee IoT Gateway works with Zigbee and DALI devices including lighting, sensors, heaters, plugs, remotes, and GP switches. It features an OLED screen and navigation buttons. Each DALI bus provides 250mA current output, eliminating the need for an extra DALI power supply. It supports 4×64 DALI control gears and 4×64 DALI input devices, plus up to 150 Zigbee devices. Commissioning is done via the Sunlink platform.

Input Voltage	DALI Bus Output	Relay Output	Output Signal
100-240VAC	4x250mA	1x20A	Zigbee Wireless Signal
