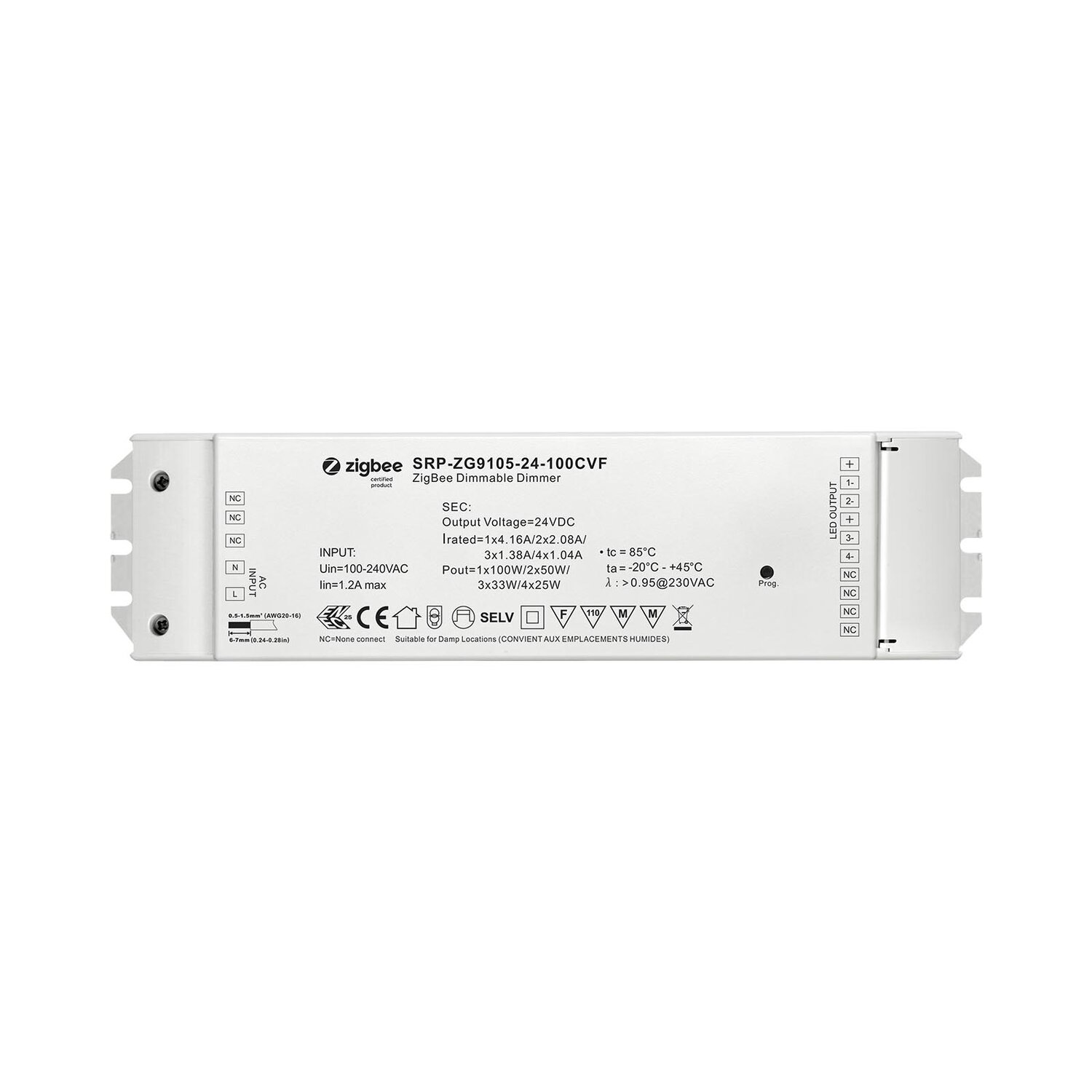

The 4 Channels CV 100W ZigBee Dimmable Driver is a plastic-cased dimmable LED driver with four channels and a 24VDC constant voltage output.
It features a Class 1 power supply with full isolation and a built-in two-stage active PFC function, achieving a power factor greater than 0.90 and an efficiency exceeding 90%. Compliant with Safety Extra Low Voltage standards, it also includes overload and over-temperature protection. This Zigbee RGBW LED light device, based on the Zigbee 3.0 protocol, supports Touchlink commissioning and allows control of ON/OFF, light intensity, and RGB color. The W channel can be controlled via a Gateway’s color temperature control interface and separately from the RGB channels through a Zigbee remote or touch panel’s W button. It can directly pair with a compatible Zigbee remote via Touchlink and supports Zigbee green power, binding up to 20 Zigbee green power remotes. Compatible with universal Zigbee coordinator or gateway products, it is ideal for indoor LED lighting applications.
| Output | LED Channel | 4 |
|---|---|---|
| Output | DC Voltage | 24V DC |
| Output | Max. Current | Max. 4.1A/ch, ch1+ch2+ch3+ch4=4.1A |
| Output | Voltage Tolerance | ±1% |
| Output | Rated Power | max. 100W |
| Input | Voltage Range | 100-240V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.90 @ 230VAC |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | 90% @ 230VAC full load |
| Input | AC Current (Typ.) | 1.2A @ 100VAC, 0.5A @ 230VAC |
| Input | Inrush Current (Typ.) | Cold Start Max. 50A @ 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Control | Dimming Interface | ZigBee |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed |
| Environment | Working Temp | -20℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | TUV EN61347-1, EN61347-2-13 approved |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 187900H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
| Others | Dimension | 244*64*32mm (L*W*H) |
