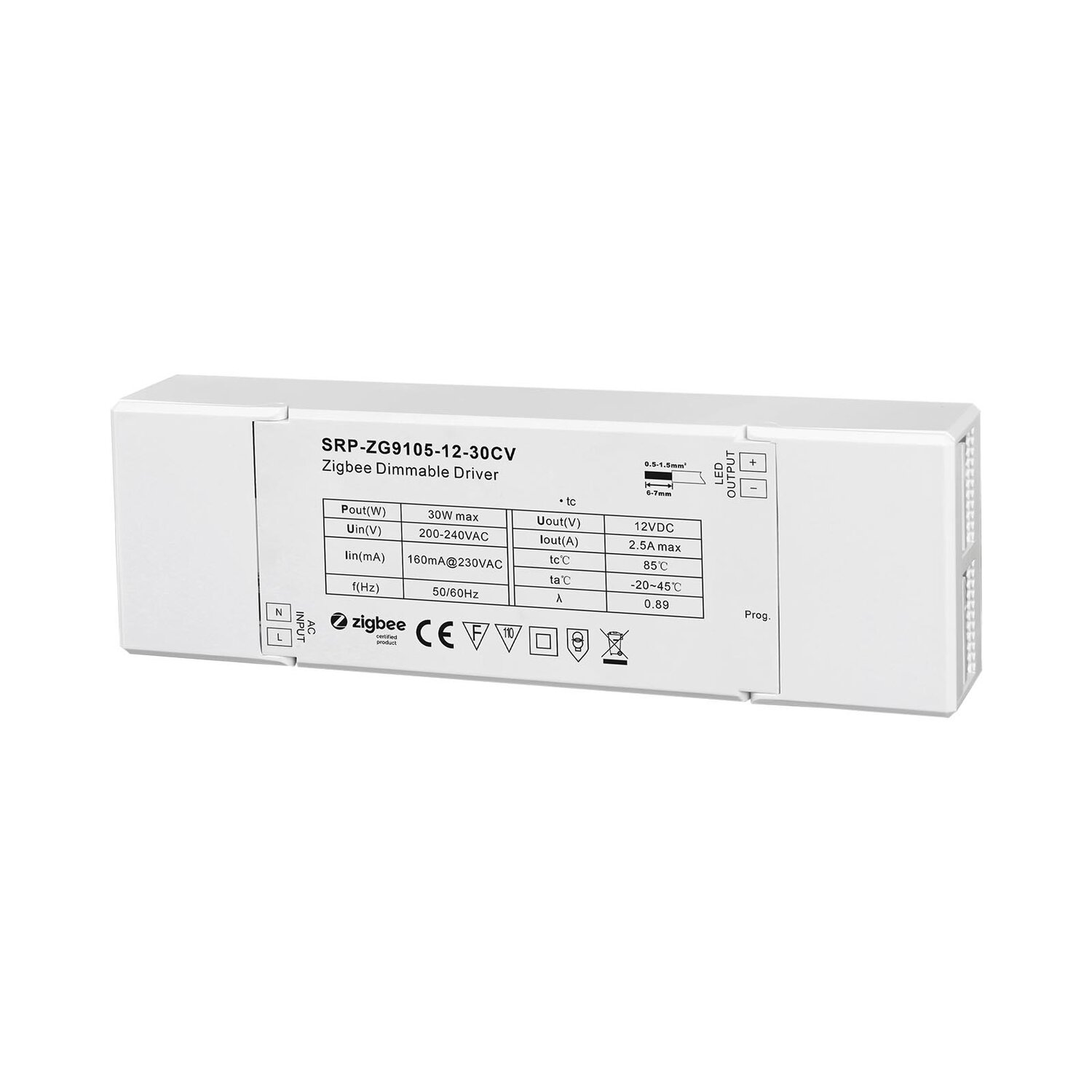

The 30W ZigBee LED Driver is a dimmable constant voltage device based on the Zigbee 3.0 protocol, delivering up to 30W of output power through a single 12/24V DC channel. It enables ON/OFF control and brightness adjustment of connected single-color LED lights with deep, smooth dimming down to 0.1%, and features high power factor and efficiency with built-in active PFC. This Class II, fully isolated driver supports Touchlink commissioning for direct pairing with compatible Zigbee remotes, find and bind mode, and can bind up to 20 Zigbee green power remotes. It is compatible with universal Zigbee gateways and dimming Zigbee remotes.
| Output | DC Voltage | 12VDC | 24VDC |
|---|---|---|---|
| Output | Max. Current | Max. 2.5A | Max. 1.25A |
| Output | Rated Power | Max. 30W | |
| Input | Voltage Range | 200-240V AC | |
| Input | Frequency Range | 50/60Hz | |
| Input | Power Factor (Typ.) | > 0.9 @ 230VAC | |
| Input | Total Harmonic Distortion | THD < 15% (@ fullload /230VAC) | |
| Input | Efficiency (Typ.) | 89% @ 230VAC full load | |
| Input | Inrush Current (Typ.) | COLD START 2A max. at 230VAC | |
| Input | AC Current (Typ.) | 0.17A @ 230VAC | |
| Input | Leakage Current | < 0.5mA/230VAC | |
| Protection | Over Voltage | Yes, auto recovery after fault removed | |
| Protection | Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 189500H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |
| Others | Dimension | 170*53.4*28mm (L*W*H) |
