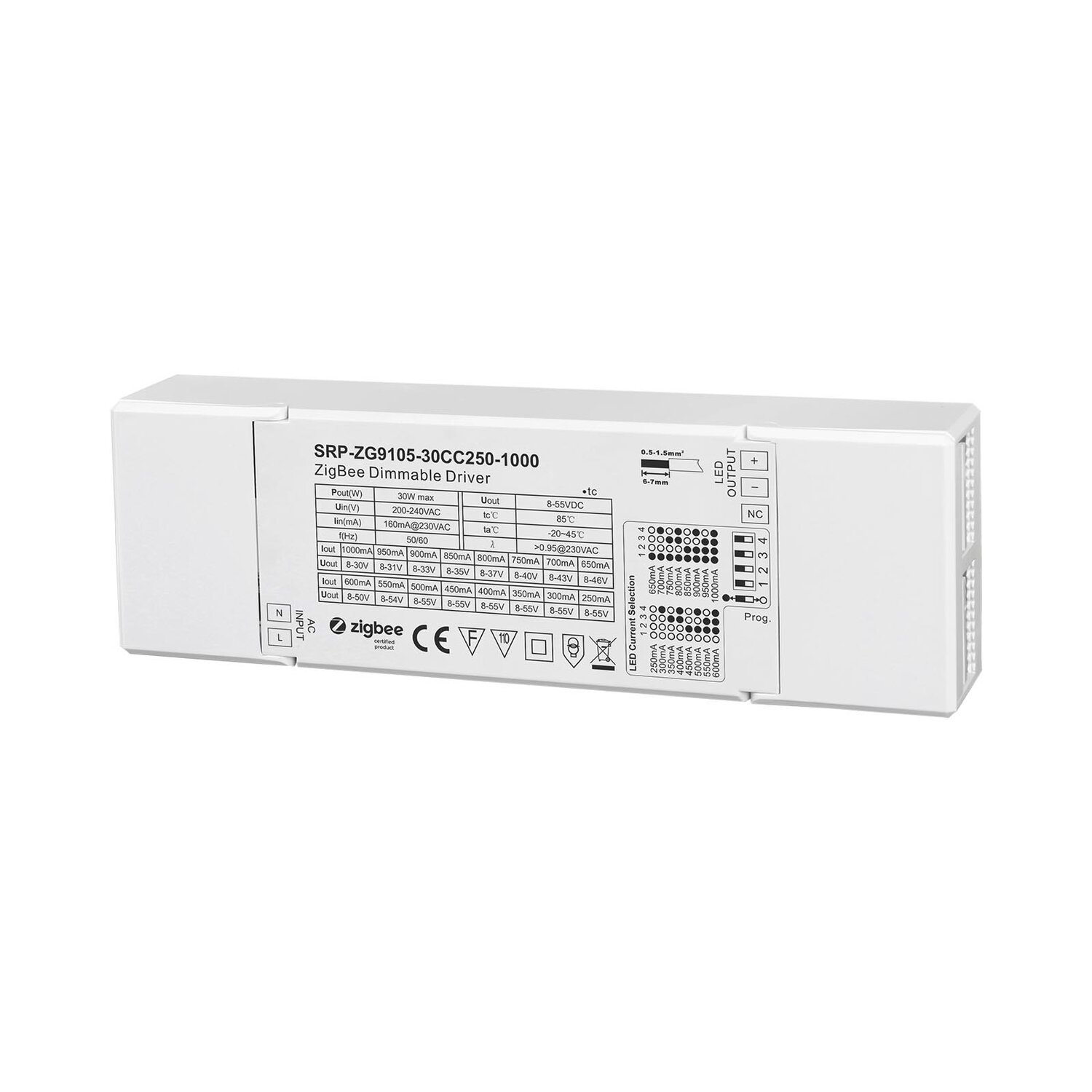

SRP-ZG9105-30CC250-1000 is a Dimmable 30w LED Driver with 1 channel constant current output and adjustable current from250ma to 1000ma by DIP switches, which enables it to be suitable for constant current LED lights with different current. It is designed with 200-240VAC input.
Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise.
The LED driver is designed with ZigBee control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The driver can be compatible with universal ZigBee gateway or coordinator.
In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes. The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink.
It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
| Output | Selectable Current | 250mA | 300mA | 350mA | 400mA | 450mA | 500mA | 550mA | 600mA |
|---|---|---|---|---|---|---|---|---|---|
| Output | DC Voltage Range | 8-55V | 8-55V | 8-55V | 8-55V | 8-55V | 8-55V | 8-54V | 8-50V |
| Output | Selectable Current | 650mA | 700mA | 750mA | 800mA | 850mA | 900mA | 950mA | 1000mA |
| Output | DC Voltage Range | 8-46V | 8-43V | 8-40V | 8-37V | 8-35V | 8-33V | 8-31V | 8-30V |
| Output | Rated Power | 30W max | |||||||
| Input | Voltage Range | 200-240V AC | |||||||
| Input | Frequency Range | 50/60Hz | |||||||
| Input | Power Factor (Typ.) | > 0.9 @ 230VAC | |||||||
| Input | Total Harmonic Distortion | ≤ THD 12% (@ full load / 230VAC) | |||||||
| Input | Efficiency (Typ.) | 83% @ 230VAC full load | |||||||
| Input | AC Current (Typ.) | 0.17A @ 230VAC | |||||||
| Input | Inrush Current (Typ.) | COLD START 8A max. at 230VAC | |||||||
| Input | Leakage Current | < 0.5mA /230VAC | |||||||
| Control | Dimming Interface | Zigbee 3.0 | |||||||
| Control | Dimming Range | 0.1%-100% | |||||||
| Control | Dimming Method | Amplitude dimming (PWM dimming under 1%) | |||||||
| Control | Dimming Curve | Logarithmic/ Linear | |||||||
| Environment | Working Temp | -20℃ ~ +45℃ | |||||||
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |||||||
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |||||||
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |||||||
| Protection | Short Circuit | Yes, auto recovery after fault removed | |||||||
| Protection | Over Voltage | Yes, auto recovery after fault removed | |||||||
| Protection | Over Temperature | Yes, auto recovery after fault removed | |||||||
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |||||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |||||||
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |||||||
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |||||||
| Others | MTBF | 189400H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |||||||
| Others | Dimension | 170*53.4*28mm (L*W*H) |
