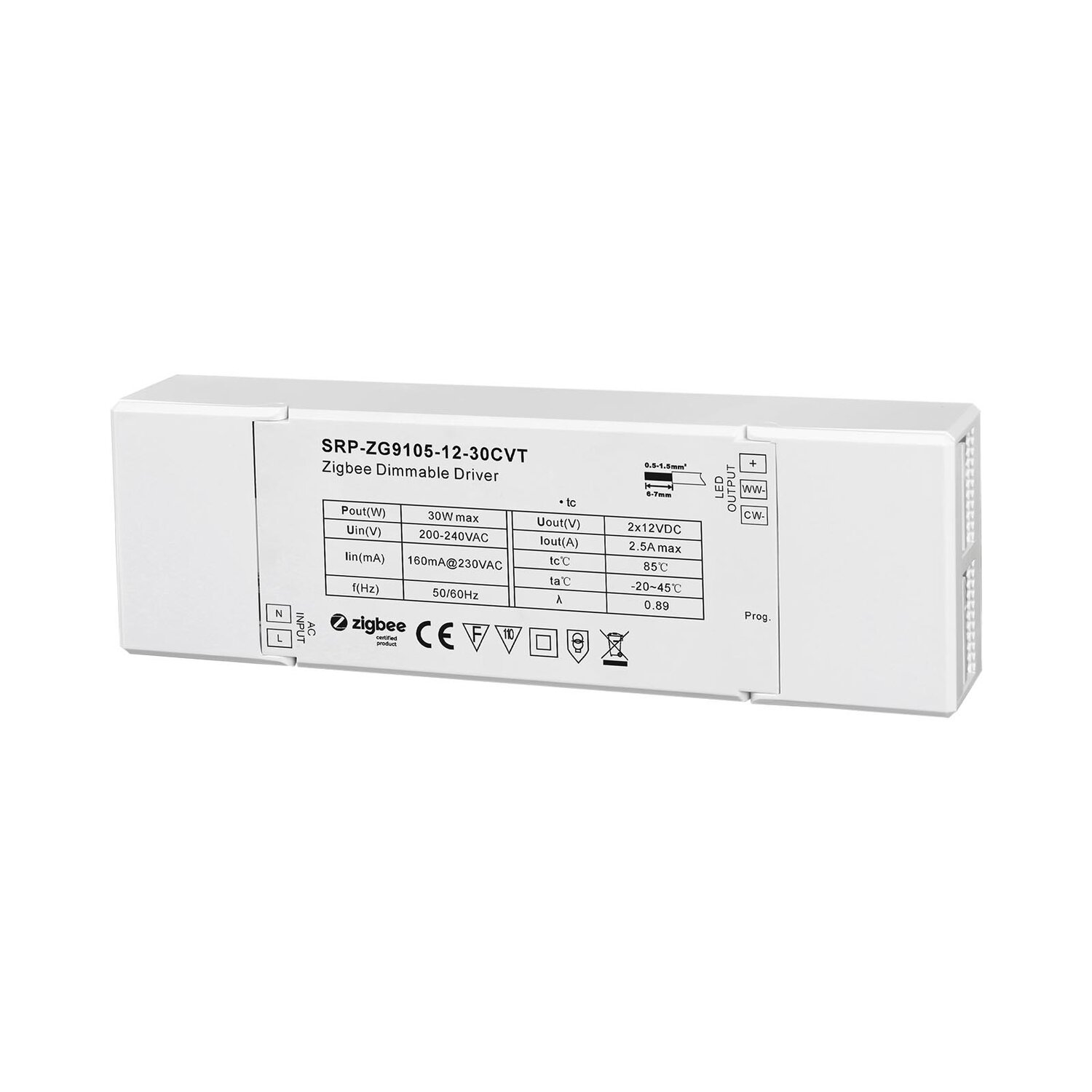

The 30W ZigBee CCT LED Driver is a dimmable driver designed for tunable white lighting, based on the Zigbee 3.0 protocol. It provides a maximum output power of 30W with two channels offering 12/24VDC constant voltage output. This Class I power supply comes in a fully isolated plastic case and features a built-in active PFC function, ensuring high power factor and efficiency. It supports deep and smooth dimming down to 0.1% and has a stand-by power consumption of less than 0.5W, meeting the latest ERP regulations. The driver enables control of ON/OFF, light intensity, and CCT for connected CCT LED lights. As a Zigbee end device, it supports Touchlink commissioning, allowing direct pairing with compatible Zigbee remotes via Touchlink. It also supports find and bind mode to bind a Zigbee remote and can bind up to 20 Zigbee green power remotes. Compatible with universal Zigbee gateway products and CCT Zigbee remotes, it is suitable for indoor LED lighting applications.
| Output | DC Voltage | 12VDC | 24VDC |
|---|---|---|---|
| Output | Max. Current | Max. 2.5A/ch, ch1+ch2=2.5A | Max. 1.25A/ch, ch1+ch2=1.25A |
| Output | Rated Power | Max. 30W | |
| Input | Voltage Range | 200-240V AC | |
| Input | Frequency Range | 50/60Hz | |
| Input | Power Factor (Typ.) | > 0.9 @ 230VAC | |
| Input | Total Harmonic Distortion | THD < 15% (@ fullload /230VAC) | |
| Input | Efficiency (Typ.) | 89% @ 230VAC full load | |
| Input | AC Current (Typ.) | 0.17A @ 230VAC | |
| Input | Inrush Current (Typ.) | COLD START 2A max. at 230VAC | |
| Input | Leakage Current | < 0.5mA/230VAC | |
| Protection | Over Voltage | Yes, auto recovery after fault removed | |
| Protection | Over Temperature | Yes, auto recovery after fault removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 188800H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature | |
| Others | Dimension | 170*53.4*28mm (L*W*H) |
