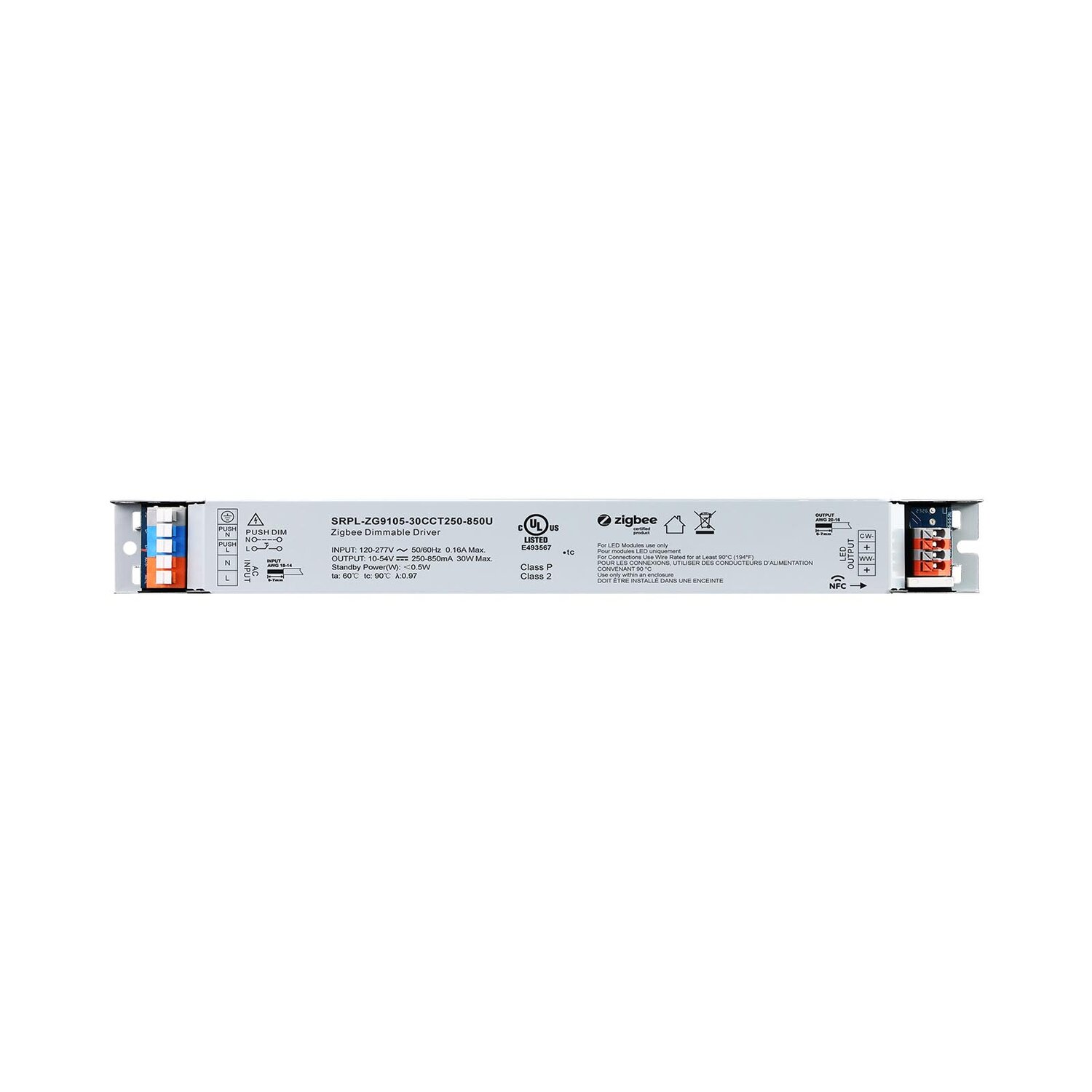

The 30W 2CH Zigbee NFC Enabled LED Driver is a dimmable LED driver based on the Zigbee 3.0 protocol, housed in a linear metal casing with a maximum output power of 30W. The driver offers a current range from 250-850mA, which can be selected via the NFC programming tool, with a minimum current gear adjustable to 0.1mA. It supports dimming curve, power-on state, soft start, and soft off features through the NFC tool. With a Class II power supply and an isolated design, the driver ensures high power factor and efficiency. It is designed to switch and dim LED lighting luminaires, enabling tunable white control with amplitude/CCR dimming for smooth and deep dimming. As a Zigbee end device, it supports Touchlink commissioning and can directly pair with a compatible Zigbee remote via Touchlink. The driver also supports find and bind mode to connect a Zigbee remote and can bind up to 20 Zigbee green power switches. It is compatible with universal Zigbee gateway products, making it suitable for indoor LED lighting applications.
| Output | LED Channel | 2 |
|---|---|---|
| Output | DC Voltage | 10-54V, Max.60V |
| Output | Current | 250-850mA via NFC setting; Min.current gear lower to 0.1mA,Default 700mA |
| Output | Current Accuracy | ±3%( ±1%@Certain full load) @ full load |
| Output | Rated Power | Max. 30W |
| Input | Voltage Range | 120-277VAC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.97 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 3% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞87% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.16A Max |
| Input | Inrush Current (Typ.) | Max. 6.04A at 230VAC; 72μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Zigbee |
| Control | Dimming Range | 0.01%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +60℃ |
| Environment | Max. Case Temp | TC=90℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB 19510.1-2009, GB 19510.14-2009 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 245x30x21mm (L*W*H) |
| Others | Warranty | 5 Years |
