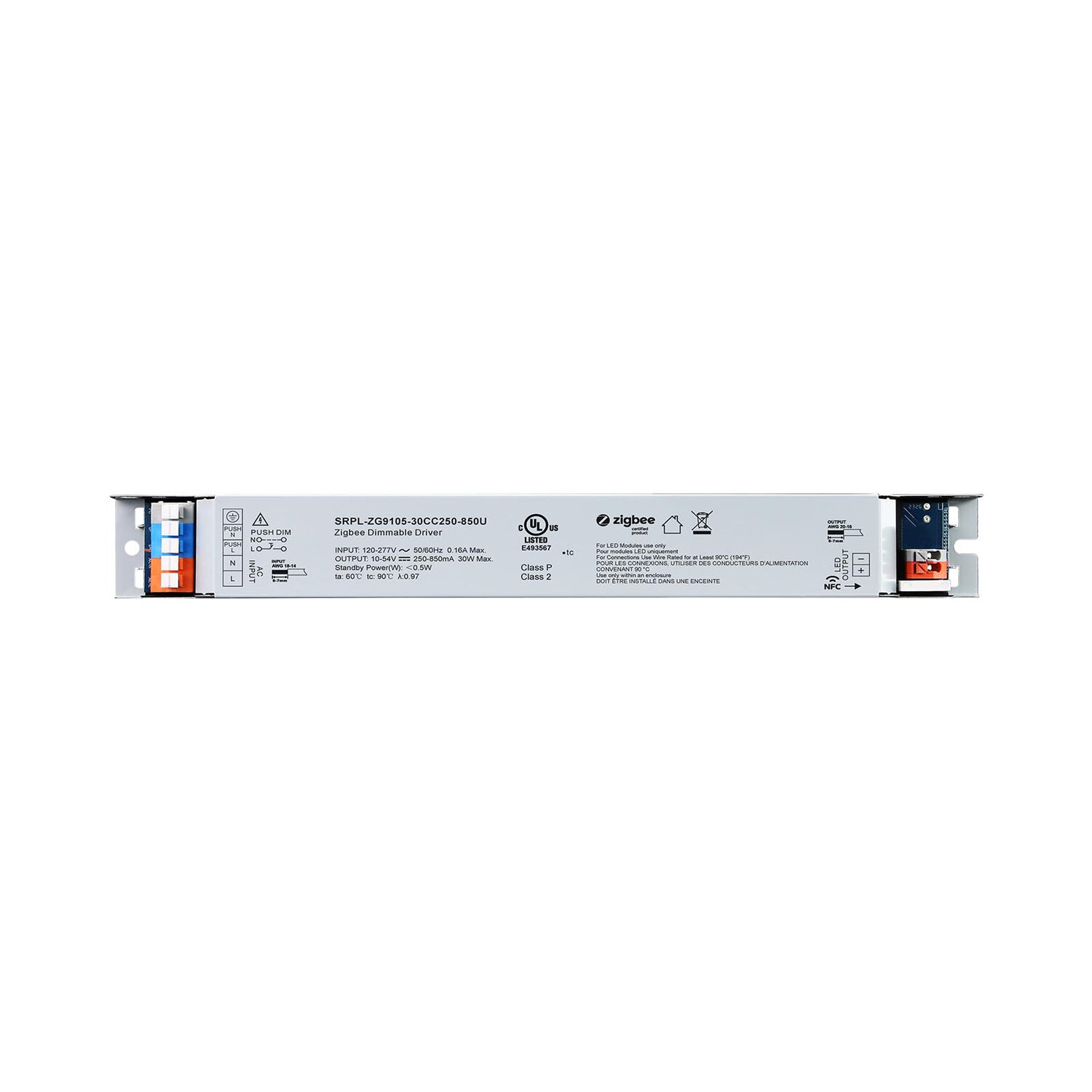

The 30W 1CH Zigbee NFC Enabled LED Driver is a dimmable LED driver based on the Zigbee 3.0 protocol, housed in a linear metal casing with a maximum output power of 30W. It offers selectable current from 250-850mA through the NFC programming tool, with a minimum current gear adjustable to 0.1mA. The driver supports dimming curve, power-on state, soft start, and soft off features via NFC, and ensures high power factor and efficiency with its Class II isolated power supply design. Designed to switch and dim LED lighting luminaires, it enables smooth and deep dimming with amplitude/CCR dimming. As a Zigbee end device, it supports Touchlink commissioning, allowing direct pairing with compatible Zigbee remotes via Touchlink. It also supports find and bind mode to connect a Zigbee remote and can bind up to 20 Zigbee green power switches. Compatible with universal Zigbee gateway products, it is ideal for indoor LED lighting applications.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 10-54V, Max.60V |
| Output | Current | 250-850mA via NFC setting; Min.current gear lower to 0.1mA,Default 700mA |
| Output | Current Accuracy | ±3%( ±1%@Certain full load) @ full load |
| Output | Rated Power | Max. 30W |
| Input | Voltage Range | 120-277VAC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.97 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 3% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞87% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.16A Max |
| Input | Inrush Current (Typ.) | Max. 6.04A at 230VAC; 72μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:2KV |
| Control | Dimming Interface | Zigbee |
| Control | Dimming Range | 0.01%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +60℃ |
| Environment | Max. Case Temp | TC=90℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB 19510.1-2009, GB 19510.14-2009 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 245x30x21mm (L*W*H) |
| Others | Warranty | 5 Years |
