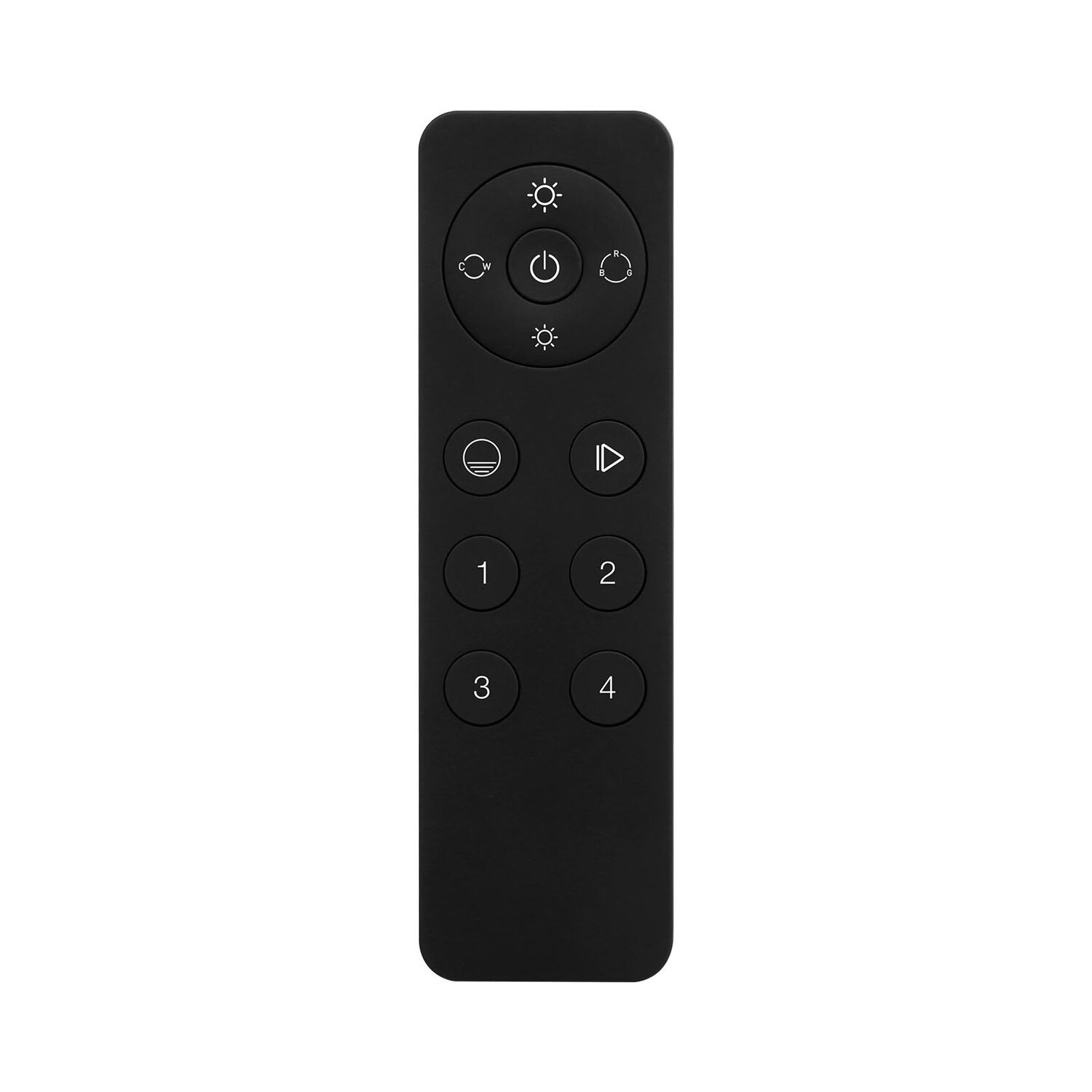

The 3 in 12.4G Mesh Remote Controller is a versatile 2.4G mesh control device designed to manage DIM, CCT, and RGB lighting functions across up to four zones of receivers. It offers easy and quick pairing to 2.4G mesh receivers with a simple button press, and its mesh network enhances the control distance, allowing receivers to transmit signals to each other. Each remote can control multiple receivers, and each receiver can be paired with up to 8 remotes. The controlled receiver status is quickly synchronized to the smart app, ensuring seamless control. With a transmission range of up to 30m between neighboring devices and utilizing 2.4G low power consumption technology, it ensures long battery life. The remote also features a magnet on the back for easy fastening and removal from its bracket, and it is compatible with universal DIM, CCT, RGB, RGBW, and RGB+CCT lighting devices.
| Protocol | 2.4G RF |
|---|---|
| Operation Voltage | 3VDC (CR2025) |
| Transmission Frequency | 2.4GHz |
| Transmission Range (free field) | 30m |
| Protection Type | IP20 |
| Dimming Range | 0.1%-100% |
| Dimension | 136.3×38.9×10.7mm |
| Protection Grade | IP20 |
