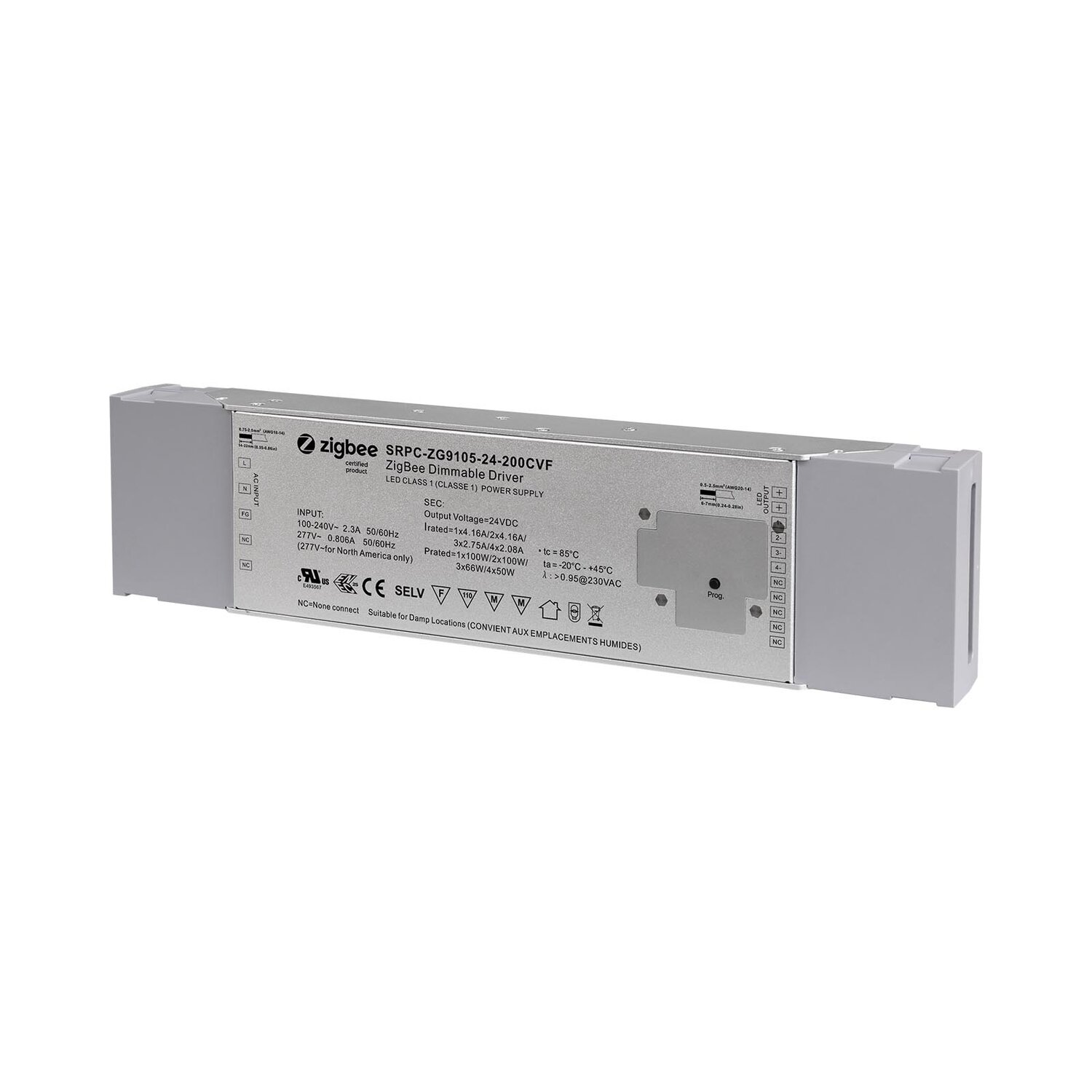

The 200W ZigBee LED Driver (Constant Voltage) is a dimmable LED driver with a metal case that provides 4 channels of 12/24VDC constant voltage output.
It features a Class 1 power supply with a fully isolated metal case and incorporates a two-stage active PFC function, ensuring a power factor of >0.98 and efficiency greater than 93%, with low standby power consumption of less than 1W. This driver complies with the Safety Extra Low Voltage standard and includes overload and over-temperature protection. As a Zigbee RGBW LED light device based on the Zigbee 3.0 protocol, it supports Touchlink commissioning and allows for control of ON/OFF, light intensity, and RGB color. The white (W) channel can be controlled through the gateway’s color temperature control interface and separately from the RGB channels via a Zigbee remote or touch panel’s W button. It can pair directly with a compatible Zigbee remote via Touchlink, supports Zigbee green power, and can bind up to 20 Zigbee green power remotes. It is compatible with universal Zigbee coordinators or gateway products and is rated IP20, suitable for indoor LED lighting applications.
| Output | LED Channel | 4 | |
|---|---|---|---|
| Output | DC Voltage | 12V DC | 24V DC |
| Output | Max. Current | Max. 8.3A/ch, ch1+ch2+ch3+ch4=16.6A | Max. 4.1A/ch, ch1+ch2+ch3+ch4=8.4A |
| Output | Voltage Tolerance | ±1% | |
| Output | Rated Power | max. 200W | |
| Input | Voltage Range | 100-277V AC | |
| Input | Frequency Range | 50/60Hz | |
| Input | Power Factor (Typ.) | > 0.98 @ 230VAC | |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) | |
| Input | Efficiency (Typ.) | 93% @ 230VAC full load | |
| Input | AC Current (Typ.) | 2.3A @ 100VAC, 1A @ 230VAC, 0.9A@277VAC | |
| Input | Leakage Current | < 0.5mA /230VAC | |
| Input | Standby Power Consumption | < 1W | |
| Control | Dimming Interface | ZigBee | |
| Control | Dimming Range | 0.1%-100% | |
| Control | Dimming Method | Pulse Width Modulation | |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed | |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed | |
| Environment | Working Temp | -20℃ ~ +45℃ | |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) | |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing | |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH | |
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, ENEC EN61347-1, EN61347-2-13 approved | |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC | |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH | |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 | |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV | |
| Others | MTBF | 187100H, MIL-HDBK-217F @ 230VAC at full load and 25℃ ambient temperature |
