2 Channels Zigbee to Triac Dimmer

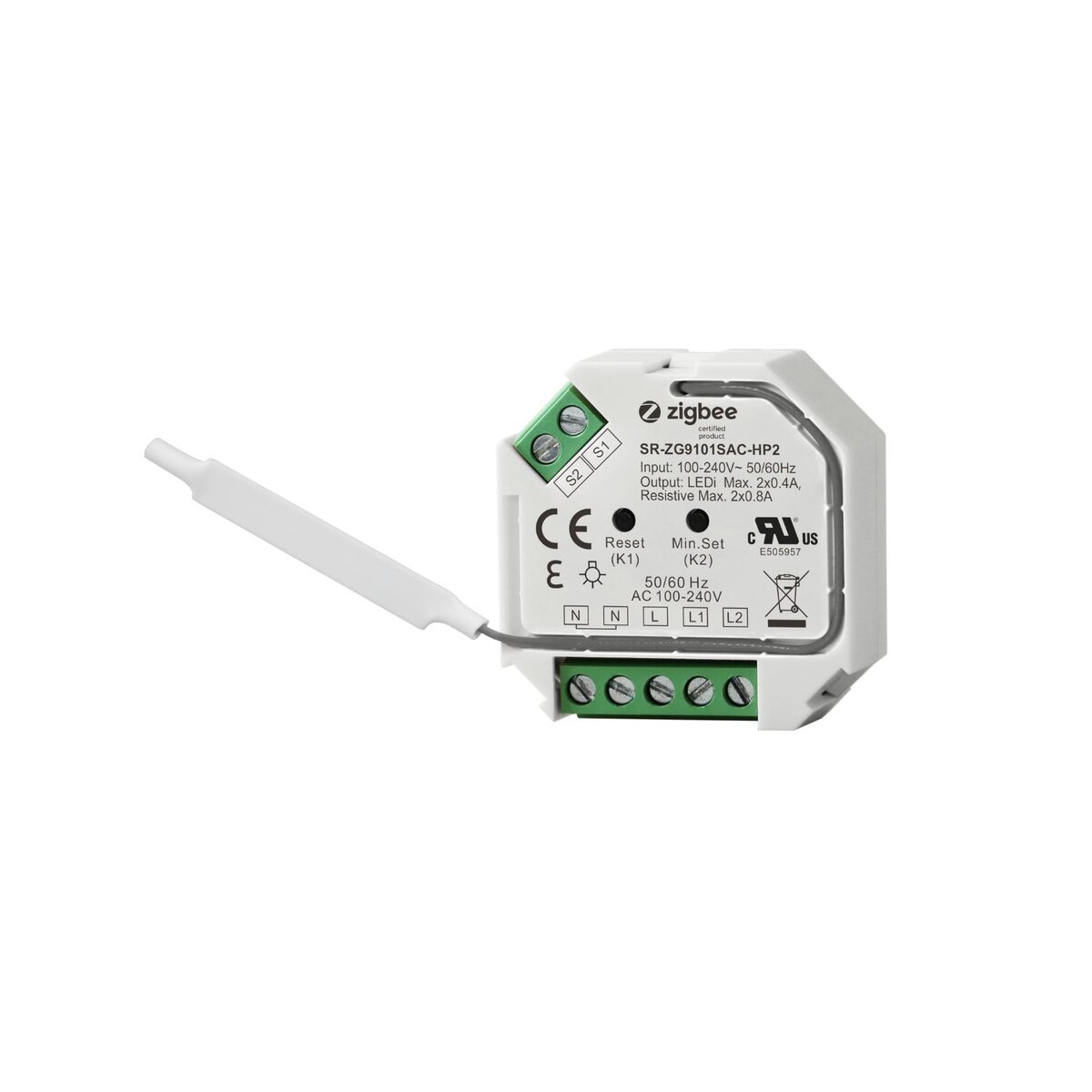

SR-ZG9101SAC-HP2

Product description

ZigBee 2 channels AC phase cut dimmer based on latest ZigBee 3.0 protocol
100-240VAC Wide Input and Output Voltage
Supports resistive loads and capacitive loads
2 channels output, 2 zigbee endpoints, 2 channels can be controlled individually
Input and Output with Screw Terminals, Safe and Reliable
Trailing edge dimming
Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
Compatible with universal ZigBee gateway that supports multiple endpoints
Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches
Mini Size, Easy to be Installed into a standard 86*86mm wall box
Radio Frequency : 2.4GHz
Waterproof grade: IP20

This compact ZigBee 3.0 dual-channel AC phase cut dimmer enables ON/OFF and smooth dimming control for triac dimmable LED lights or drivers. Featuring 100–240VAC wide input/output, independent dual channels, push switch control, and compatibility with universal ZigBee gateways, it delivers reliable, safe, and intelligent lighting management with easy installation into standard wall boxes.

Input Voltage	100-240VAC
Output Voltage	100-240VAC
Output Channel	2 Channels
Max. Load	Resistive load: max. 0.4A/CH Capacitive load: max. 0.8A/CH
Size(LxWxH)	45.5x45x20.3mm
