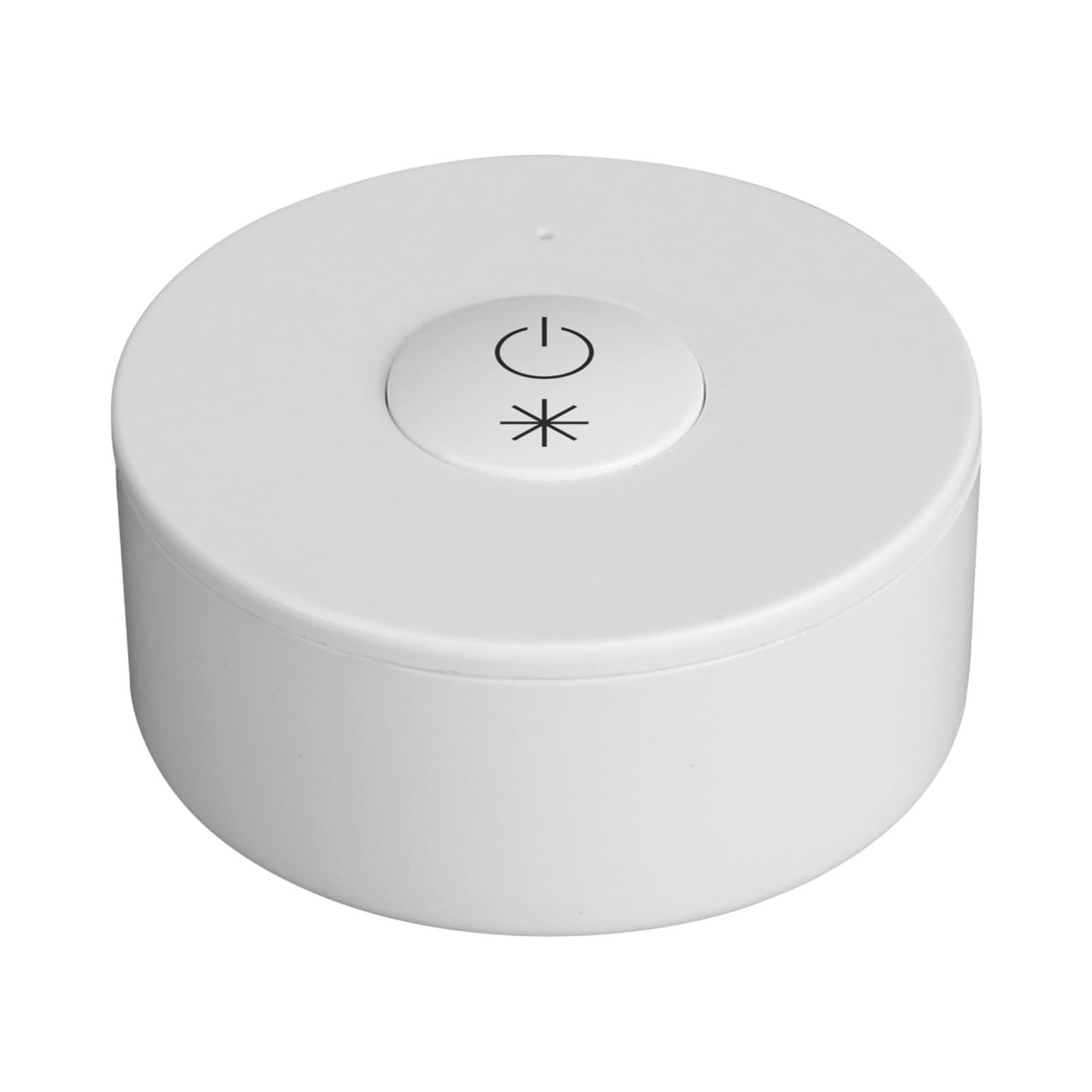

2.4G Mesh Mini Portable DIM & CCT Remote

SR-SB2807
Product description
  • 2.4G mesh mini portable DIM & CCT remote control
  • DIM & color temperature remote control to control 1 zone of receivers
  • Easy & quick pairing to the 2.4G mesh receivers by simply pushing the buttons
  • Mesh network for further control distance, receivers can transmit signal to each other
  • Each remote can control numerous receivers
  • Each receiver can be paired to max. 8 remote controls
  • The controlled receiver status can be quickly synchronized to the smart APP
  • Transmission range between every two neighbor devices up to 30m
  • 2.4G low power consumption technology, long battery life

The 2.4G Mesh Mini Portable DIM & CCT Remote Control is designed to control one zone of receivers with precise dimming and color temperature adjustments. It offers easy and quick pairing with 2.4G mesh receivers by simply pressing the buttons, and its mesh network extends the control distance by allowing receivers to transmit signals to one another. Each remote can control multiple receivers, and each receiver can be paired with up to eight remotes. The receiver status is quickly synchronized with the smart app, ensuring smooth operation. With a transmission range of up to 30m between neighboring devices and 2.4G low power consumption technology, this remote provides long battery life.

Protocol 2.4G Mesh
Operation Voltage 3VDC (CR2025)
Transmission Frequency 2.4GHz
Transmission Range (free field) 30m
Dimming Range 0.1%-100%
Dimension Φ38.5×14.8mm
Protection Grade IP20
