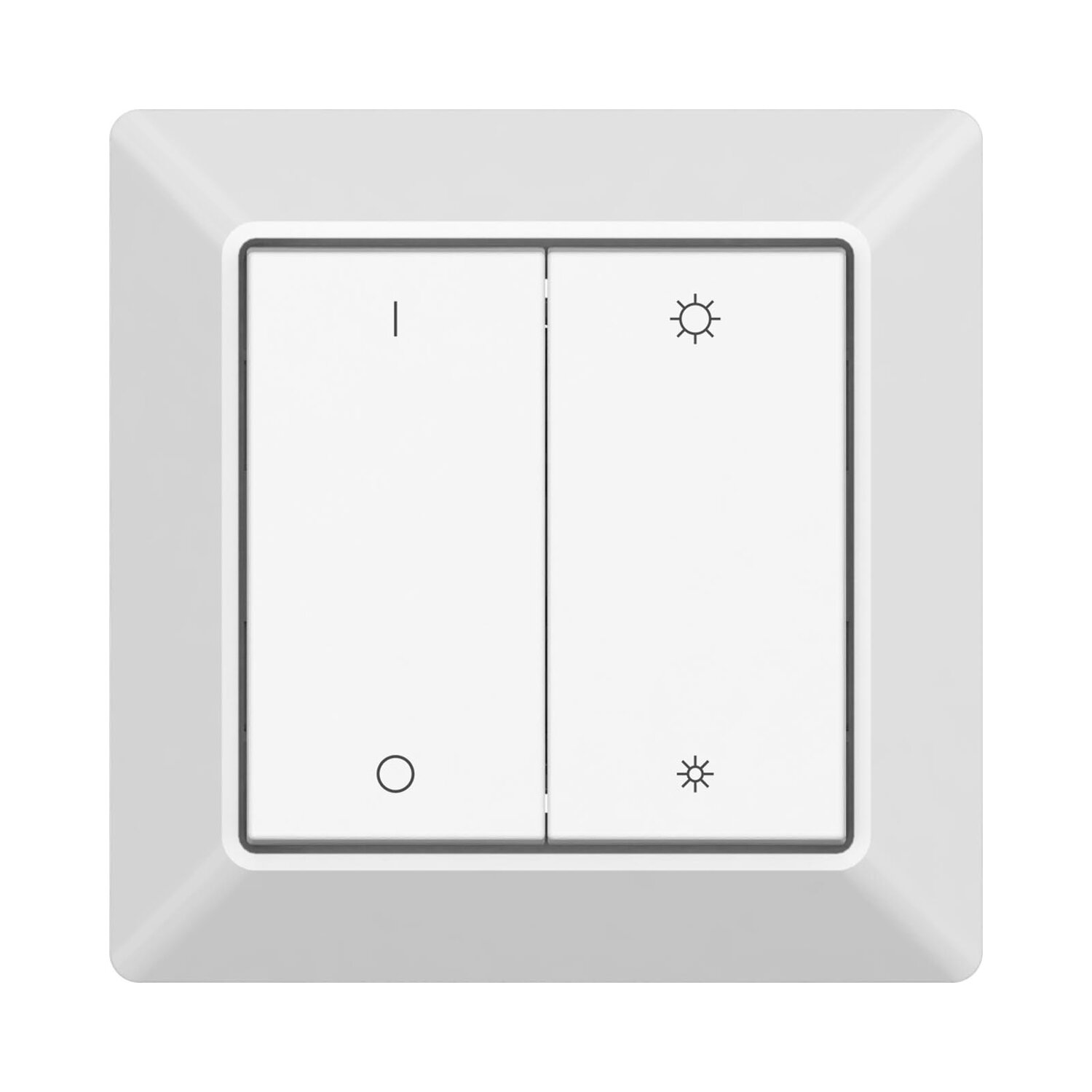

2.4G Mesh DIM Remote Controller

SR-SBP2801K4-DIM-E
Product description
  • DIM wall remote based on 2.4G Mesh
  • Battery powered, ultra low power consumption
  • Easy quick pairing to the 2.4G mesh receivers by simply pushing the buttons
  • Enables to control 1 zone of receivers
  • Mesh network for further control distance, receivers can transmit signal to each other
  • 2.4 GHz global operation
  • The controlled receiver status can be quickly synchronized to the smart APP
  • Transmission range between every two neighbor devices up to 30m
  • Each receiver can be paired to max.8 remote controls
  • Enables to control universal DIM 2.4G mesh light devices
  • Standard size, compatible with existing EU size frame

Product Description. This RF+Bluetooth DIM Wall Remote Controller is based on RF+Bluetooth Mesh.
It is battery-powered, so it has ultra low power consumption. This controller is easily and quickly pair to the RF+Bluetooth receivers by simply pushing the buttons.
It enables to control 1 zone of receivers, and enables to control universal DIM RF+Bluetooth light devices. With mesh network for further control distance, receivers can transmit signal to each other, and each receiver can be paired to max. 8 remote controls.
The controller’s transmission frequency is 2.4 GHz, and the transmission range between every two neighbor devices up to 30m. Besides, with standard size, this control is compatible with existing EU size frame.

Protocol 2.4G Mesh
Power Supply 3VDC(1xCR2430 battery)
Transmission Frequency 2.4GHz
Transmission Range (free field) 30m
Protection Type IP20
Dimming Range 0.1%-100%
Dimensions 80.5×80.5×14.7mm / 86x86x14mm
