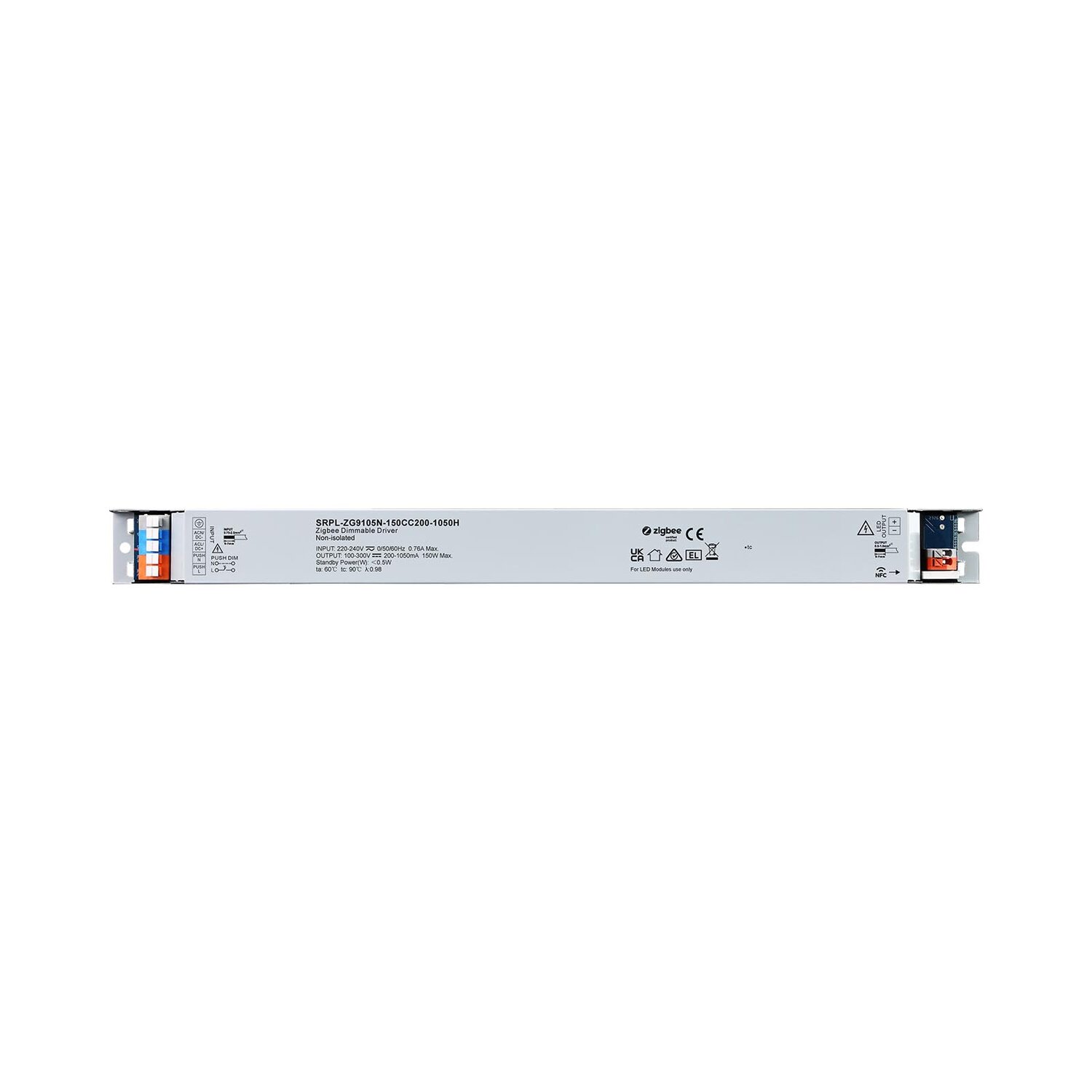

The 150W 1CH Zigbee NFC LED Driver (Constant Current) is a dimmable LED driver based on Zigbee 3.0 protocol, featuring a linear metal housing with a maximum output power of 150W. The current is selectable from 200-1050mA via an NFC program tool, with the minimum current gear adjustable down to 0.1mA. It supports various functions like dimming curve, power on state, soft start, and soft off, all configurable through the NFC program tool. This driver offers high power factor and efficiency and is designed for switching and dimming LED lighting luminaires. It supports amplitude/CCR dimming for smooth and deep dimming. As a Zigbee end device, it supports Touchlink commissioning and can directly pair with a compatible Zigbee remote via Touchlink. It also supports find and bind mode to bind a Zigbee remote and can bind up to 20 Zigbee green power switches. The driver is compatible with universal Zigbee gateway products and is rated IP20, making it suitable for indoor LED lighting applications.
| Output | LED Channel | 1 |
|---|---|---|
| Output | DC Voltage | 100-300V |
| Output | Current | 200-1050mA via NFC setting; Min.current gear lower to 0.1mA |
| Output | Current Accuracy | ±3%@ full load |
| Output | Rated Power | Max. 150W |
| Input | Voltage Range | 220-240VAC/VDC |
| Input | Frequency Range | 0/50/60Hz |
| Input | Power Factor (Typ.) | > 0.98 @ 230VAC Full load |
| Input | Total Harmonic Distortion | ≤ THD 10% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | ＞92% @ 230VAC full load |
| Input | AC Current (Typ.) | 0.64A @ 230VAC |
| Input | Inrush Current (Typ.) | Max. 26.8A at 230VAC; 369μs duration |
| Input | Leakage Current | < 5mA /230VAC |
| Input | Standby Power Consumption | ＜0.5W |
| Input | Anti Surge | L-N:4KV/ L-N-G: 4KV |
| Control | Dimming Interface | Zigbee 3.0 |
| Control | Dimming Range | 0.1%-100%@ Max current |
| Control | Dimming Method | Amplitude/CCR dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +60℃ |
| Environment | Max. Case Temp | Tc=90℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13, GB 19510.1-2009, GB 19510.14-2009 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 355x30x21mm (L*W*H) |
| Others | Warranty | 5 Years |
