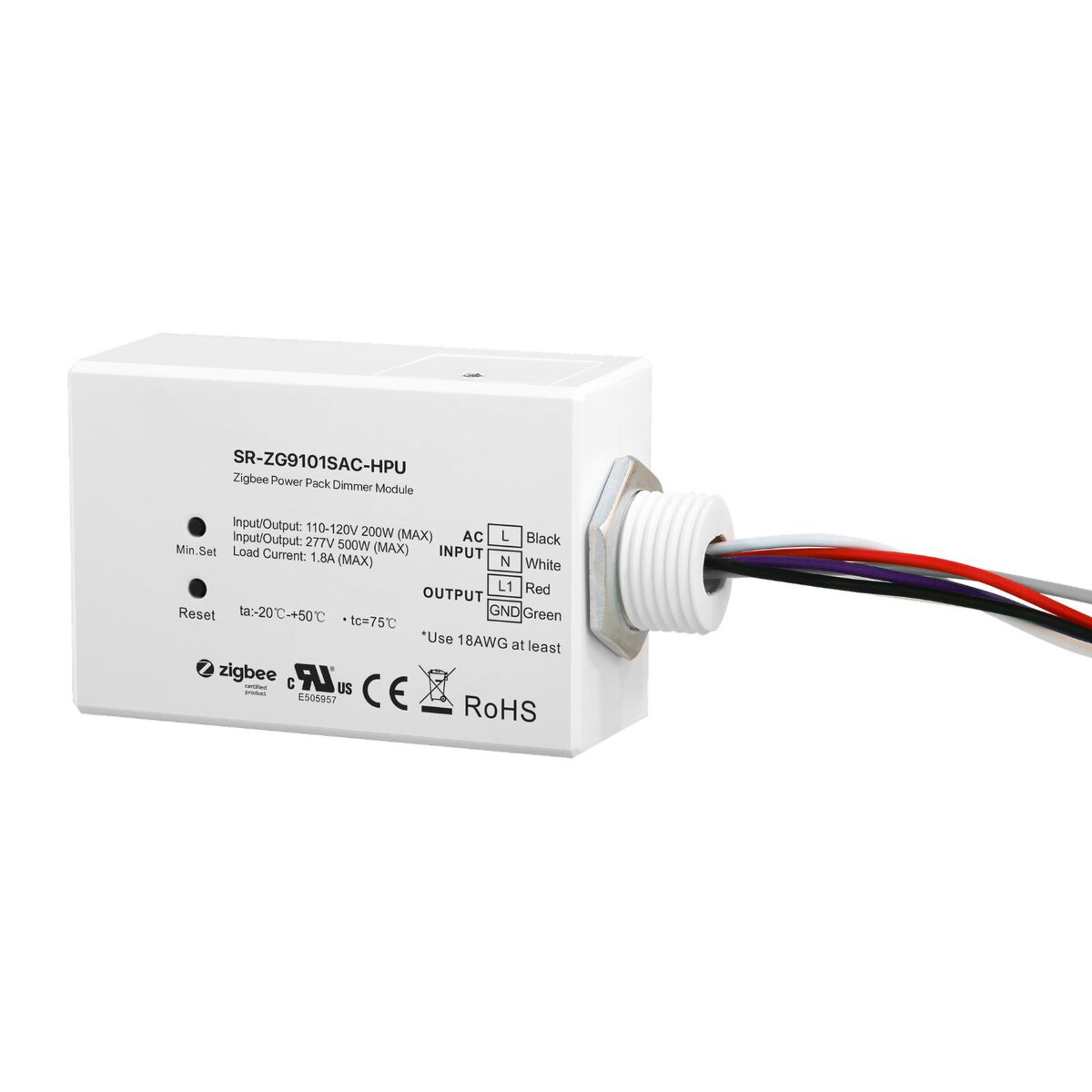

AC Phase Cut ZigBee Dimmer

SR-ZG9101SAC-HPU

Product description

ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
100-277VAC Wide Input and Output Voltage
Supports resistive loads and capacitive loads
1 Channel Output, Up to 500W
No visible terminals, pre-wired, safe and reliable
Both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge
Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
ZigBee end device that supports Touchlink commissioning
Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
Supports self-forming zigbee network without coordinator and add other devices to the network
Supports find and bind mode to bind a ZigBee remote
Supports zigbee green power and can bind max. 20 zigbee green power remotes
Compatible with universal ZigBee gateway products
Mini Size, Easy to be Installed into a standard wall box
Radio Frequency : 2.4GHz
Waterproof grade: IP20

The ZigBee AC Phase Cut Dimmer is a compact and versatile lighting control solution designed for smooth, reliable dimming in smart residential and commercial environments. Based on the latest ZigBee 3.0 protocol, it supports a wide 100–277VAC input/output range and delivers up to 500W single-channel output for both resistive and capacitive loads. Available in both leading-edge and trailing-edge dimming modes, it provides precise ON/OFF and brightness control for TRIAC dimmable LED lamps and drivers. The dimmer supports Touchlink commissioning, Find & Bind, self-forming ZigBee networking, and ZigBee Green Power. Compatible with universal ZigBee gateways, its pre-wired, terminal-free design and compact size enable safe, quick installation into a standard wall box.

Input Voltage	100-277VAC
Output Voltage	100-277VAC
Output Current	1.8A max
Size(LxWxH)	104.5x55x31mm
