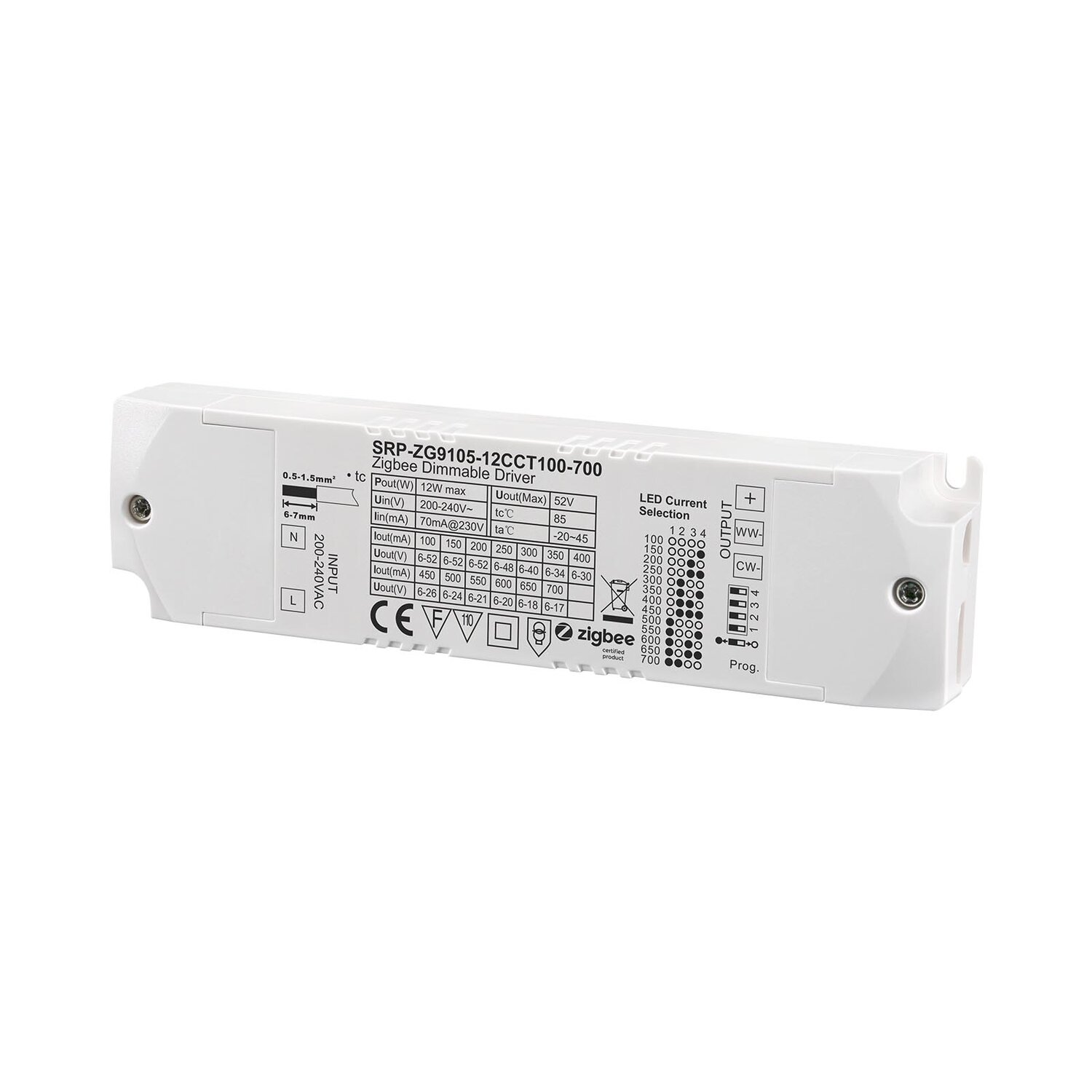

SRP-ZG9105-12CCT100-700 is a Dimmable 12w LED Driver with 2 channels constant current output and adjustable current from 100ma to 700ma by DIP switches, which enables it to be suitable for CCT LED lights with different current. It is designed with 200-240VAC input.
Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise.
The LED driver is designed with ZigBee 3.0 control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The drivers can be compatible with universal ZigBee gateway or coordinator.
In addition, the ZigBee device supports TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes. The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink.
It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
| Output | LED Channel | 2 |
|---|---|---|
| Output | DC Voltage | 6-52V DC |
| Output | Current | Current option from100~700mA, 50mA per gear |
| Output | Current Accuracy | ±3% |
| Output | Rated Power | Max. 12W |
| Input | Voltage Range | 200-240V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | ＞ 0.95 @ 230VAC Full load > |
| Input | Total Harmonic Distortion | THD 12% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | > 80%@230VAC full load |
| Input | AC Current (Typ.) | 0.07A @ 230VAC |
| Input | Inrush Current (Typ.) | COLD START max. 8A at 230VAC |
| Input | Leakage Current Leakage Current | ＜ 0.5mA/230VAC |
| Input | Standby Power Consumption | ＜ 0.5W |
| Input | Anti Surge | L-N:0.5KV |
| Control | Dimming Interface | Zigbee 3.0 |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Hybrid (PWM+CCR) + dimming |
| Control | Dimming Curve | Linear/ Logarithmic optional |
| Protection | Short Circuit | Yes, recovers automatically after fault condition is removed |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after temperature drop |
| Environment | Working Temp | -25℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃(Ta=”45℃”) |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | EN61347-1, EN61347-2-13 |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / RH 70% 25℃ / |
| Safety & EMC | EMC Emission | En55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | En61547, EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | 191350H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 135x35x20mm (L*W*H) |
| Others | Warranty | 5 Years |
