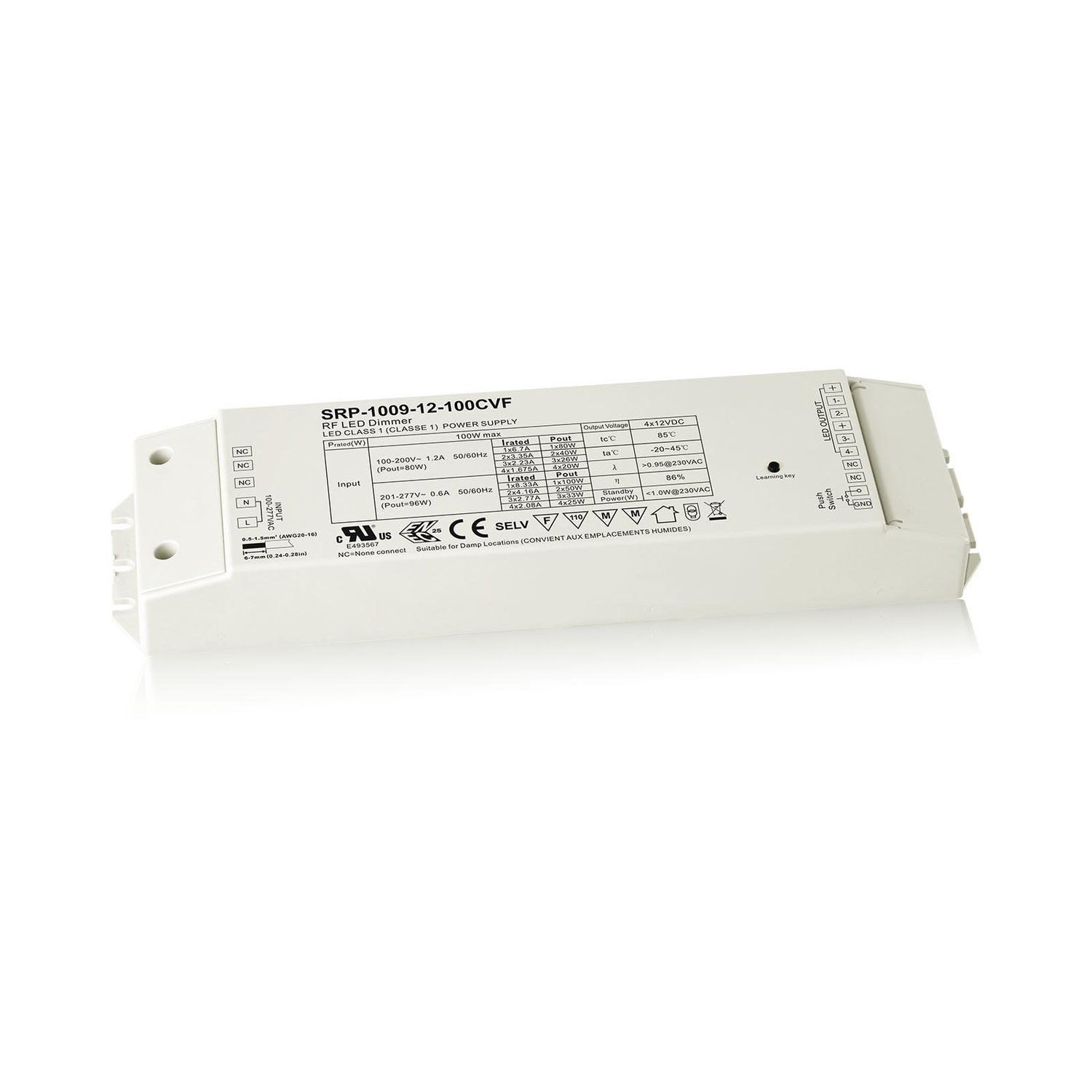

SRP-1009-12-100CVF is an UL and ENEC approved 100W dimmable PWM RGB LED driver with 4 channels 12VDC constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%.
It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The PWM LED driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes.
While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. The driver can control single color, tunable white, RGB/RGBW LED lighting.
UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
| Output | LED Channel | 4 |
|---|---|---|
| Output | DC Voltage | 12V DC |
| Output | Max. Current | Max. 8.33A/CH, CH1+CH2+CH3+CH4=8.33A |
| Output | Voltage Tolerance | ±1% |
| Output | Rated Power | max. 100W |
| Input | Voltage Range | 100-277V AC |
| Input | Frequency Range | 50/60Hz |
| Input | Power Factor (Typ.) | > 0.90 @ 230VAC |
| Input | Total Harmonic Distortion | ≤ THD 15% (@ full load / 230VAC) |
| Input | Efficiency (Typ.) | 90% @ 230VAC full load |
| Input | AC Current (Typ.) | 1.2A @ 100VAC, 0.5A @ 230VAC |
| Input | Inrush Current (Typ.) | COLD START Max. 50A at 230VAC |
| Input | Leakage Current | < 0.5mA /230VAC |
| Control | Dimming Interface | RF Wireless/PUSH LV |
| Control | Dimming Range | 0.1%-100% |
| Control | Dimming Method | Pulse Width Modulation |
| Protection | Over Current | Yes, recovers automatically after fault condition is removed |
| Protection | Over Temperature | Yes, recovers automatically after fault condition is removed |
| Environment | Working Temp | -20℃ ~ +45℃ |
| Environment | Max. Case Temp | 85℃ |
| Environment | Working Humidity | 10% ~ 95% RH non-condensing |
| Environment | Storage Temp. & Humidity | -40℃ ~ +80℃，10%~95% RH |
| Safety & EMC | Safety Standards | UL8750, CAN/CSA C22.2 No. 250.13-14, EN61347-1, EN61347-2-13 approved |
| Safety & EMC | Withstand Voltage | I/P-O/P: 3.75KVAC |
| Safety & EMC | Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH |
| Safety & EMC | EMC Emission | EN55015, EN61000-3-2, EN61000-3-3 |
| Safety & EMC | EMC Immunity | EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV |
| Others | MTBF | 186700H, MIL-HDBK-217F @ 230VAC full load and 25℃ ambient temperature |
| Others | Dimension | 244*64*32mm (L*W*H) |
