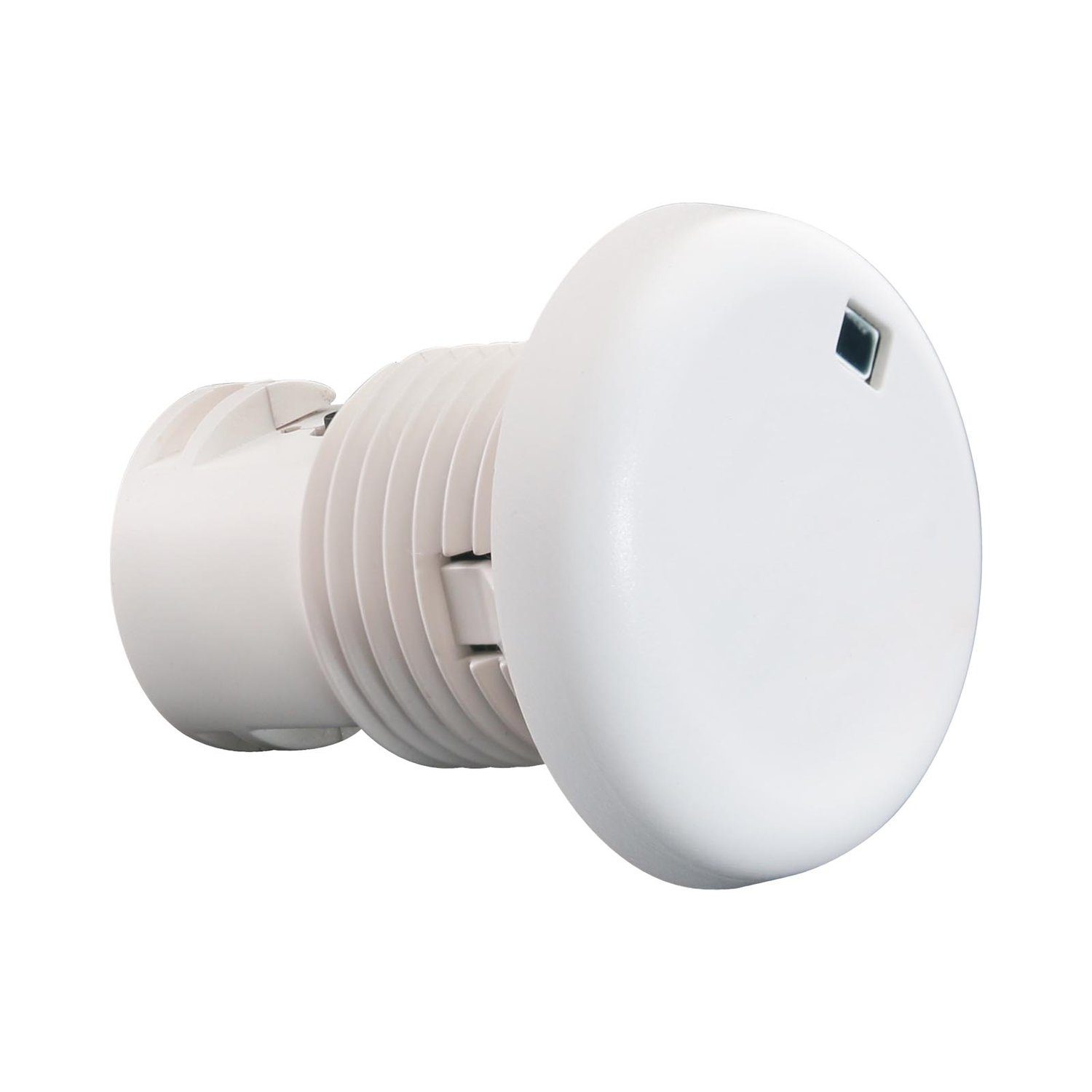

The 0-10V BLE Fixture-integrated Sensor-less Controller is a Bluetooth® mesh network-enabled device that converts Bluetooth signals to 0-10V output, offering a built-in 20mA 0-10V signal output.
Its mesh network allows for extended control range by transmitting received signals to neighboring devices, enabling broadcast control of all devices on the 0-10V line. The controller supports kinetic energy switches and EnOcean switches, such as EWSSB and EWSDB.
In typical indoor environments, the wireless communication range is between 20m to 25m, with the actual range depending on field installation. It features an on-board antenna and comes with a 5-year warranty.
| Input | Power | 12-24VDC |
|---|---|---|
| Input | Signal | Bluetooth |
| Output, 0/1-10V | Current | Max. 20mA |
| Control | Dimming Curve | Logarithmic |
| Control | Dimming Method | PWM |
| Environment | Operating Temperature | 0℃~+45℃ |
| Environment | Relative Humidity | 8% to 80% |
| Others | Size | See dimensions |
