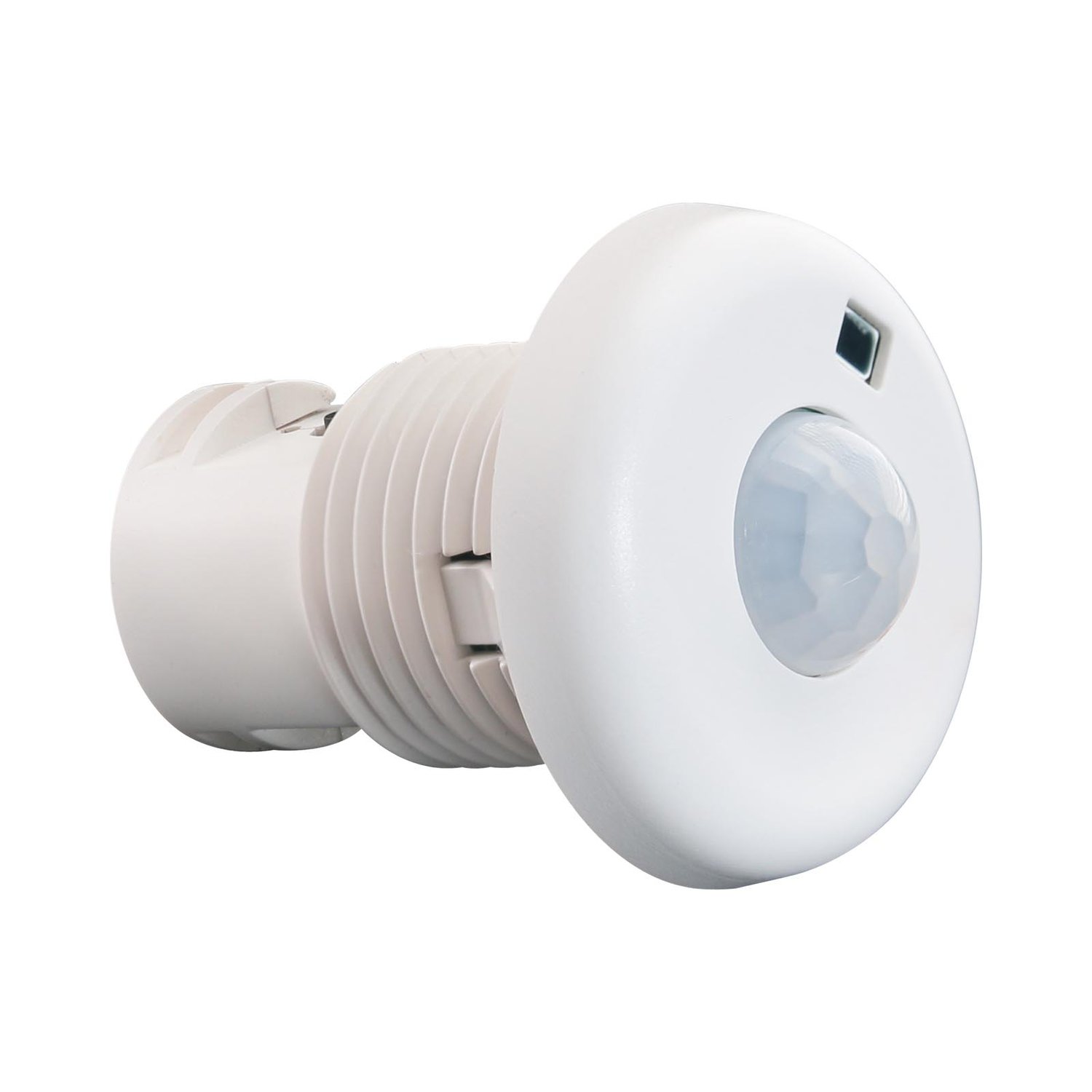

The 0-10V BLE Fixture-integrated PIR Sensor Controller is a Bluetooth to 0-10V signal controller operating on a Bluetooth® mesh network, featuring a built-in 20mA 0-10V output and enabling broadcast control of all devices on the 0-10V line via a mobile application. It supports kinetic energy switches and EnOcean switches EWSSB and EWSDB, offers a typical indoor wireless range of 20 to 25 meters depending on installation, consumes less than 0.5W in standby to meet the latest ERP regulation, and includes an onboard antenna and magnetic reset function by touching the sensor top for five seconds.
| Input | Power | 12-24VDC |
|---|---|---|
| Input | Signal | Bluetooth |
| Output, 0/1-10V | Current | Max. 20mA |
| Control | Dimming Curve | Logarithmic |
| Control | Dimming Method | PWM |
| Environment | Operating Temperature | 0℃~+45℃ |
| Environment | Relative Humidity | 8% to 80% |
| Others | Size | See dimensions |
