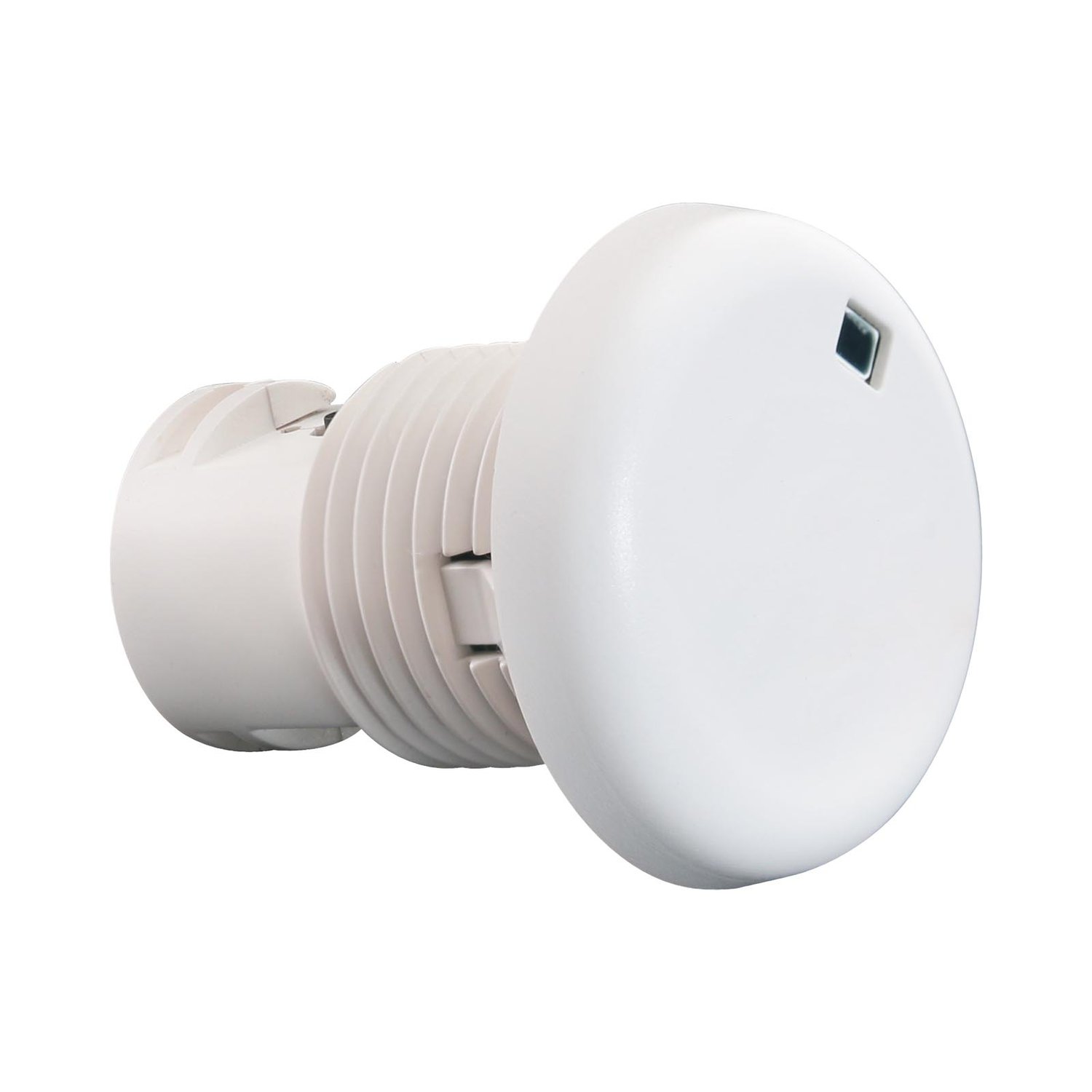

The 0-10V BLE Fixture-integrated Microwave Sensor Controller is a Bluetooth to 0-10V signal converter operating on a Bluetooth® mesh network, featuring a built-in 20mA 0-10V output and enabling broadcast control of all devices on the 0-10V line through a mobile application.
It supports kinetic energy switches and EnOcean switches EWSSB and EWSDB, offers a typical indoor wireless communication range of 20 to 25 meters depending on installation conditions, has standby power consumption below 0.5W to comply with the latest ERP regulation, and includes an onboard antenna and magnetic reset function by touching the sensor top for five seconds.
| Input | Power | 12-24VDC |
|---|---|---|
| Input | Signal | Bluetooth |
| Output, 0/1-10V | Current | Max. 20mA |
| Control | Dimming Curve | Logarithmic |
| Control | Dimming Method | PWM |
| Environment | Operating Temperature | 0℃~+45℃ |
| Environment | Relative Humidity | 8% to 80% |
| Others | Size | See dimensions |
