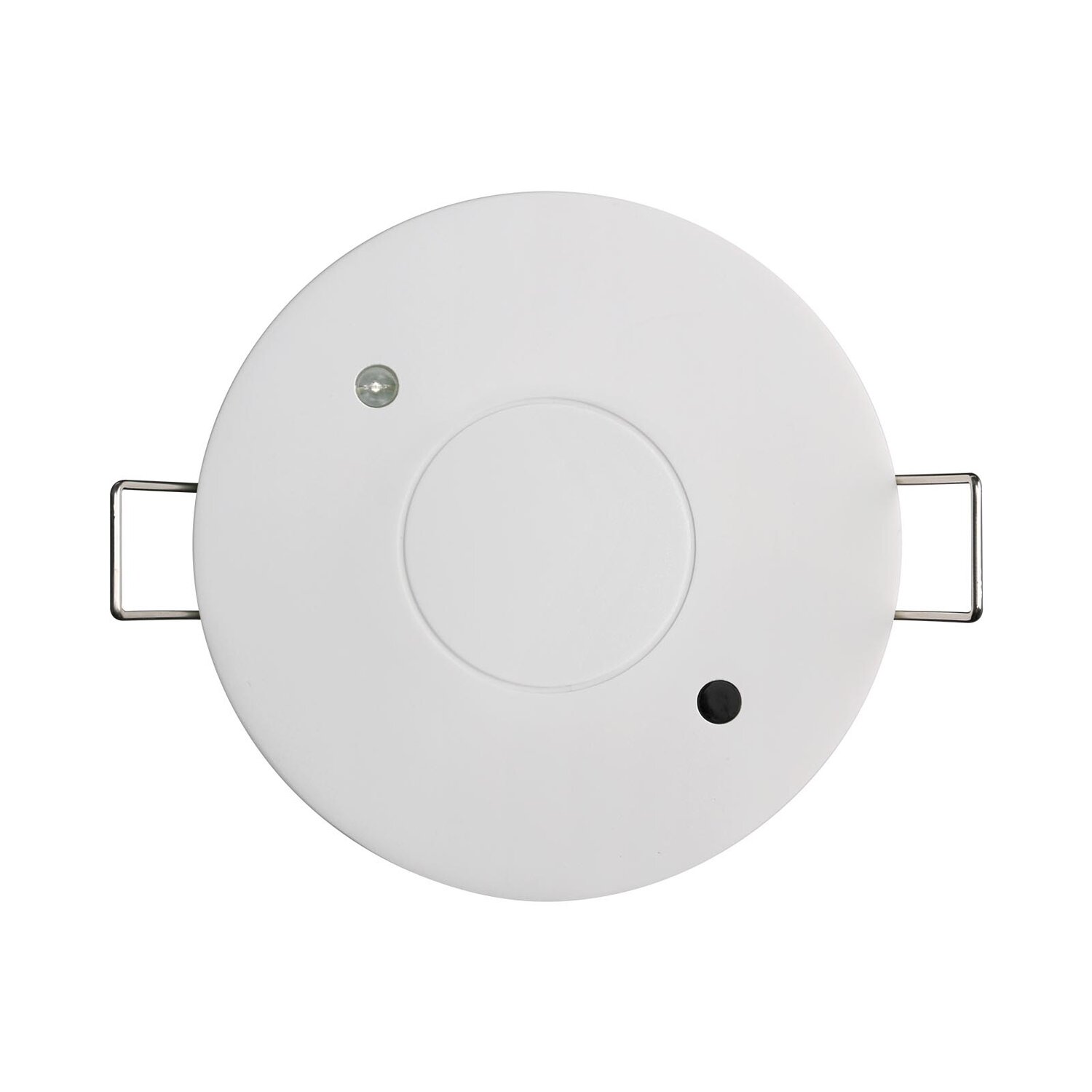

0-10V BLE Ceiling Mounted Microwave Sensor Controller

SR-SV9030A-MW-V

Product description

0-10V BLE ceiling mounted sensor controller, Buetooth® mesh network
Microwave sensing with daylight harvesting function
Built-in 20mA 0-10V signal output
Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
All devices on 0-10V line are broadcast controlled by mobile application
Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
In typical indoor environment, the range for wireless communication is 20m to 25m.Actual range is dependent on field installation.
On-board antenna
Available with Magnetic reset (Touch the top part of sensor for 5 seconds)
Waterproof grade: IP20
5years warranty

The 0-10V BLE Ceiling Mounted Microwave Sensor Controller is a Bluetooth® mesh-enabled device featuring microwave sensing with daylight harvesting and a built-in 20mA 0-10V signal output, enabling broadcast control of all devices on the 0-10V line via mobile application.
It supports kinetic energy switches and EnOcean switches EWSSB and EWSDB, includes an onboard antenna, offers a typical indoor wireless communication range of 20 to 25 meters depending on installation, and provides a magnetic reset function by touching the top of the sensor for five seconds.

Input	Power	12-24VDC
Input	Signal	Bluetooth
Output, 0/1-10V	Current	Max. 20mA
Control	Dimming Curve	Logarithmic
Control	Dimming Method	PWM
Environment	Operating Temperature	0℃~+45℃
Environment	Relative Humidity	8% to 80%
Others	Size	See dimensions
