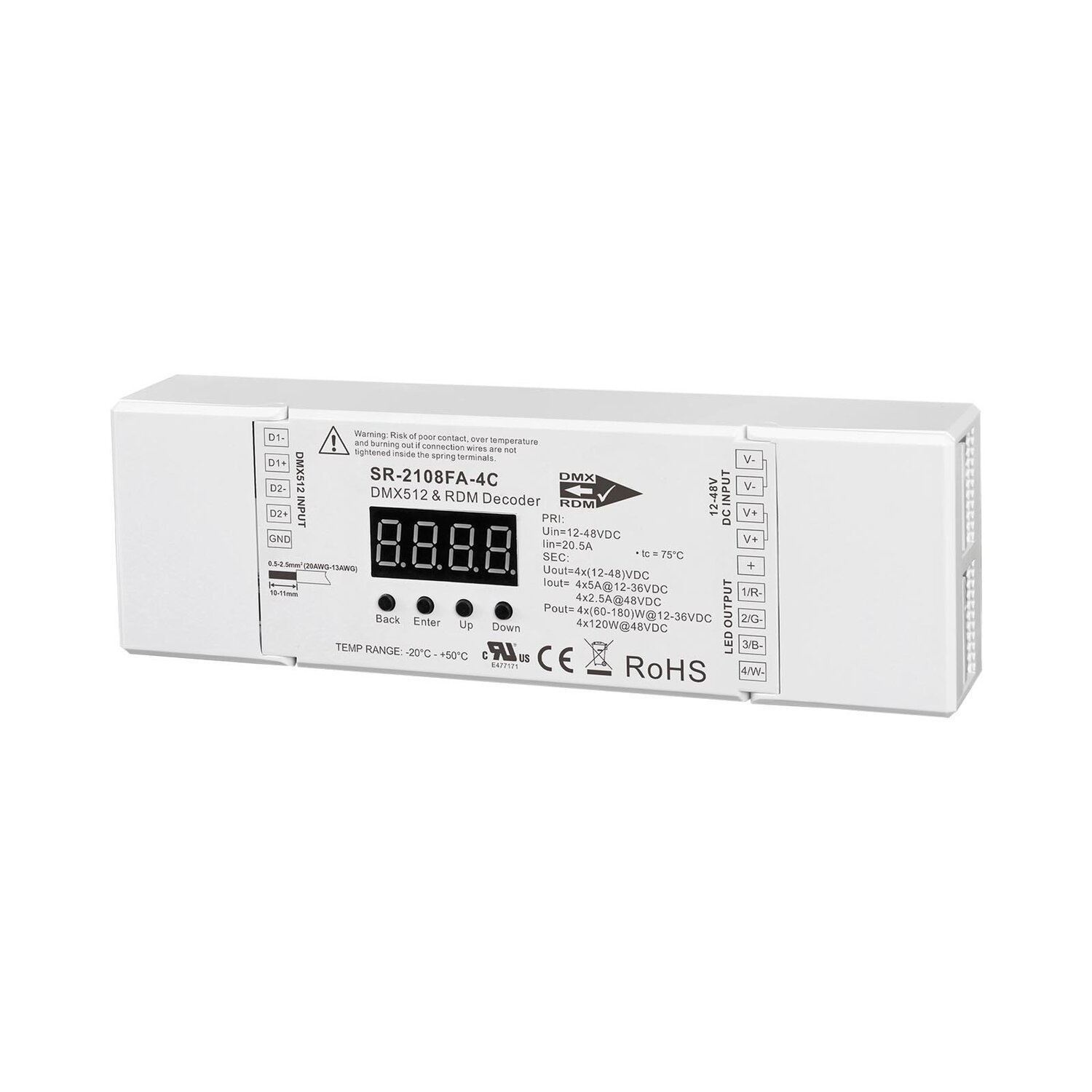

The Ultra-Pro 4CH RDM DMX512 Decoder is a DMX512 RDM decoder that allows for intercommunication between the DMX master and the decoder. It features a digital display for easy viewing and setting of the DMX address.
With a total of four PWM output channels in a common anode configuration, the DMX channel quantity can be set between 1CH and 4CH. The device supports adjustable PWM output resolution of 8bit or 16bit and offers a PWM frequency range from 500Hz to 30kHz.
The output dimming curve gamma value can be adjusted between 0.1 and 9.9, and the decoding mode is settable to suit various applications.
| Non. | 1 | 2 | 3 |
|---|---|---|---|
| Voltage Input | 12-36VDC | 12-48VDC | 12-48VDC |
| Courant de sortie | 4x5A | 4x350mA | 4x700mA |
| Puissance de sortie | 4x(60-180)W | 4x(4.2-16.8)W | 4x(8.4-33.6)W |
| Remarques | Tension constante | Courant constant | Courant constant |
| Taille (LxLxH) | 170×53.4x28mm | 170×53.4x28mm | 170×53.4x28mm |
