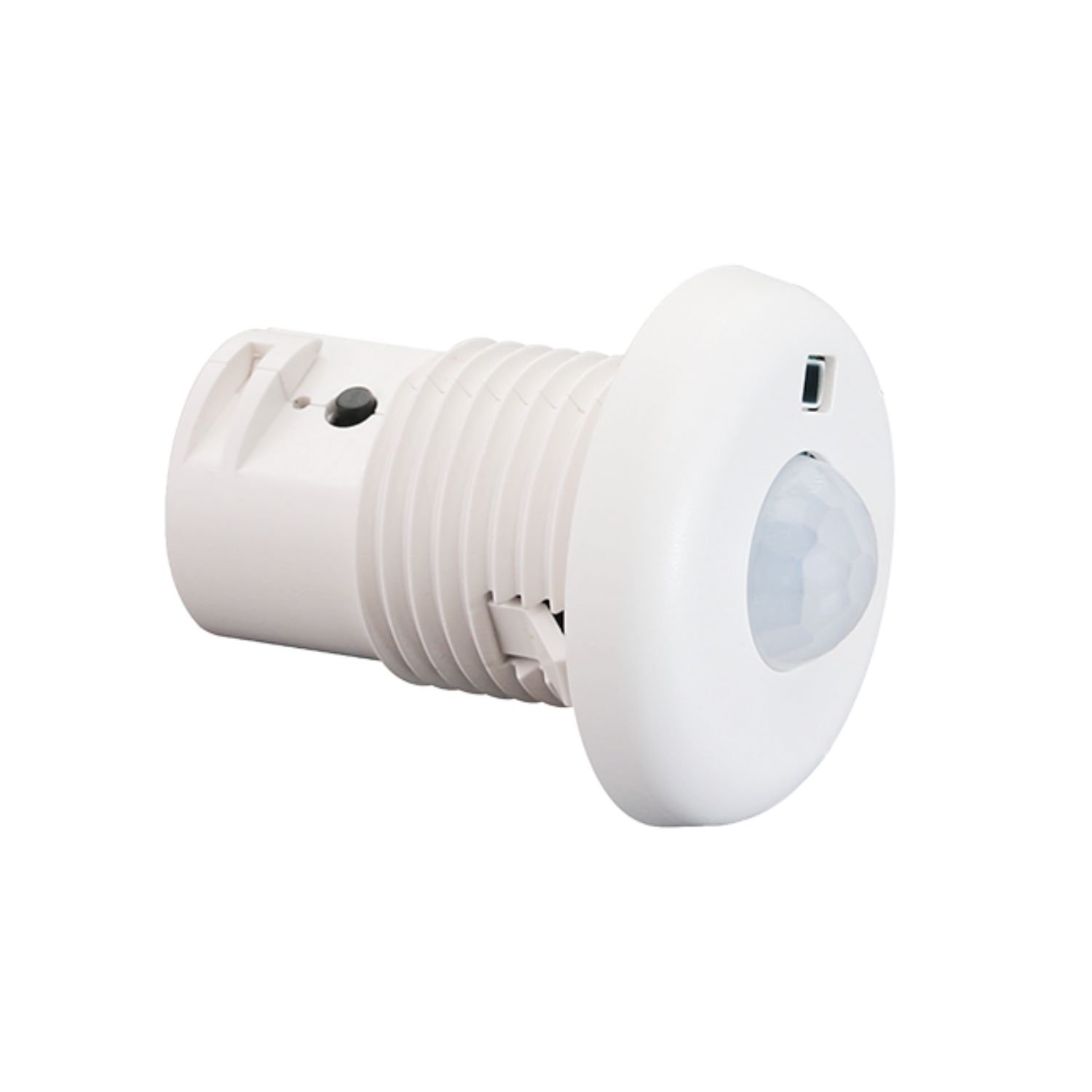

Product Description. The fixture-Integrated sensor combines motion sensing, daylight harvesting, 0-10V dimming and Casambi radio technology into a small package that fits into various luminaires. When used with 0-10V dim-to-off LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures with minimal engineering effort. The sensor-equipped luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. Casambi Technology Explained The Casambi technology provides a mesh network where all the intelligence of the system is replicated in every node and, in such a way, creates a system with no single point of failure. In this kind of fully distributed architecture, any unit can go offline and catch up from others when they return back online.
| Dimensions / Poids | Voir Dimensions / 12,3 g (sans contre-écrou) / 21,3 g (avec contre-écrou) |
|---|---|
| Montage (orifice du luminaire) | Découpe de 1/2 po (22,2-22,3 mm) |
| Matériau / Couleur | ABS / Blanc |
| Connecteurs / Calibre de fil | Connecteurs à 3 broches / 24-18 AWG (0,2-0,75 mm2) |
| Longueur de bande | 0,28-0,35 po / 7-9 mm |
| Tension d'entrée | 12/24 VCC |
| Consommation de courant | < 30 mA (lorsque la méthode de gradation = sink) |
| Commande de gradation | Analogique (0-10 V) |
| Sortie de gradation | 4 mA (récepteur) / 20 mA (source) |
| Indicateurs d'état | Rouge (détection de mouvement) |
| Fréquence de l'émetteur-récepteur | Bande ISM 2,4 GHz |
| Portée radio | 164 pieds (50m) en champ libre |
| Certification radio | FCC/IC, CE |
| Type de détection de présence | Capteur PIR |
| Plage de détection Lux | 0-1000 lux |
| Hauteur de montage | Hauteur recommandée : 2,5 m |
| Angle de détection | 130° |
| Plage de détection | Jusqu'à 5 mètres à une hauteur d'installation de 2,5 m |
| Plage de température de fonctionnement | 32 °F à 104 °F / 0 °C à 40 °C (utilisation en intérieur uniquement) |
| Humidité de fonctionnement | 0-95% (sans condensation) |
| Certification de sécurité | Homologué cULus, CE |
