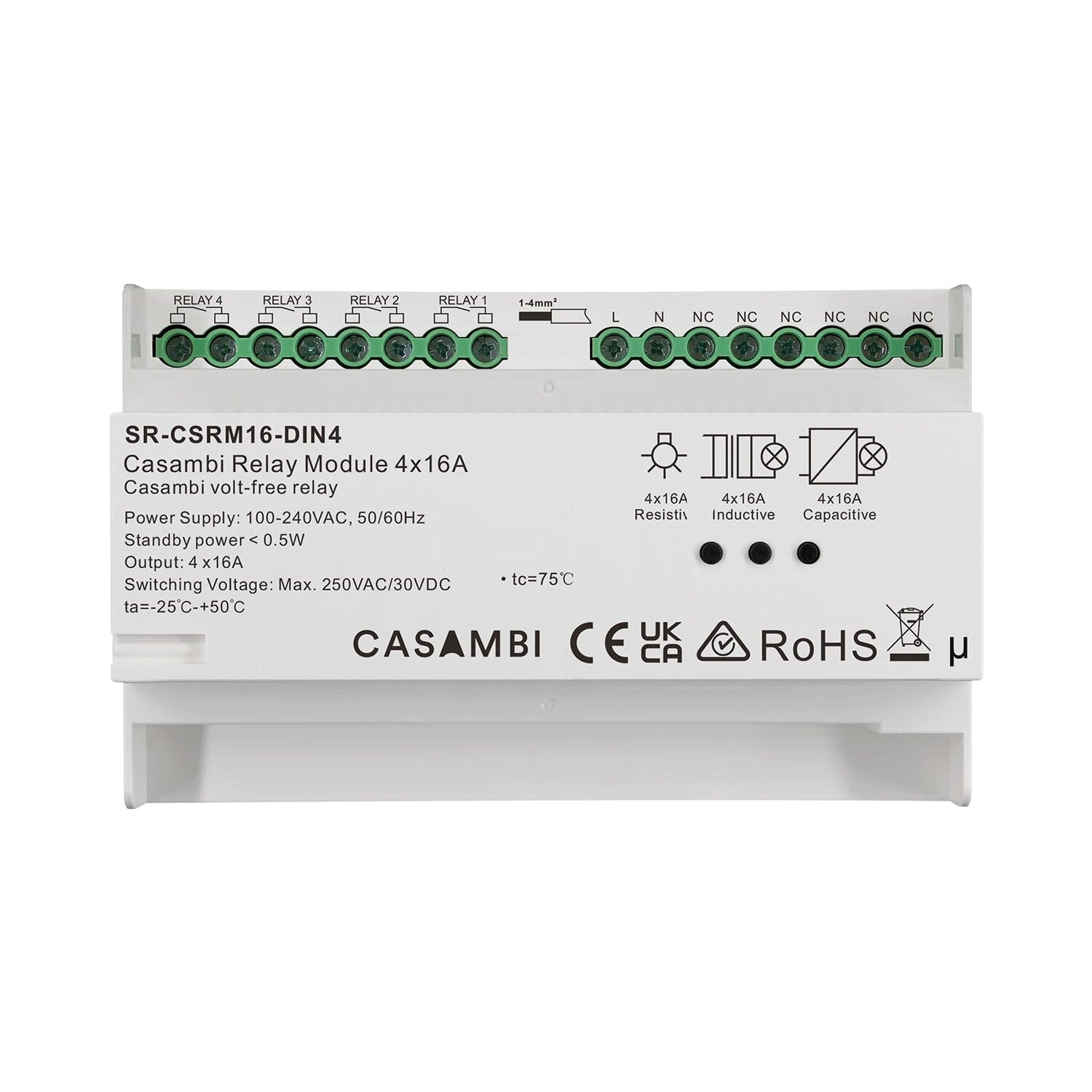

The 4 Channels DIN Rail Casambi Relay is a versatile relay module powered by a 100-240VAC supply, designed to control four standard contactors. Each of its four endpoints can be independently controlled via the Casambi app, remotes, wall switches, or kinetic switches.
The module features zero crossing detection, enhancing the relay’s lifespan by reducing wear. With a typical mesh range of over 50 meters in an indoor environment, this relay is ideal for seamless control and automation.
It is easily installed on a standard 35mm DIN rail for quick setup and integration.
| Tension d'entrée | 100-240VAC | ||
|---|---|---|---|
| Output Switching voltage AC | Max. 250V | ||
| Output Switching voltage DC | Max. 30V | ||
| Courant de sortie | Resistive load: max. 4*16A Inductive load: max. 4*16A Capacitive load: max. 4*16A | ||
| Output Type of contact | 4 normally closed | ||
| Type de charge compatible | Resistive loads Conventional incandescent and halogen light sources | Capacitive loads Fluorescent tube lamp (compact / with electronic ballast), electronic transformer, LED | Inductive loads Ferromagnetic transformers |
| Charge maximale | 4*3680W @ 230VAC 4*1760W @ 110VAC |
4*3680W @ 230VAC 4*1760W @ 110VAC |
4*3680W @ 230VAC 4*1760W @ 110VAC |
