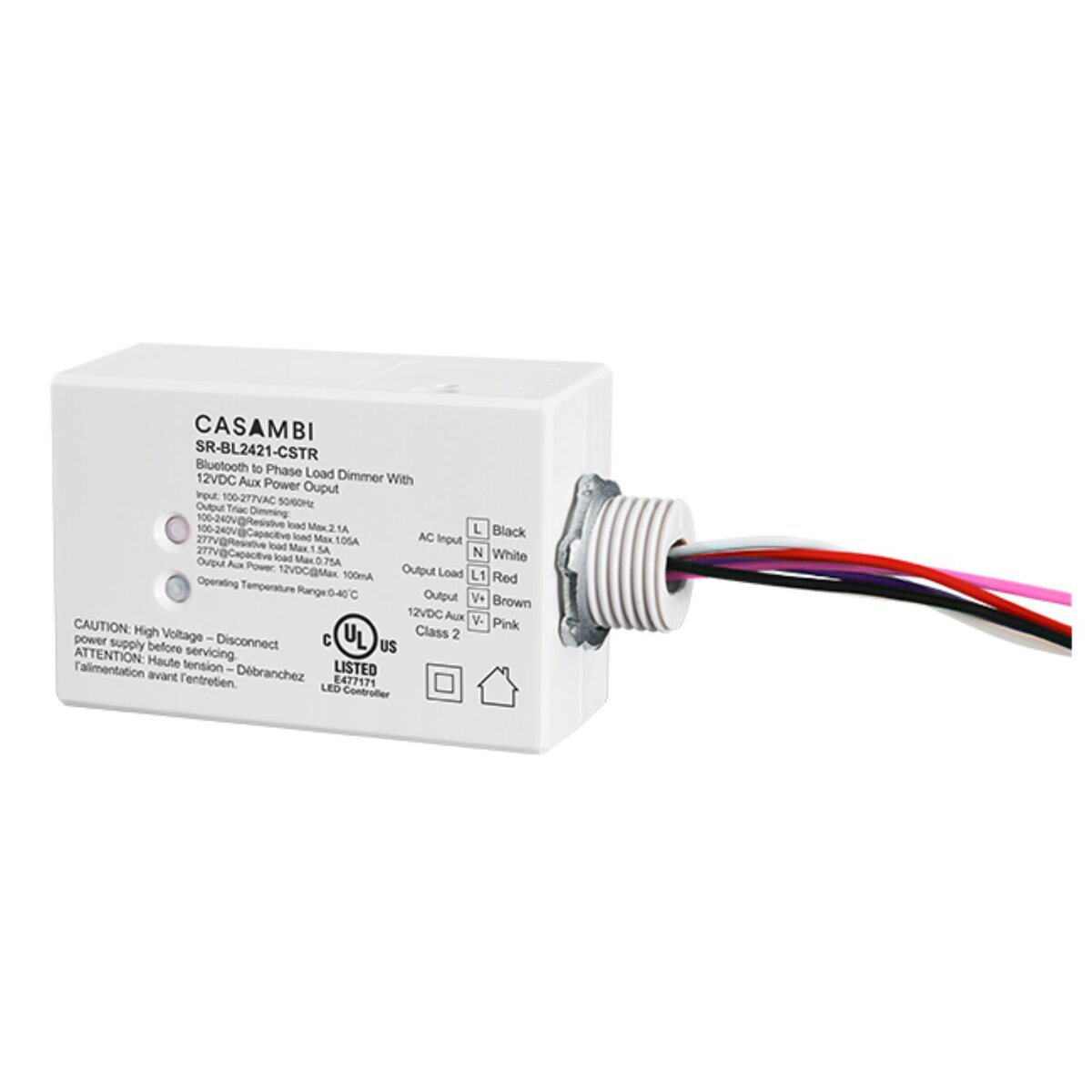

The Casambi Phase Load Dimmer with 12V Aux Output is a versatile and reliable solution for managing lighting loads. Featuring a standard 1/2″ knockout design, it easily integrates into junction boxes and supports a maximum load of 100MA at 12V. This dimmer includes a built-in IoT/Sensor application interface, and it works seamlessly with BLE to 0-10V load dimmers for enhanced convenience and flexibility. It supports reverse edge (trailing edge) type drivers and can be wirelessly controlled through the Casambi app, Casambi switches, or kinetic switches. Equipped with an external antenna, it offers a typical mesh range of over 50 meters line of sight for indoor use. This product is UL listed (PAZX category) and UL 2043 Plenum rated, and it comes with a 5-year warranty.
| Entrada | Potencia | 100-277 VCA |
|---|---|---|
| Salida, alimentación auxiliar | VDC/mA | 12V, Máx. 100mA |
| Salida, atenuación de fase | Tensión de línea | 100-277 VCA |
| Actual | Máx. 2.1A | |
| Medio ambiente | Temperatura de funcionamiento | 0°C-+40℃ |
| Humedad relativa | 8% a 80% | |
| Otros | Talla | 82,5 × 55 × 31 mm |
| Símbolo de carga | Tipo de carga | Carga máxima |
| Iluminación incandescente HV Lámparas halógenas | 1*252W@120V , 1*504W@240V 1*415W@277V | |
| Iluminación halógena de bajo voltaje con transformadores electrónicos. | 1*252W@120V , 1*504W@240V 1*415W@277V | |
| Lámparas LED regulables | 1*126W@120V 1*252W@240V 1*207W@277V | |
| Controladores LED regulables | 1*126W@120V 1*252W@240V 1*207W@277V |
