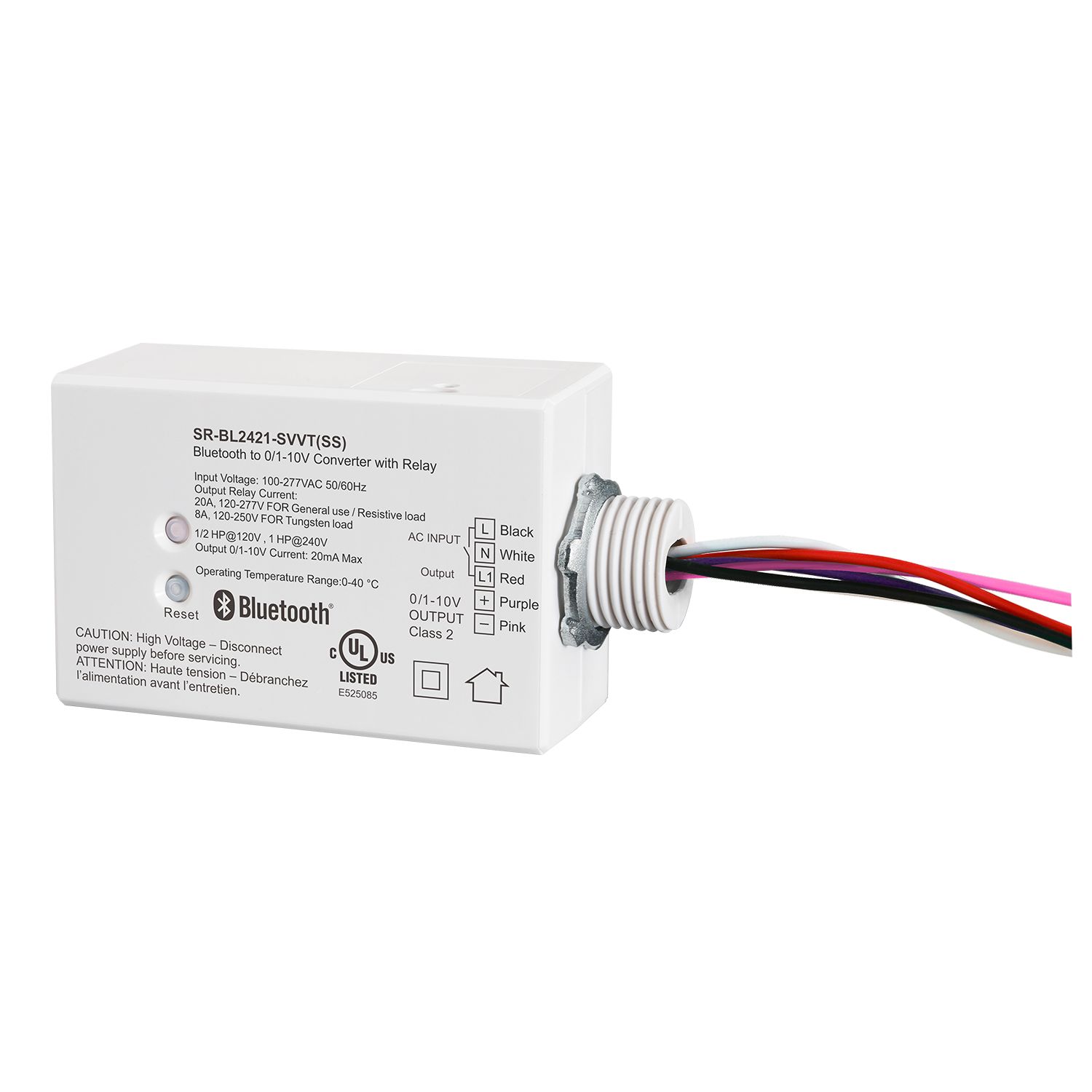

SR-BL2421-SVVT(SS) is a Bluetooth to 0–10V signal converter based on a Bluetooth mesh network. It features a built-in 20mA 0–10V output and a 20A relay for reliable control. The mesh network extends communication range by transmitting signals between neighboring devices, with a typical outdoor range of about 65 meters depending on installation. All devices on the 0–10V line can be broadcast controlled via SunSmart Commissioning tools. It supports Sunricher kinetic energy switches and EnOcean EWSSB and EWSDB switches. UL listed (PAZX) and UL 2043 plenum rated, it includes an IPEX antenna, IP20 rating, and a 5-year warranty.
|
Entrada
|
Potencia |
100-277 VCA |
|---|---|---|
| Señal |
Bluetooth |
|
|
Salida, 0/1-10 V |
Actual |
Máx. 20 mA |
| Salida, relé | Tensión de conmutación |
100-277 VCA |
| Actual |
Máx. 20 A |
|
| Enviroment | Temperatura de funcionamiento |
-20℃-+55℃ |
|
Humedad relativa |
8% a 80% |
|
| Otros | Talla |
82,5 × 55 × 31 mm |
| Clasificaciones de relevos | ||
| Tipo de carga | 100-277VAC Signal Converter with 20A Relay, SR-BL2421-SVVT(SS) | |
| AC Uso general | 20A@250/277VAC | |
| Resistivo | 18A@ 120VAC, 20A@277VAC | |
| Inductivo | 10A@240VAC | |
| Capacitivo | 8,5A@240VAC | |
| Tungsteno | 2000W, 8A@250VAC | |
| Motor | 0,5 CV@120VCA, 1 CV@240VCA | |
