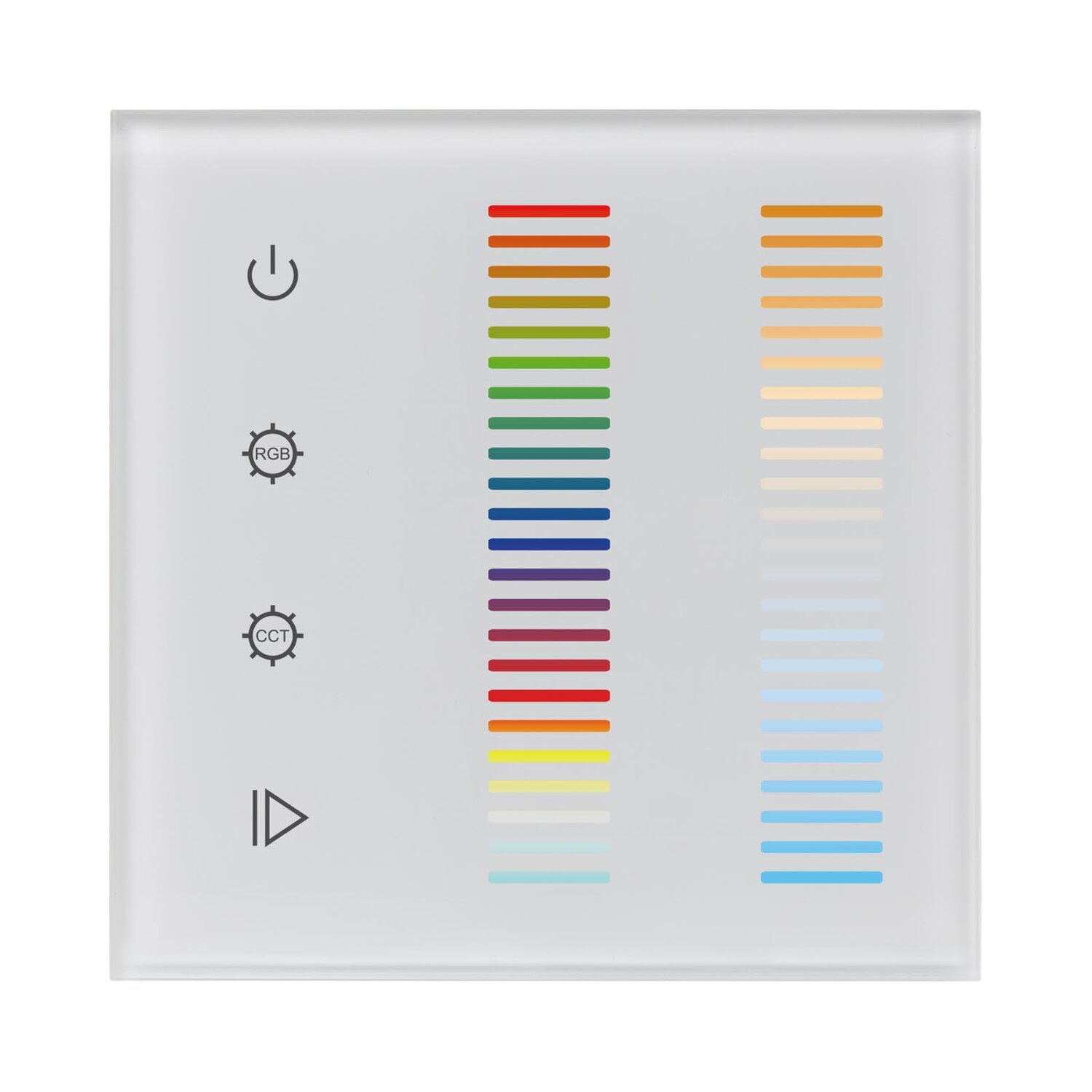

The RF RGB+Dual Color Wall Mounted Controller features a touch-sensitive glass interface available in white and black and is compatible with all universal series RF receivers operating at a radio frequency of 869.5/434MHz, allowing control of both RGB and CCT colors for one zone of an RF receiver.
| Versionen | DC-Version | AC-Version |
|---|---|---|
| Ausgangssignal | RF-Signal | RF-Signal |
| Stromversorgung | 12-24VDC | 100-240VAC |
| Stromverbrauch | < 20 mA | < 15 mA |
| Betriebstemperatur | 0-40℃ | 0-40℃ |
| Relative Luftfeuchtigkeit | 8% bis 80% | 8% bis 80% |
| Abmessungen | 86x86x29,1mm | 86x86x29,1mm |
