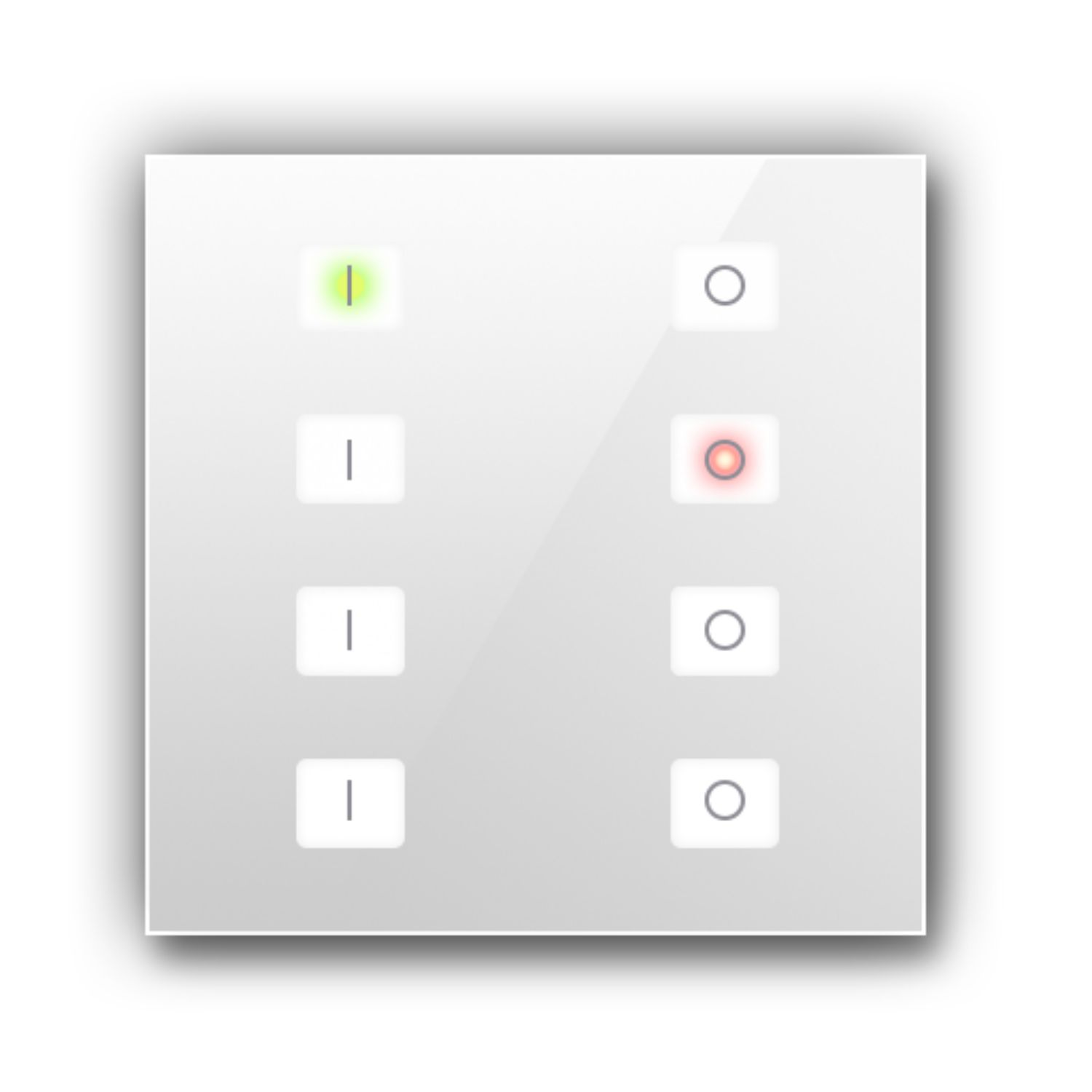

The KNX Touch Panel, available in 2-key, 4-key, 6-key, and 8-key versions, features an ultra-slim design with a tempered glass front plate offering high touch sensitivity, customizable labels printed on the included PVC paper, extensive operating functions including configurable bicolored LED indicators for each button, switching and dimming, scene recall and storage, roller blinds and shutter control, adjustable touch keys for one or two button operation, is powered by the KNX bus without requiring an extra power supply, and supports easy installation with a mounting bracket.
| 2-Tasten | 4-Tasten | 6-Tasten | 8-Tasten | |
| Anzahl der Tasten | 2 | 4 | 6 | 8 |
| Anzahl zweifarbiger LEDs | 2 | 4 | 6 | 8 |
| Orientierungs-LED | 1 | 1 | 1 | 1 |
| KNX-Busanschlussklemme | 0,8 mm Φ, einadrig | 0,8 mm Φ, einadrig | 0,8 mm Φ, einadrig | 0,8 mm Φ, einadrig |
| Stromversorgung | KNX-Bus | KNX-Bus | KNX-Bus | KNX-Bus |
| Leistungsaufnahme KNX-Bus typ. | <0.3W | <0.3W | <0.3W | <0.3W |
| Betriebstemperaturbereich | 0 bis +45 °C | 0 bis +45 °C | 0 bis +45 °C | 0 bis +45 °C |
| Wasserdicht Klasse | IP 20 | IP 20 | IP 20 | IP 20 |
| Abmessungen (B x H x T) | 86 x 86 x 21,4 mm | 86 x 86 x 21,4 mm | 86 x 86 x 21,4 mm | 86 × 86 × 21,4 mm |
