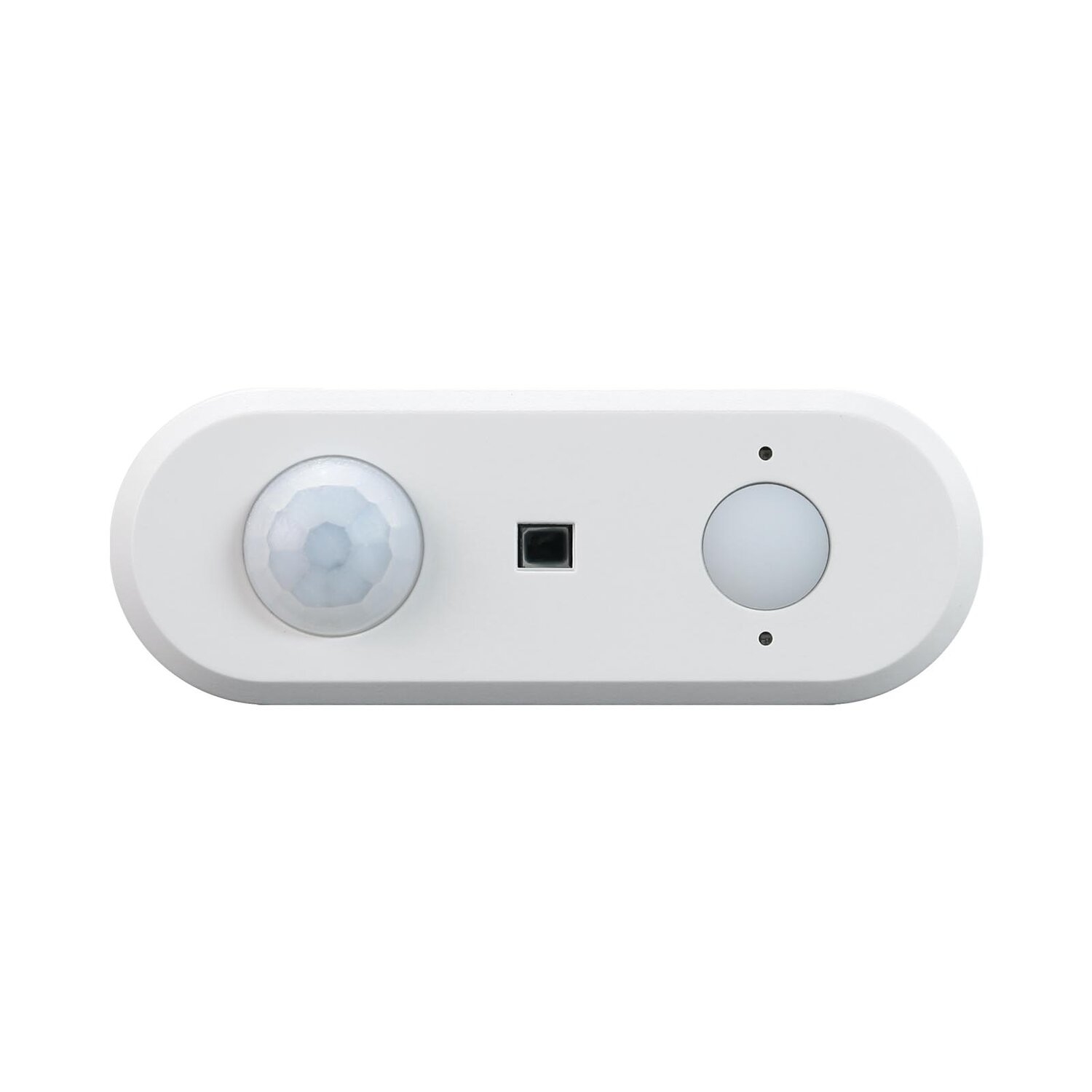

The 0-10V BLE Fixture-integrated MW Sensor Controller is a Bluetooth® mesh network-enabled device designed to control 0-10V signal microwave (MW) sensors. It features a built-in 20mA 0-10V signal output and utilizes a mesh network, providing an extended control range by transmitting received signals to neighboring devices. All devices on the 0-10V line can be broadcast controlled through a mobile application, and it supports kinetic energy switches and EnOcean switches such as EWSSB and EWSDB. In typical indoor environments, the wireless communication range is between 20m to 25m, with the actual range depending on field installation. The controller has a standby power consumption of less than 0.5W, meeting the latest ERP regulations, and offers a magnetic reset feature (by touching the top part of the sensor for 5 seconds) along with manual reset options. Equipped with an on-board antenna, the device comes with a 5-year warranty.
| Eingabe | Strom | 12-24VDC |
|---|---|---|
| Eingabe | Signal | Bluetooth |
| Ausgang, 0/1-10V | Aktuell | Max. 20mA |
| Kontrolle | Dimm-Kurve | Logarithmisch |
| Kontrolle | Dimmverfahren | PWM |
| Umwelt | Betriebstemperatur | 0℃~+45℃ |
| Umwelt | Relative Luftfeuchtigkeit | 8% bis 80% |
| Andere | Größe | Siehe Abmessungen |
