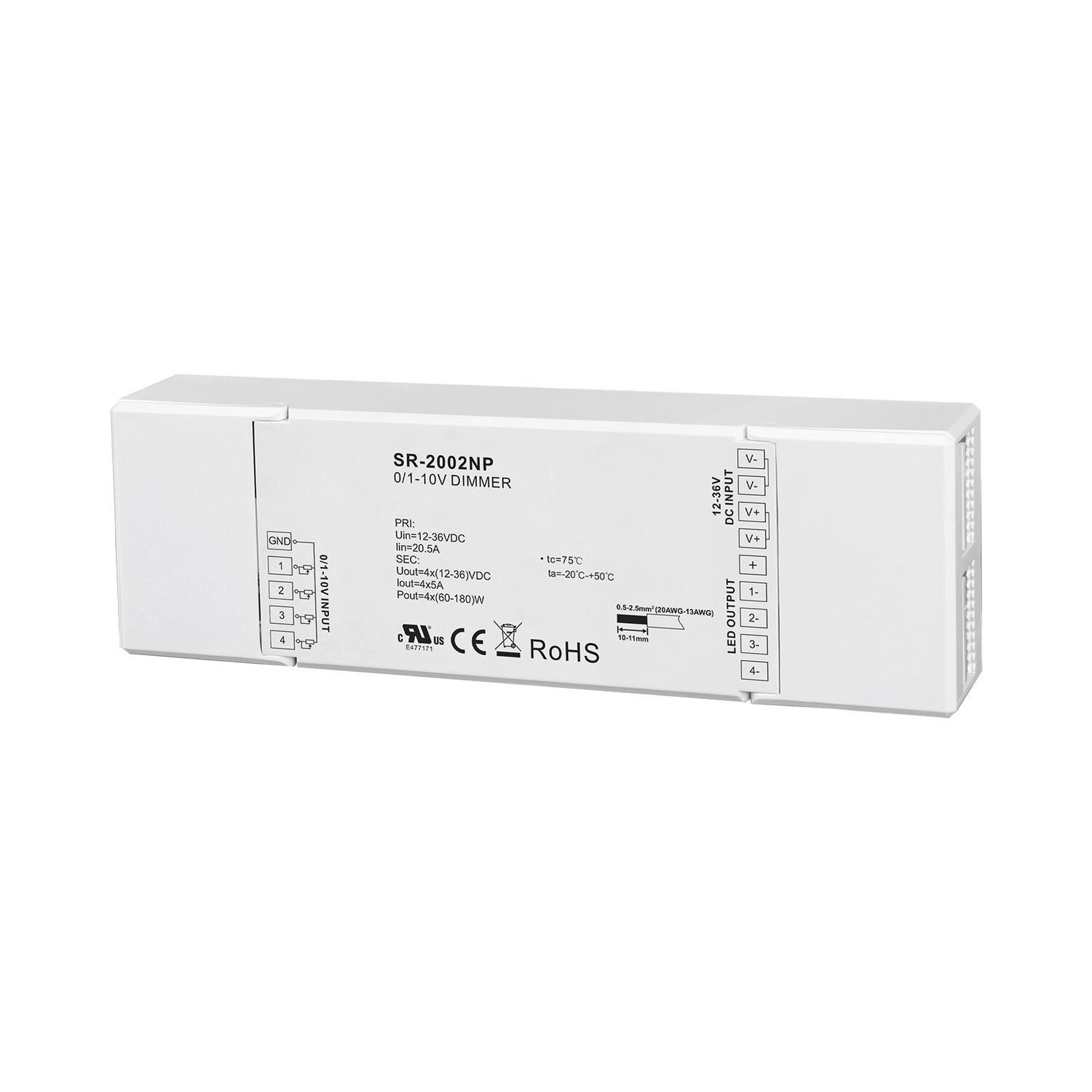

The 0/1-10V LED Dimmer is an analog dimming driver with 4 channels of 0/1-10V signal input and 4 channels of PWM output. It accepts a standard 0/1-10V dim signal input and offers a 0-100% dimming range through a logarithmic characteristic, providing optimal visual comfort.
With 256 levels of grayscale, the dimming is smooth and flicker-free. The dimmer can be paired with a power repeater to expand output without limit and can work with a 0/1-10V regulator or dimmer for analog dimming, ensuring a smooth dimming curve that directly corresponds to the voltage curve.
| Nein | 1 | 2 | 3 |
|---|---|---|---|
| Eingangsspannung | 12-36VDC | 12-36VDC | 12-36VDC |
| Ausgang Strom | 4x5A | 4x350mA | 4x700mA |
| Ausgangsleistung | 4x(60-180)W | 4x(4,2-12,6)W | 4x(8,4-25,2)W |
| Stecker Nennstrom | Max. 10A | Max. 10A | Max. 10A |
| Drahtgröße | 0,32-3,3 mm² (12-22AWG) |
0,32-3,3 mm² (12-22AWG) |
0,32-3,3 mm² (12-22AWG) |
| Bemerkungen | Konstante Spannung | Konstanter Strom | Konstanter Strom |
| Größe (LxBxH) | 170×53,4x28mm | 170×53,4x28mm | 170×53,4x28mm |
