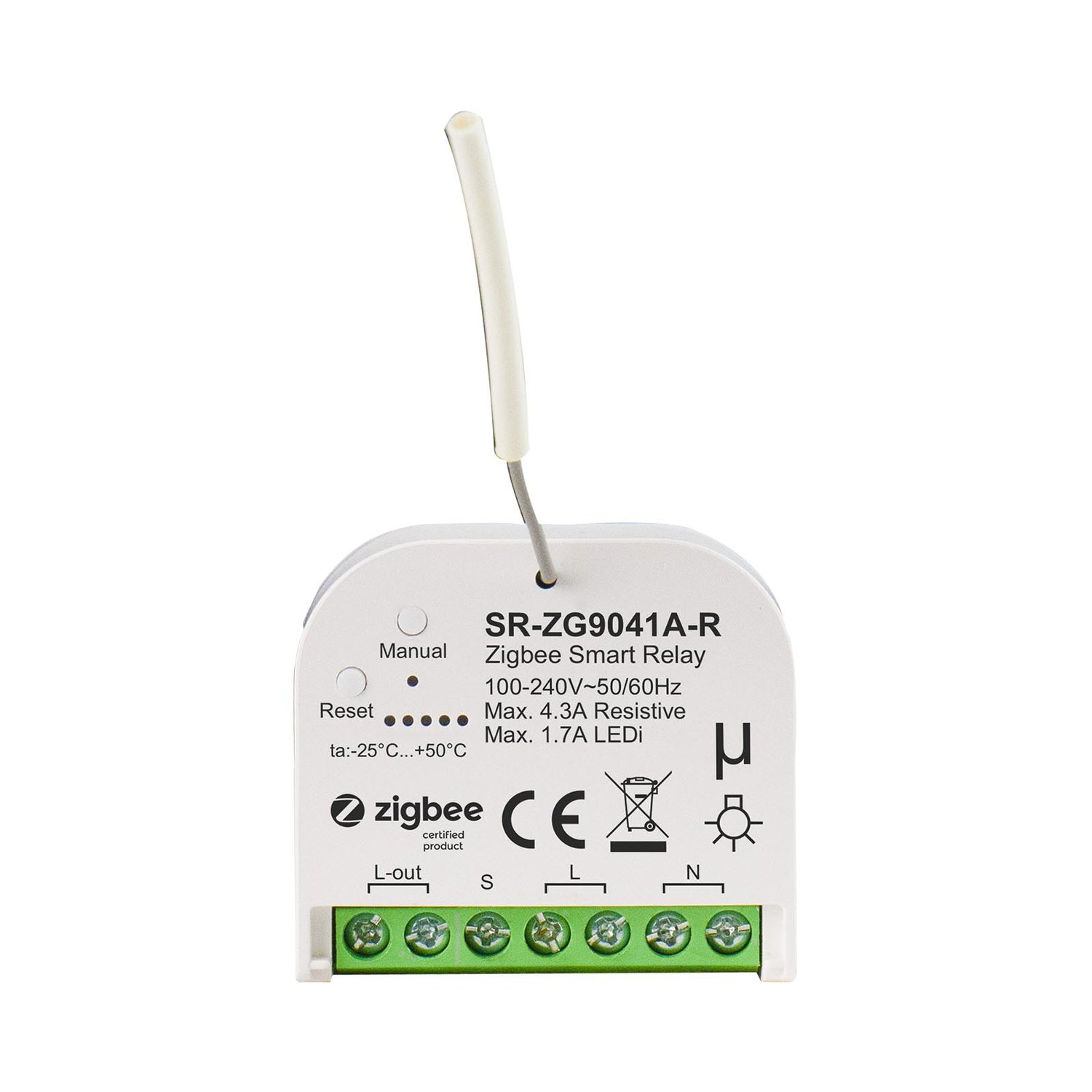

The ZigBee Smart Relay Module is an advanced in-wall relay module based on the latest ZigBee 3.0 protocol, designed to support resistive, capacitive, and inductive loads. It features a single-channel output with a maximum load of 4.3A and provides both input and output with screw terminals for safe and reliable connections. This module enables control of the ON/OFF function for connected light sources and supports Touchlink commissioning. It also allows for self-forming ZigBee networks without the need for a coordinator and can add other devices to the network. With ZigBee green power support, it can bind up to 20 ZigBee green power remotes. Additionally, the module offers active power and energy metering functionality and is compatible with universal ZigBee gateway products. Its mini size allows for easy installation into a standard wall box.
| Input Voltage | 100-240Vac |
|---|---|
| Output Voltage | 100-240Vac |
| Max. Load Current | Resistive load: max. 4.3A, Capacitive/lnductive load: max. 1.7A |
| Standby Power Consumption | <=0.5W |
| Size(LxWxH) | 42x38x16mm |
