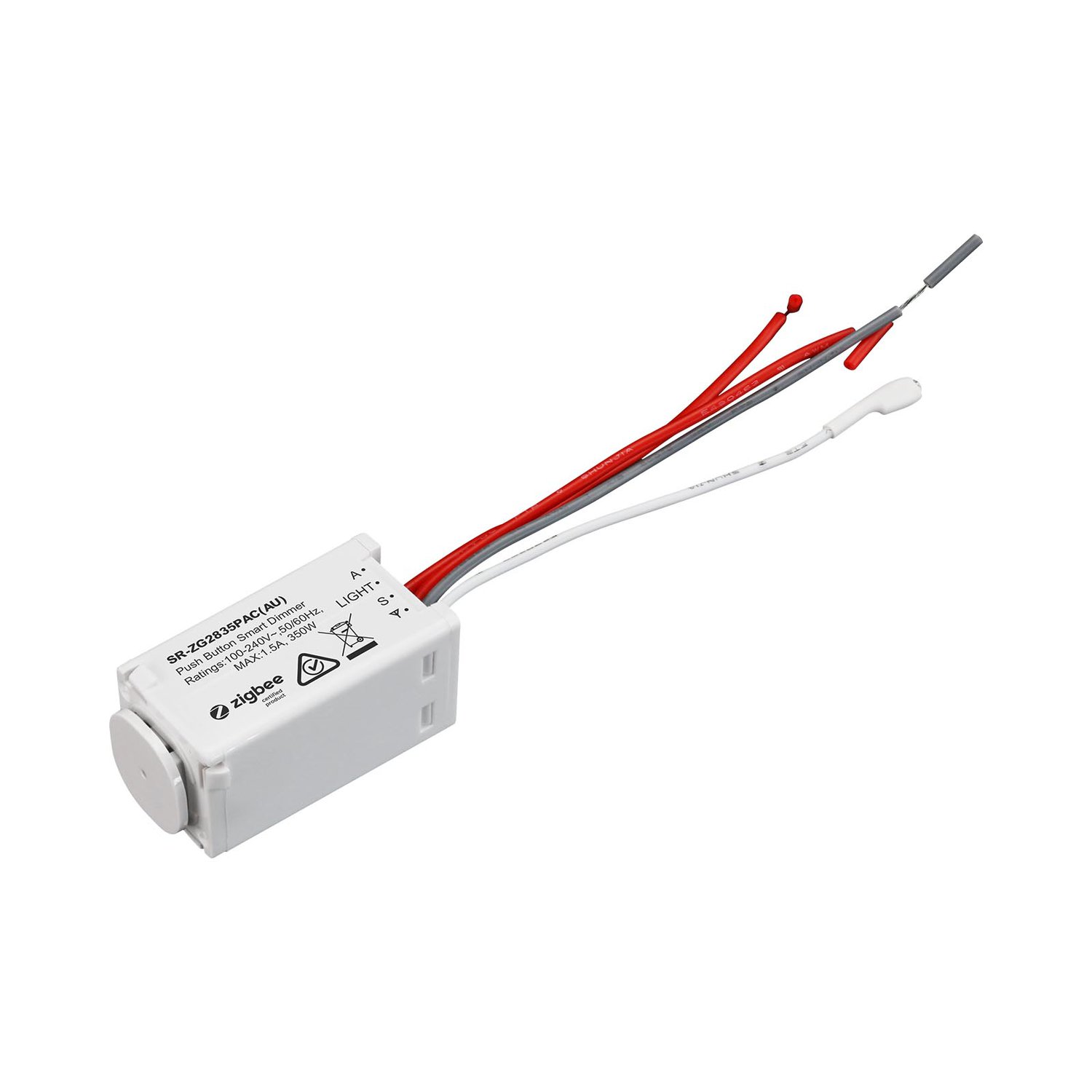

ZigBee Push Button Smart Dimmer

SR-ZG2835PAC(AU)
Product description
  • ZigBee push button smart dimmer based on latest ZigBee 3.0 protocol
  • Neutral free, simple wiring
  • Supports resistive loads, capacitive loads or inductive loads
  • Enables to set minimum brightness and startup brightness
  • 1 channel output, up to 350W
  • Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
  • Enables to control ON/OFF and light intensity of connected light source
  • ZigBee end device that supports Touchlink commissioning
  • Can be controlled by zigbee gateway, zigbee remote, local button
  • Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
  • Supports self-forming zigbee network without coordinator and add other devices to the network
  • Supports find and bind mode to bind a ZigBee remote
  • Supports zigbee green power and can bind max. 20 zigbee green power switches
  • Compatible with universal ZigBee gateway products
  • With push switch input, can be controlled by universal AC push switches
  • Standard size, can be compatible with existing Australia wall switch plate
  • Radio Frequency: 2.4GHz
  • Waterproof grade: IP20
SR ZG2835PACAU 01 1
SR ZG2835PACAU 01 1


This ZigBee 3.0 push button smart dimmer supports neutral-free installation and a wide range of load types up to 350W. It offers both leading and trailing edge dimming, adjustable minimum and startup brightness, and local or remote control. Features include Touchlink pairing, ZigBee Green Power support (up to 20 switches), and compatibility with universal ZigBee gateways. Designed for Australian wall plates with 2.4GHz operation and IP20 protection.

Input Voltage 100-240VAC
Input Frequency 50/60Hz
Output Voltage 100-240VAC
Output Current 1.5A max
Radio Frequency 2.4GHz
Size(LxWxH) 45x21x21mm
Ambient Temperature -20℃ ~ +50℃
