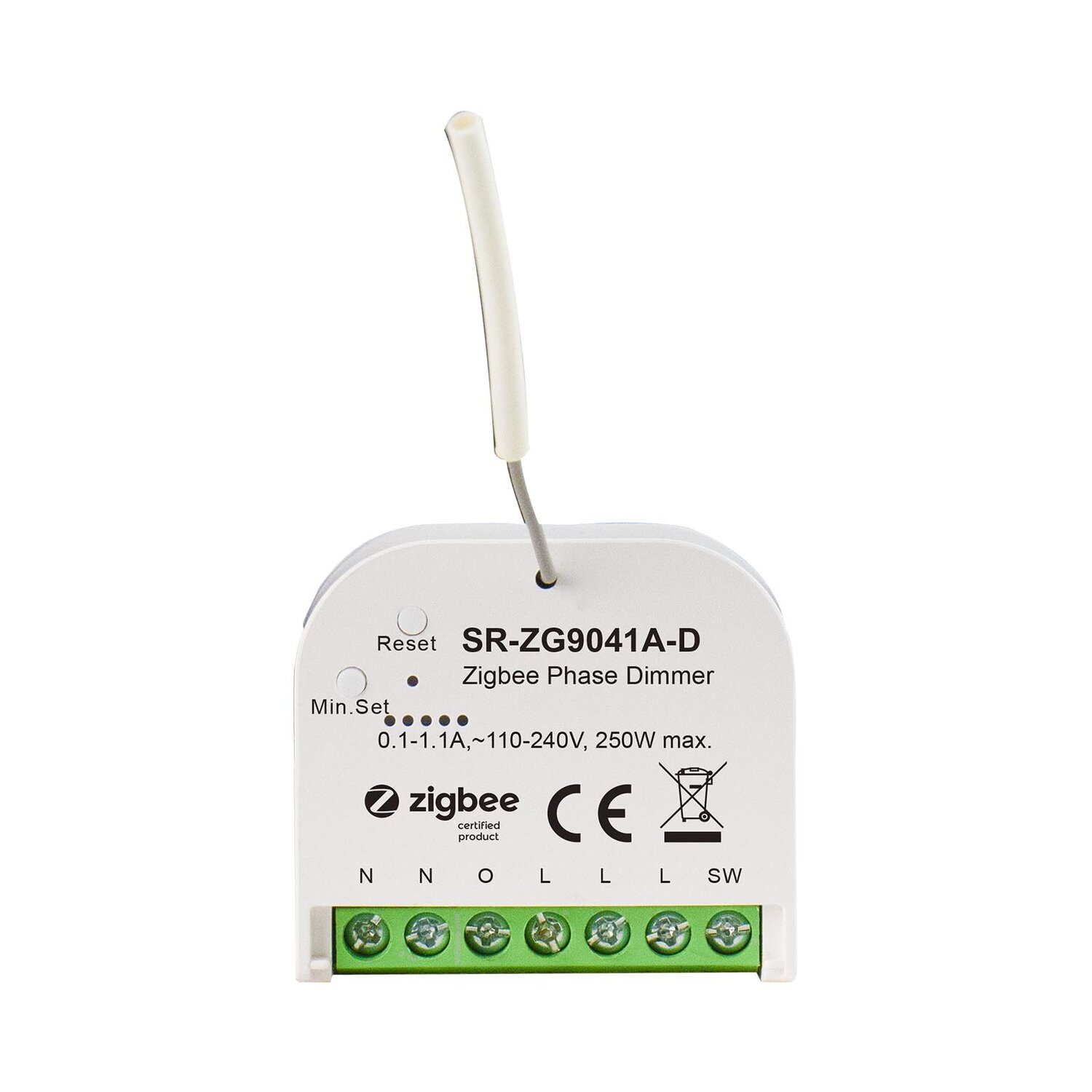

ZigBee Micro Smart Dimmer

SR-ZG9041A-D

Product description

Zigbee AC phase cut dimmer based on latest Zigbee 3.0 protocol 100-240VAC Wide Input and Output Voltage
Supports resistive loads, capacitive loads or inductive loads 1 Channel Output, Up to 250W
Input and Output with Screw Terminals, Safe and Reliable
Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
Enables to control ON/OFF and light intensity of connected light source
Zigbee end device that supports Touchlink commissioning
Can directly pair to a compatible Zigbee remote via Touchlink without coordinator
Compatible with universal Zigbee gateway products
Supports power metering
Mini Size, Easy to be Installed into a standard 86*86mm wall box
Main Features:
Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
Advanced microprocessor control
Implemented algorithm of smart light source detection
Active power and energy metering functionality Soft start function
Innovative minimum dimming level and startup brightness setting function
Works with various types of switches-momentary, toggle, three-way, etc.
Active element: semiconductor electronic switch
To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
The Bypass is an extension unit

The ZigBee Micro Smart Dimmer is a Zigbee AC phase cut dimmer based on the Zigbee 3.0 protocol, supporting 100–240VAC input and output and compatible with resistive, capacitive, or inductive loads up to 250W on a single channel. It features advanced microprocessor control, smart light source detection, active power and energy metering, soft start, and adjustable minimum dimming level and startup brightness. The device supports both leading and trailing edge dimming (preset by factory), enables ON/OFF and brightness control, and works with various switch types including momentary, toggle, and three-way. It operates with or without a neutral lead, supports Touchlink commissioning and pairing with Zigbee remotes without a coordinator, is compatible with Zigbee gateways, and is designed for installation in standard 86×86mm wall boxes; a Bypass unit is available as an extension.

Input Voltage	100-240VAC
Output Voltage	100-240VAC
Output Current	0.1-1.1A
Size(LxWxH)	42x38x16mm
